Component Locations

NOTE: For component locations, refer to appropriate illustration. See Fig 1 -Fig 3 .

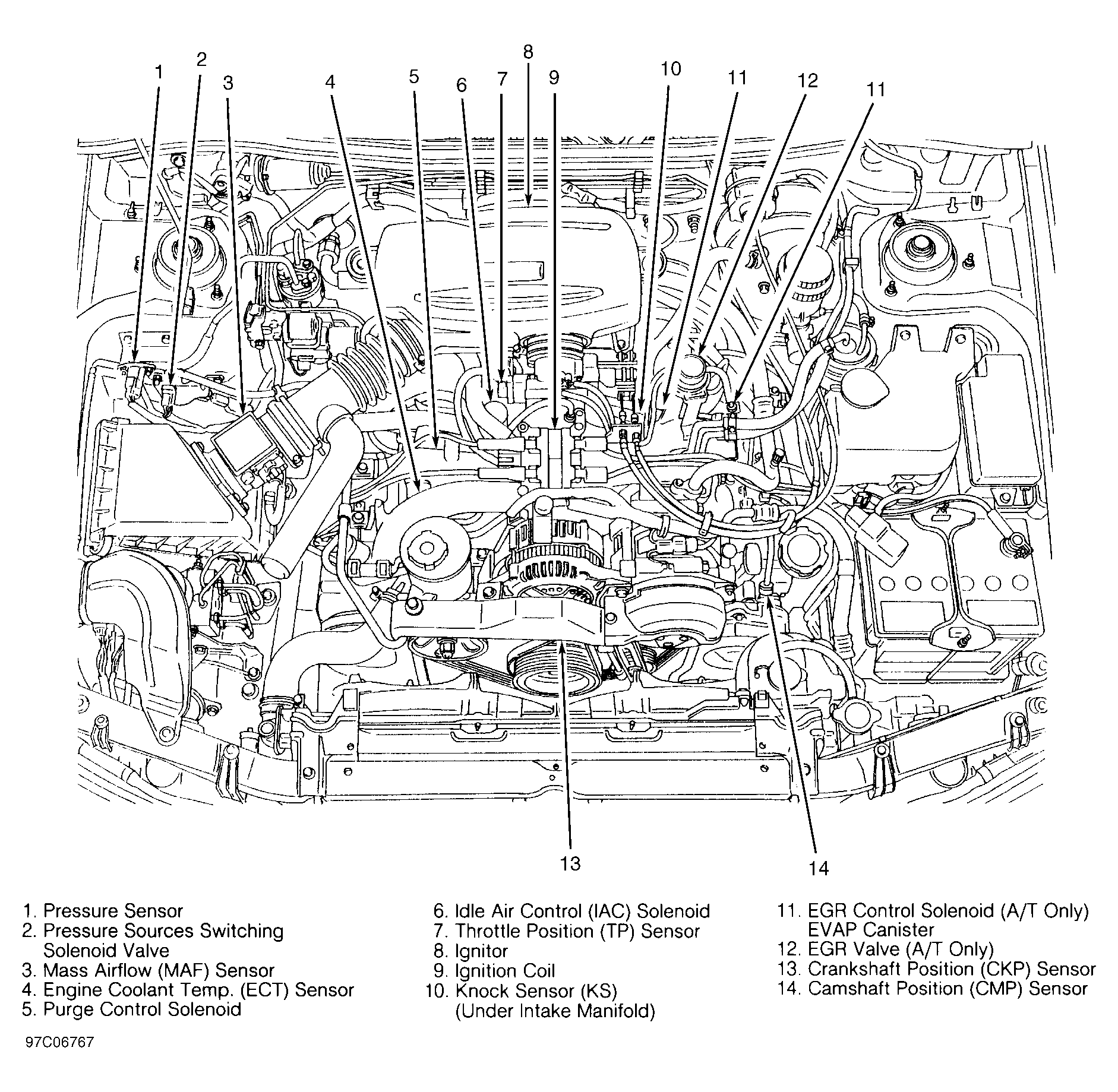

Fig 1: Component Locations (Forester, Impreza 2.2L, Impreza 2.5L, Legacy 2.2L & Outback Sport 2.2L - Federal Vehicles)

Courtesy of SUBARU OF AMERICA, INC.

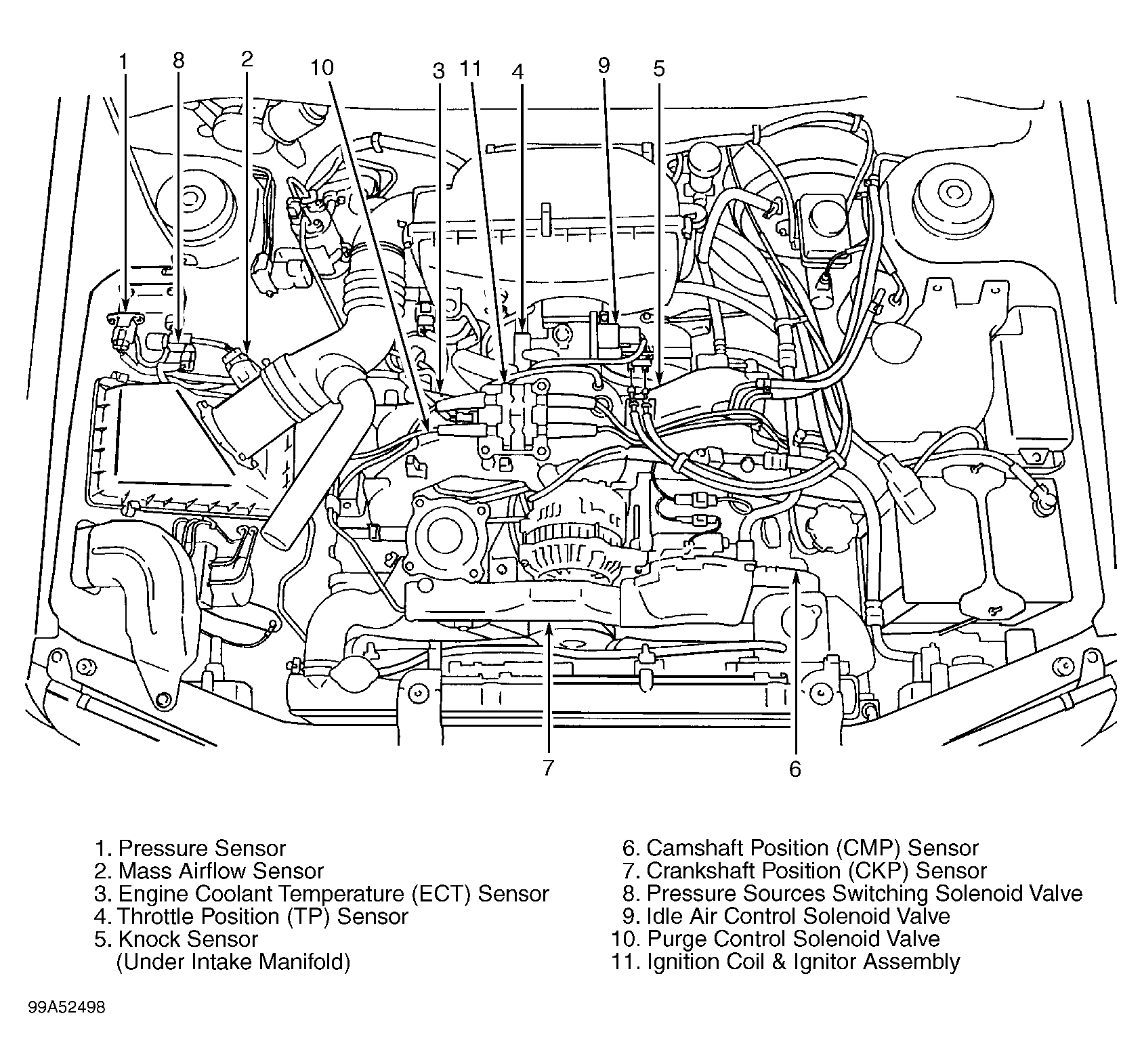

Fig 2: Component Locations (Impreza 2.2L, Legacy 2.2L & Outback Sport 2.2L - California Vehicles)

Courtesy of SUBARU OF AMERICA, INC.

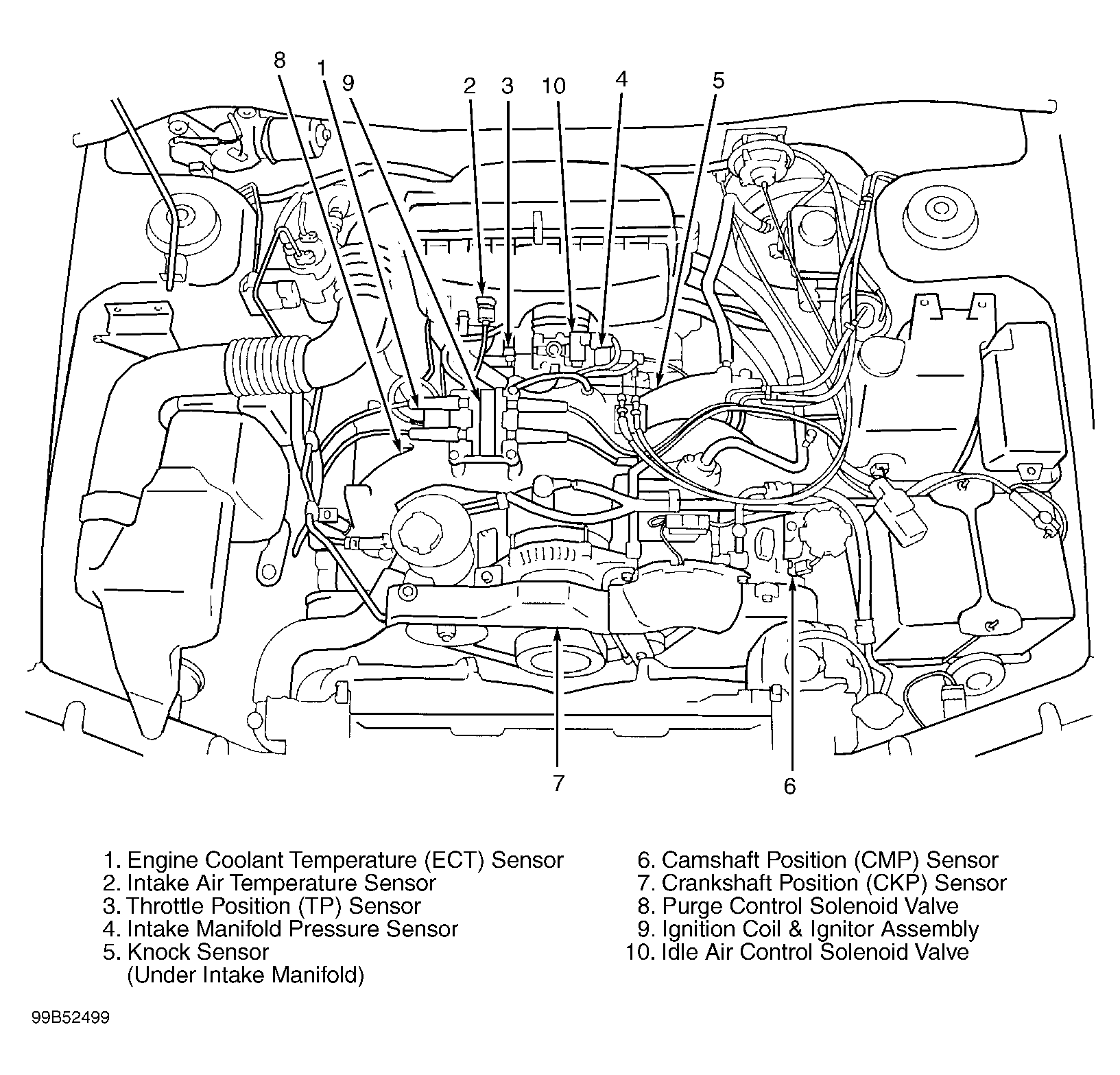

Fig 3: Component Locations (Legacy 2.5L & Outback 2.5L)

Courtesy of SUBARU OF AMERICA, INC.
