Component Locations

NOTE: For component locations, refer to appropriate illustration. See Fig 1 , Fig 2 and Fig 3 .

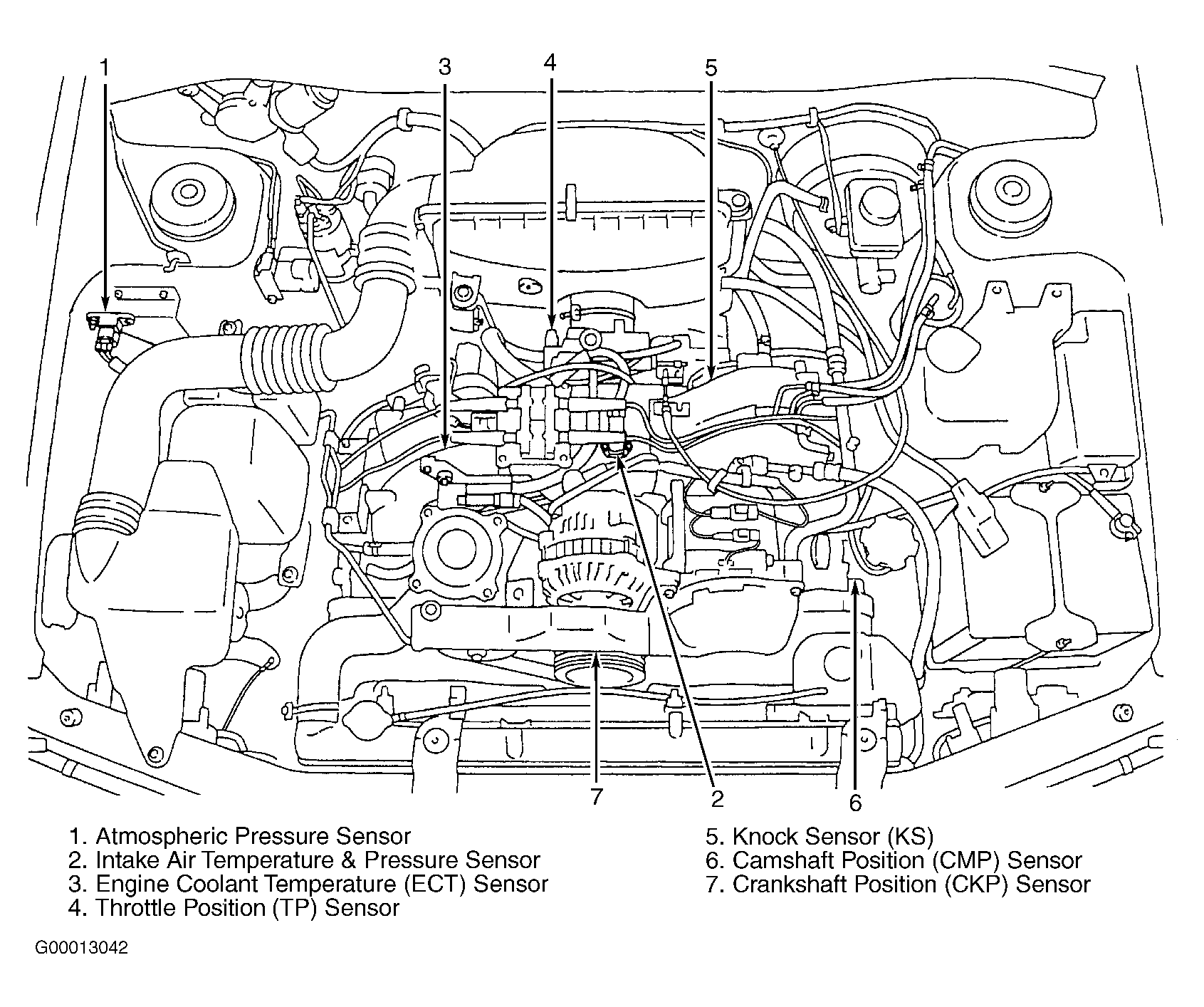

Fig 1: Component Locations (Forester & Impreza 2.5L)

Courtesy of SUBARU OF AMERICA, INC.

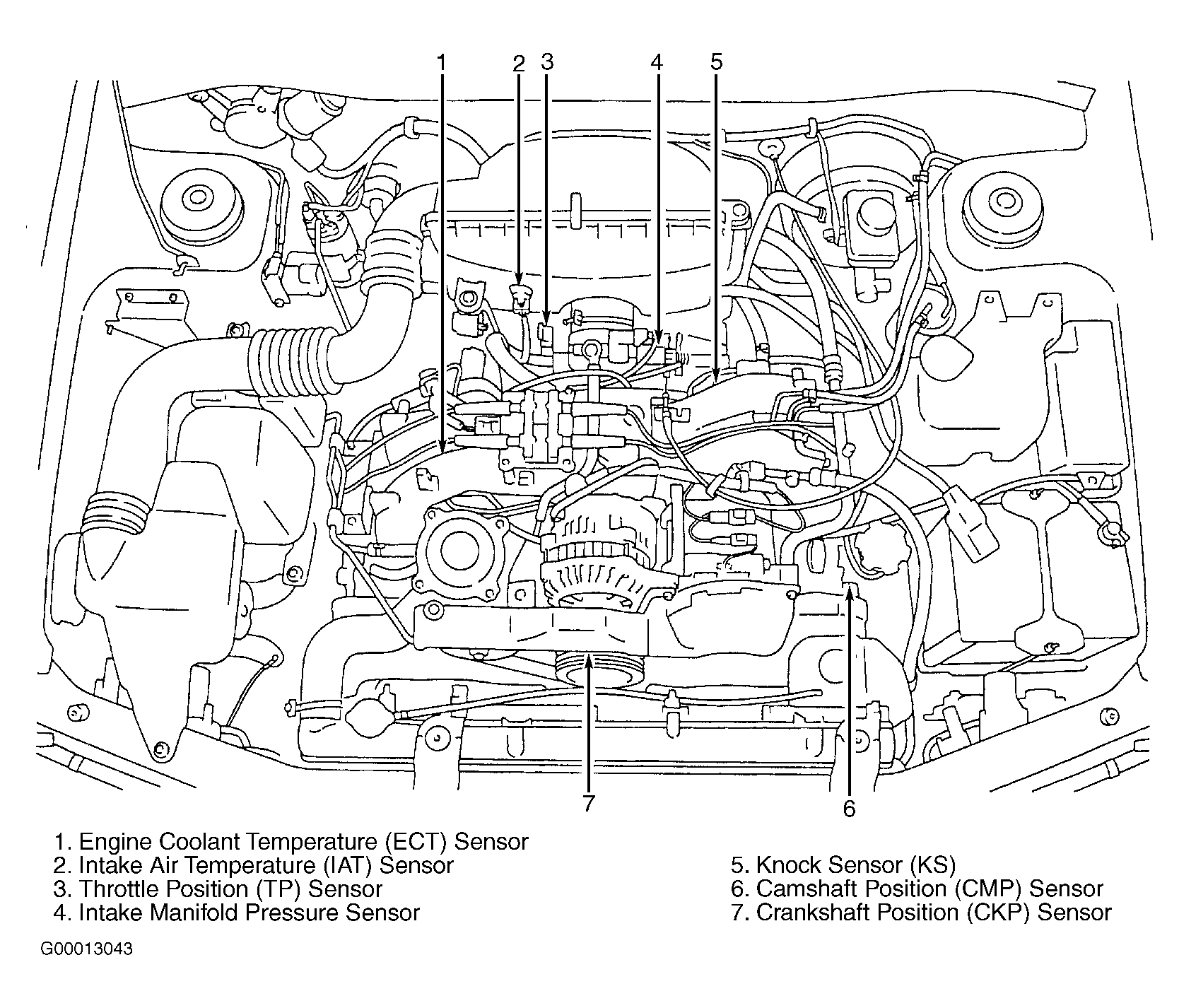

Fig 2: Component Locations (Impreza 2.2L)

Courtesy of SUBARU OF AMERICA, INC.

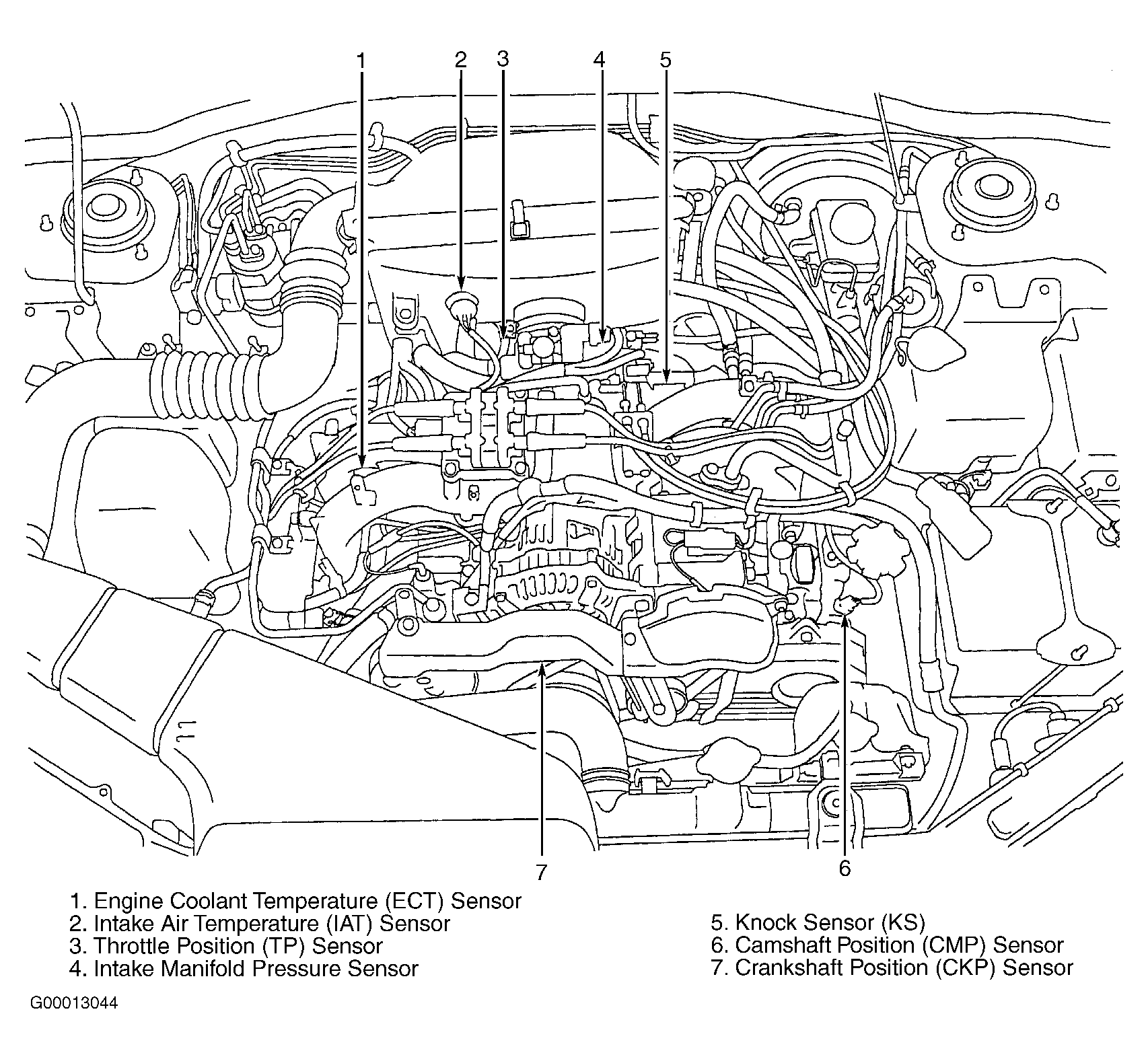

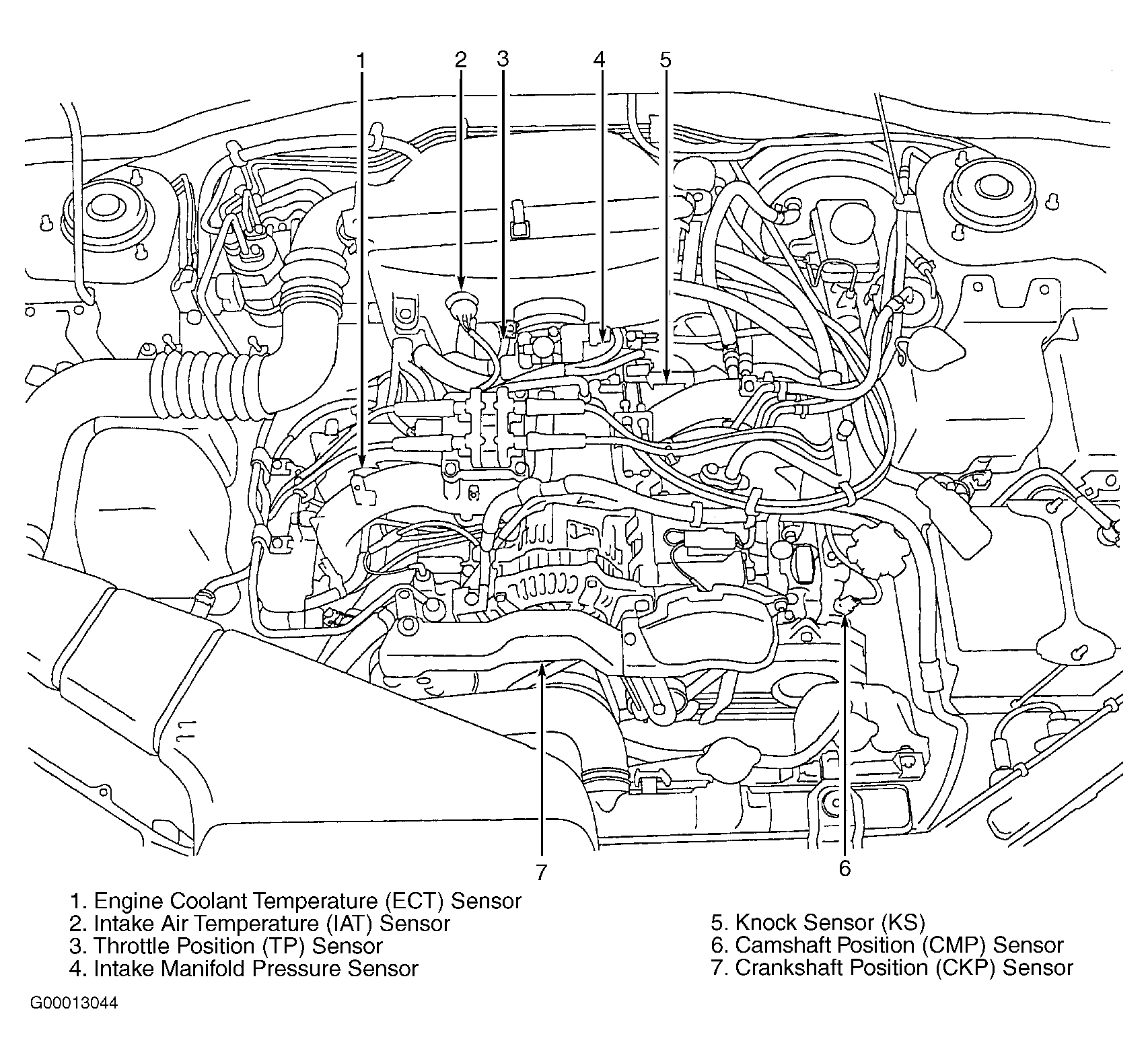

Fig 3: Component Locations (Legacy 2.5L)

Courtesy of SUBARU OF AMERICA, INC.
