Instrument Panel Assembly: Installation
Install in the reverse order of removal.
CAUTION:
- Be careful not to snag the harness.
- Make sure to connect harness connector.
- Take care not to scratch the instrument panel and related parts.
NOTE:

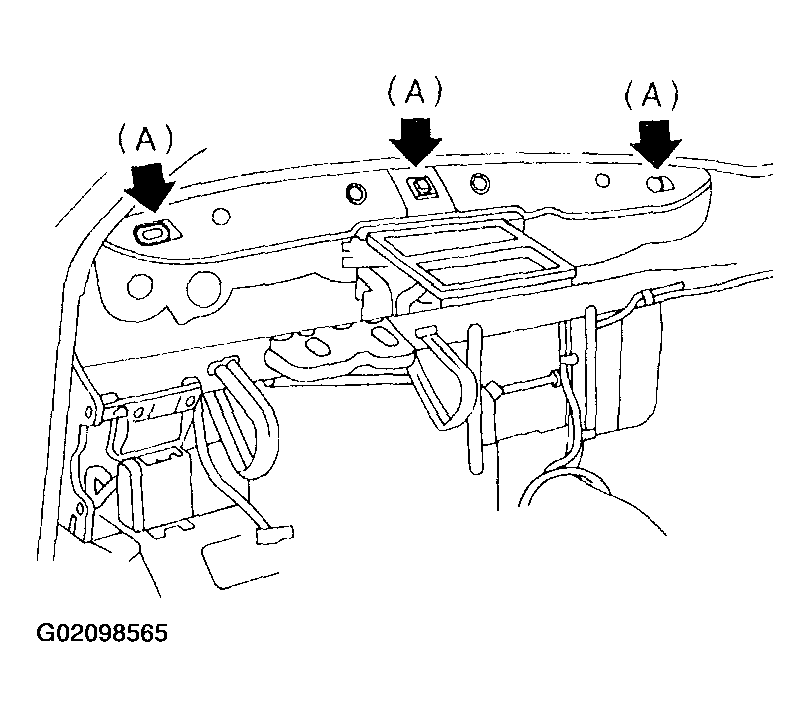

When setting the instrument panel into position, push the three hooks into grommet (A) on the body panel.
