Mud Guard: Removal

  1. Jack-up the vehicle.
  2. Loosen screws and clips to remove mud guard.

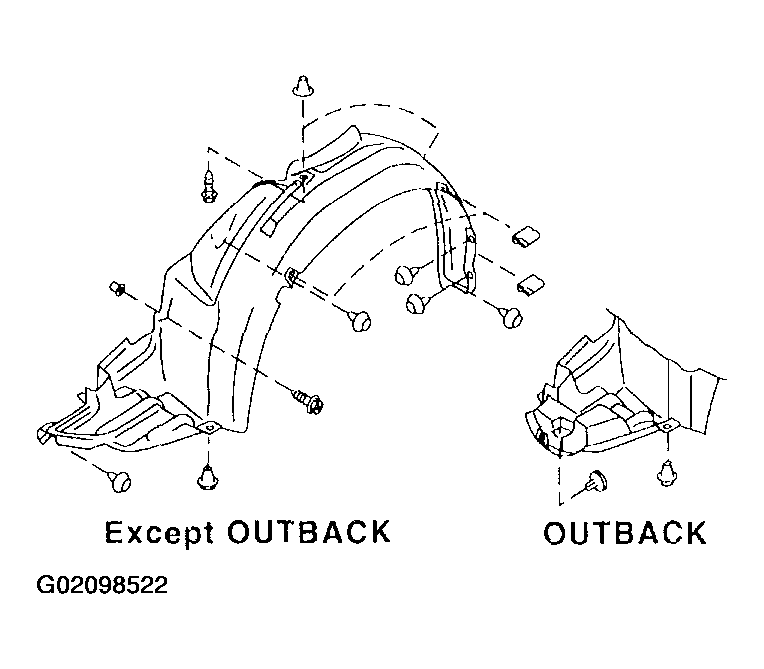

    Fig 1: Removing Mud Guard
    G02098522
