Exterior/Interior Trim: Protector: Removal

Except OUTBACK:

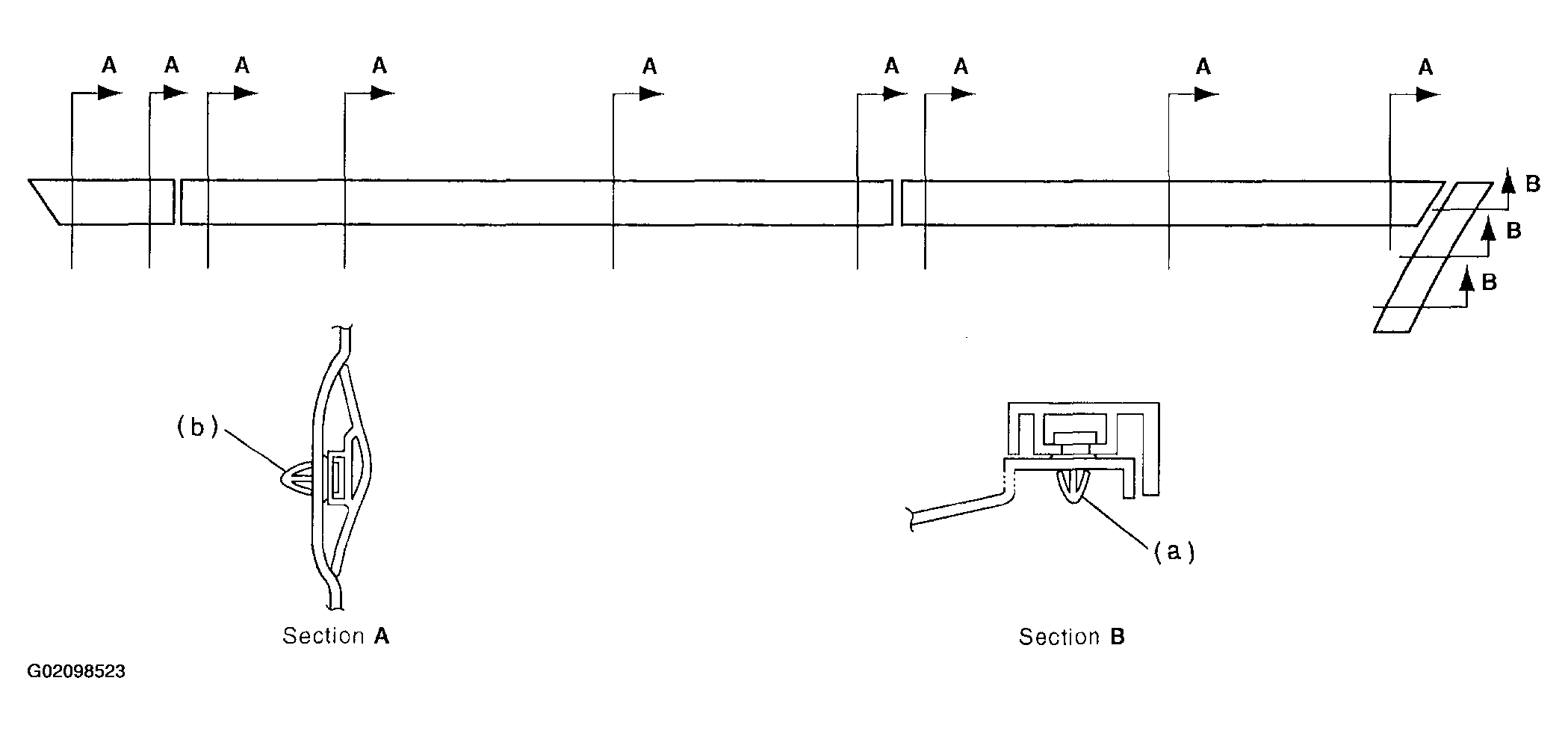

Fig 1: Identifying Side & Door Protector Components (Except OUTBACK)

NOTE: Paying attention to the position of clip (b).

OUTBACK:

Remove clip (a) and bolt (b).

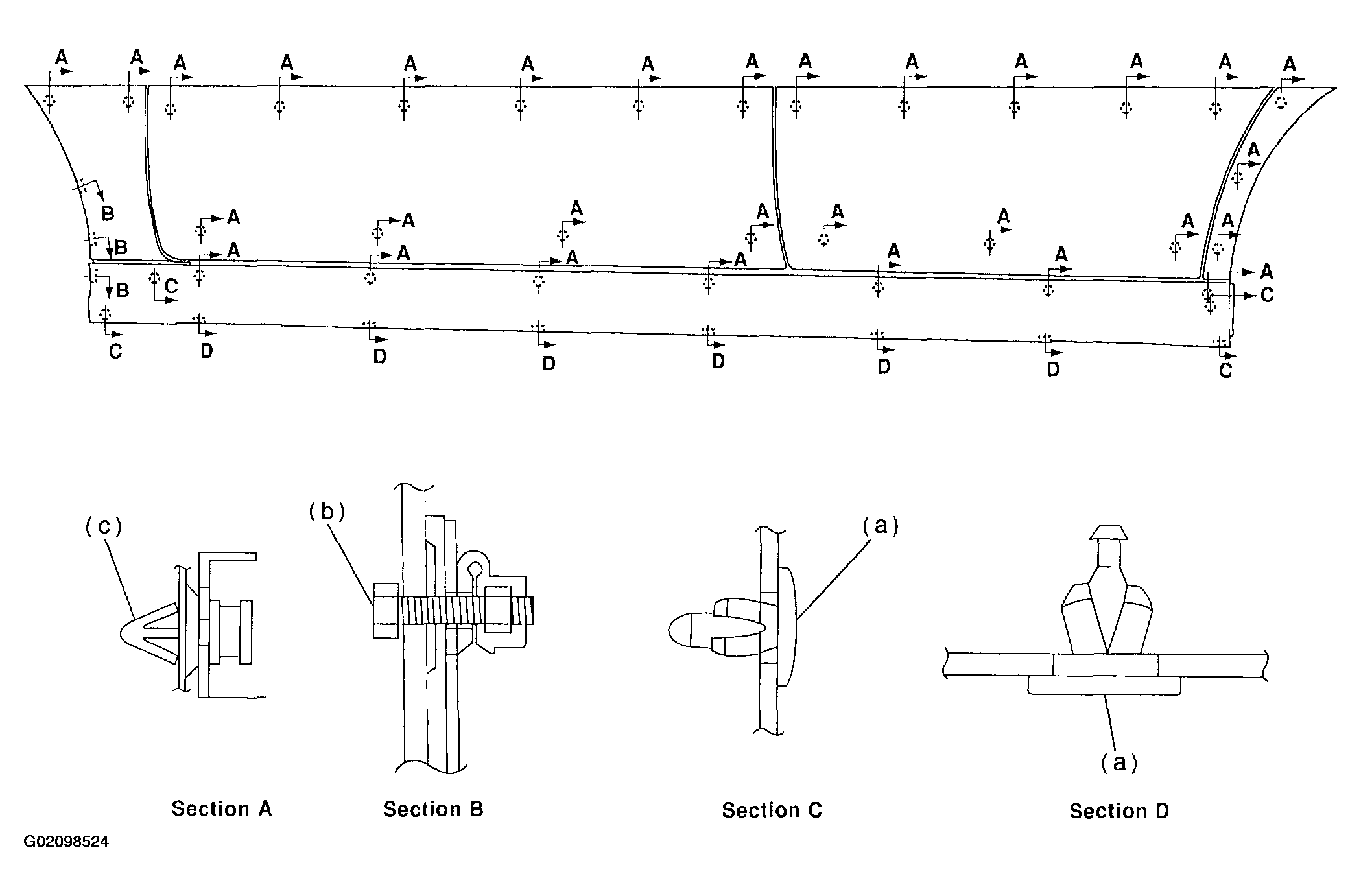

Fig 2: Removing Clip (a) & Bolt (b)

NOTE: Paying attention to the position of clip (c).
Attach masking tape to outer perimeter of side protector. (If original side protector is re-installed, tape the entire protector.)

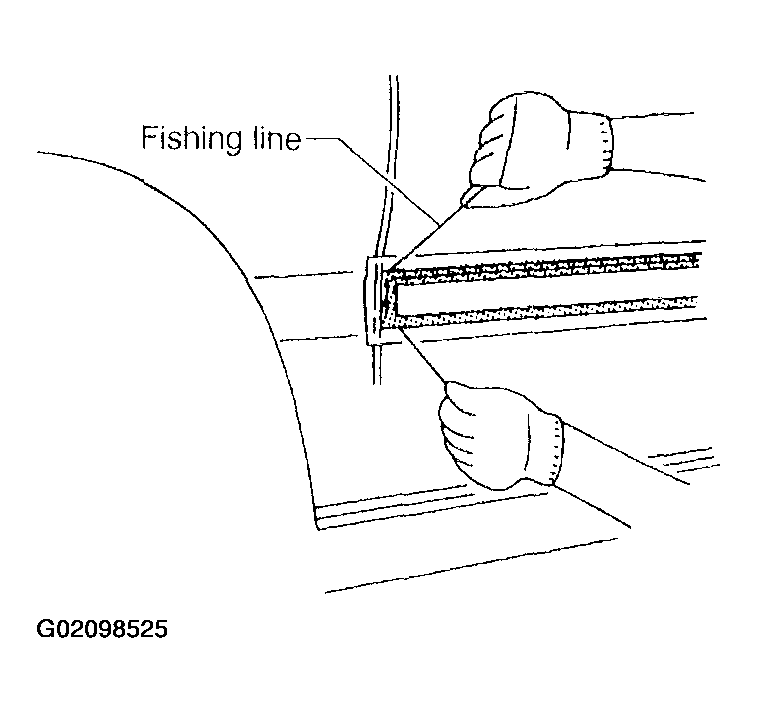

Insert fishing line [0.8 mm (0.31 in) dia.] between side protector and vehicle body. Cut (pull the line) through two-sided tape along side protector on the body. Using a puller, remove clips from vehicle body while pulling side protector towards yourself as required.

Fig 3: Removing Side & Rear Door Protector

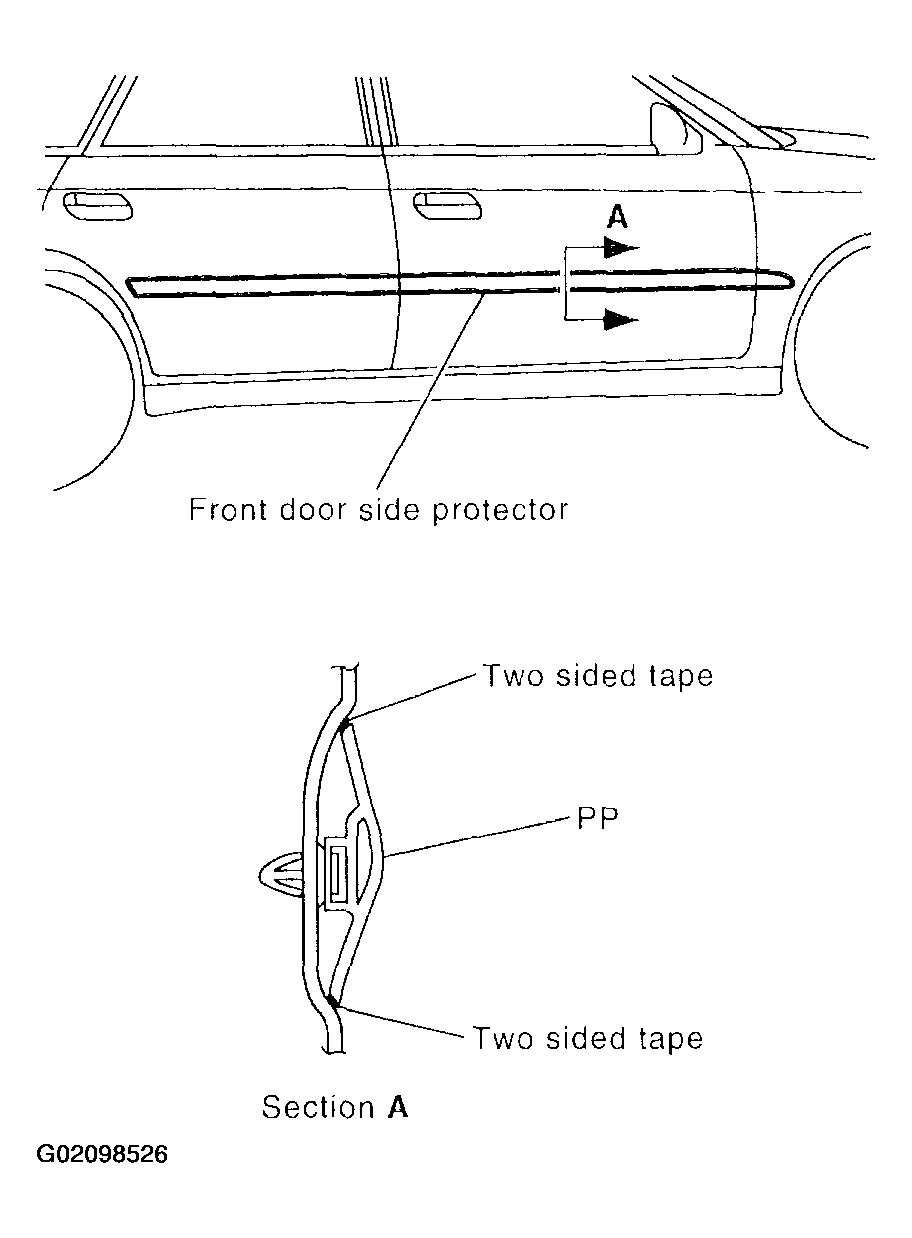

Fig 4: Removing Front Door Protector
NOTE:
- To increase adhesive remover strength, leave two-sided tape on body and side protector.
- If two-sided tape is too thick, use a putty knife to cut it thin so that adhesive remover is ready for use.
- If two-sided tape is hard to remove, heat to approximately 40°C (104°F).
Apply an even coat of adhesive remover to the two-sided tape.
Recommended adhesive remover:
1. SUMITOMO 3M4000 or equivalent.
CAUTION: Do not apply adhesive remover to lacquer base coated body panels.

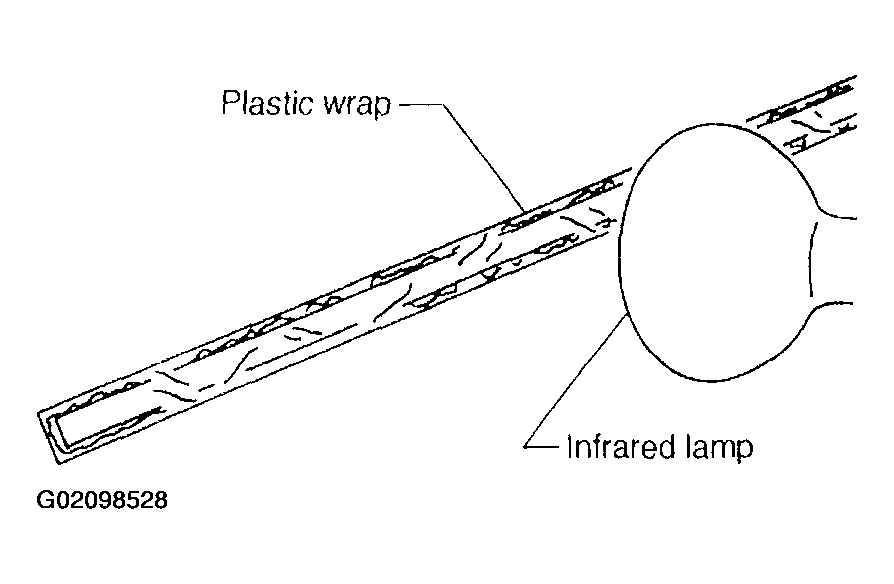

Attach plastic wrap to adhesive remover coated areas and heat to 40 to 60°C (104 to MOT) for 5 to 10 minutes using an infrared lamp.
CAUTION: Do not overheat until plastic wrap is somewhat white.

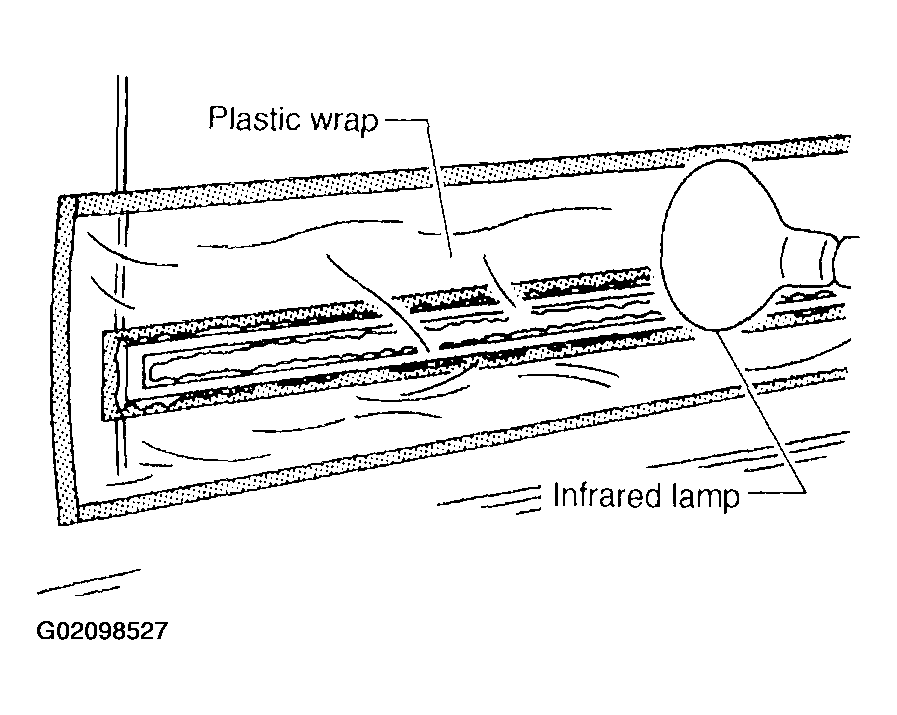

Fig 5: Attaching Plastic Wrap To Adhesive Remover
Using a plastic spatula, remove traces of two-sided tape from body panel.
Remove masking tape and clean traces of two-sided tape using a cloth dampened with white gasoline.
Similarly, clean traces of adhesive from two-sided tape on side protector.
CAUTION: Make sure side protector is clean and free of adhesive remover. Clean if necessary.

Fig 6: Cleaning Two-Sided Tape On Side Protector
