Upper Inner Trim: Installation

Install in the reverse order of removal.

CAUTION: Be sure to securely hook pawls of inner trim panel to body flange.
NOTE: When installing center pillar upper trim and front pillar upper trim, be sure to set front mole as shown in figure.

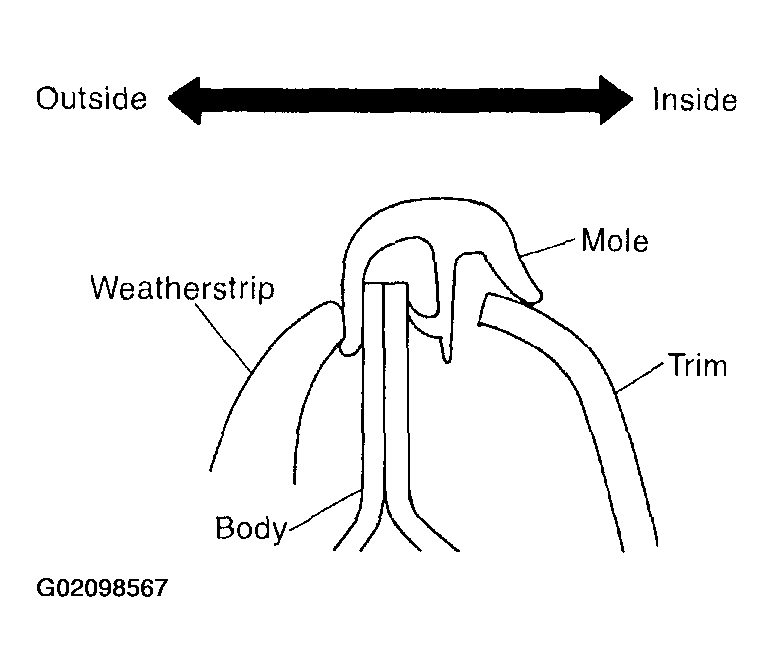

Fig 1: Installing Center Pillar Upper Trim (C)
G02098567
