Sequence Control

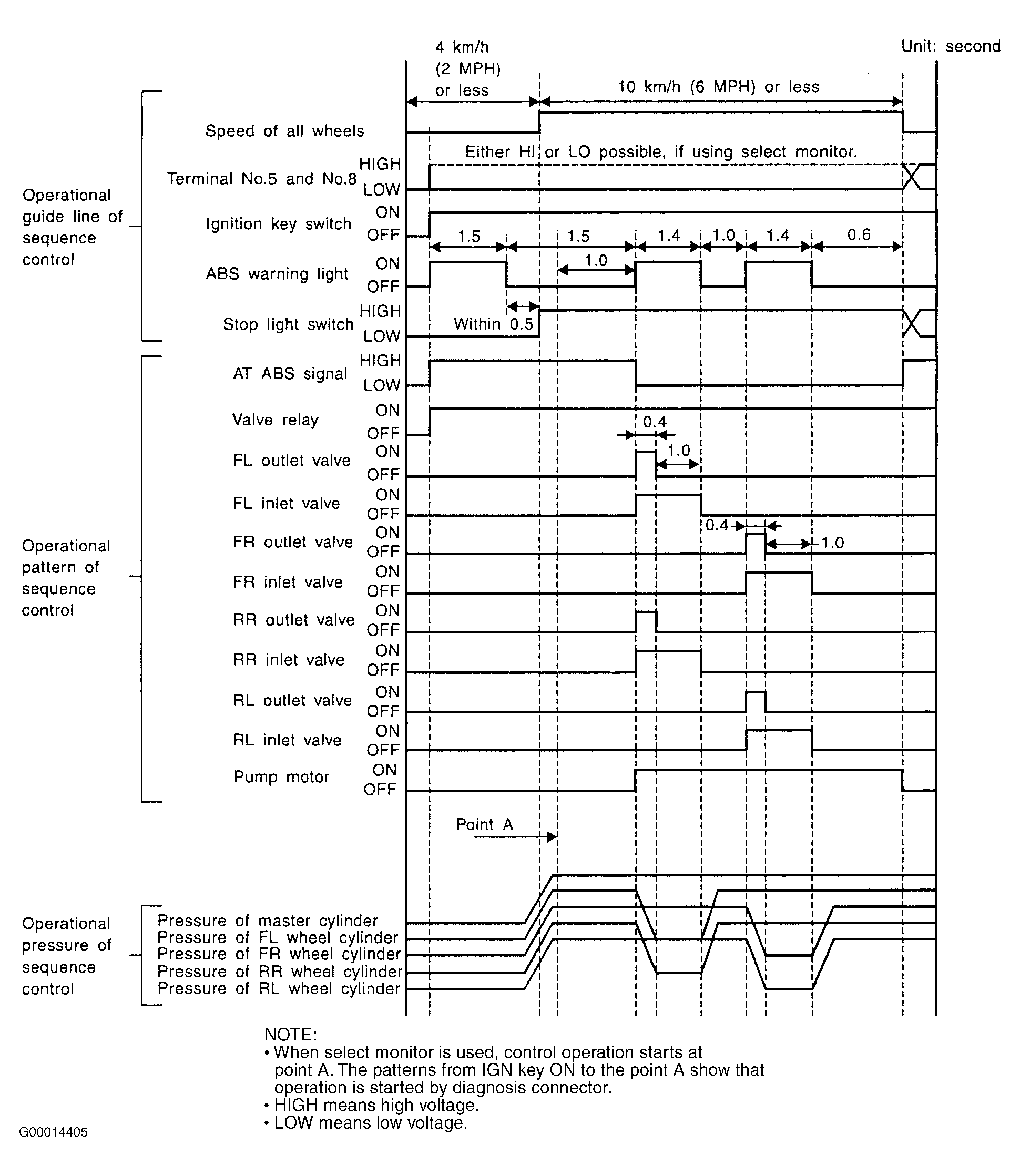

- Remove front caliper bleeder screws. Connect brake pressure gauges to calipers and bleed system. Connect diagnostic terminals to diagnosis connector terminals No. 5 and No. 8. Set front or rear wheels on brake tester with vehicle in Neutral. Operate brake tester according to manufacturer's instructions. Set wheel speed at 2 MPH (4 km/h) or less. Turn ignition on. ABS warning light should illuminate for 1.5 seconds. Within .5 second after ABS warning light goes out, depress brake pedal. Hydraulic unit should now begin to operate. See Fig 1.
- Observe pressure gauges and note readings. Hydraulic unit should perform left front decompression, holding and then compression. Hydraulic unit should perform right front decompression, holding and then compression. Turn ignition off. Remove pressure gauges. Perform steps 1) and 2) for rear brake calipers. If pressure readings are not as specified, replace hydraulic unit. See HYDRAULIC UNIT PRESSURE SPECIFICATIONS table.
HYDRAULIC UNIT PRESSURE SPECIFICATIONS
| Application | psi (kg/cm2 ) |
|---|---|
| Initial Value | 498 (35) |
| Decompression | 71 (5) Or Less |
| Compression | 498 (35) Or More |
