Electrical Component Locator: Grounds
GROUNDS
| Component | Component Location |
|---|---|

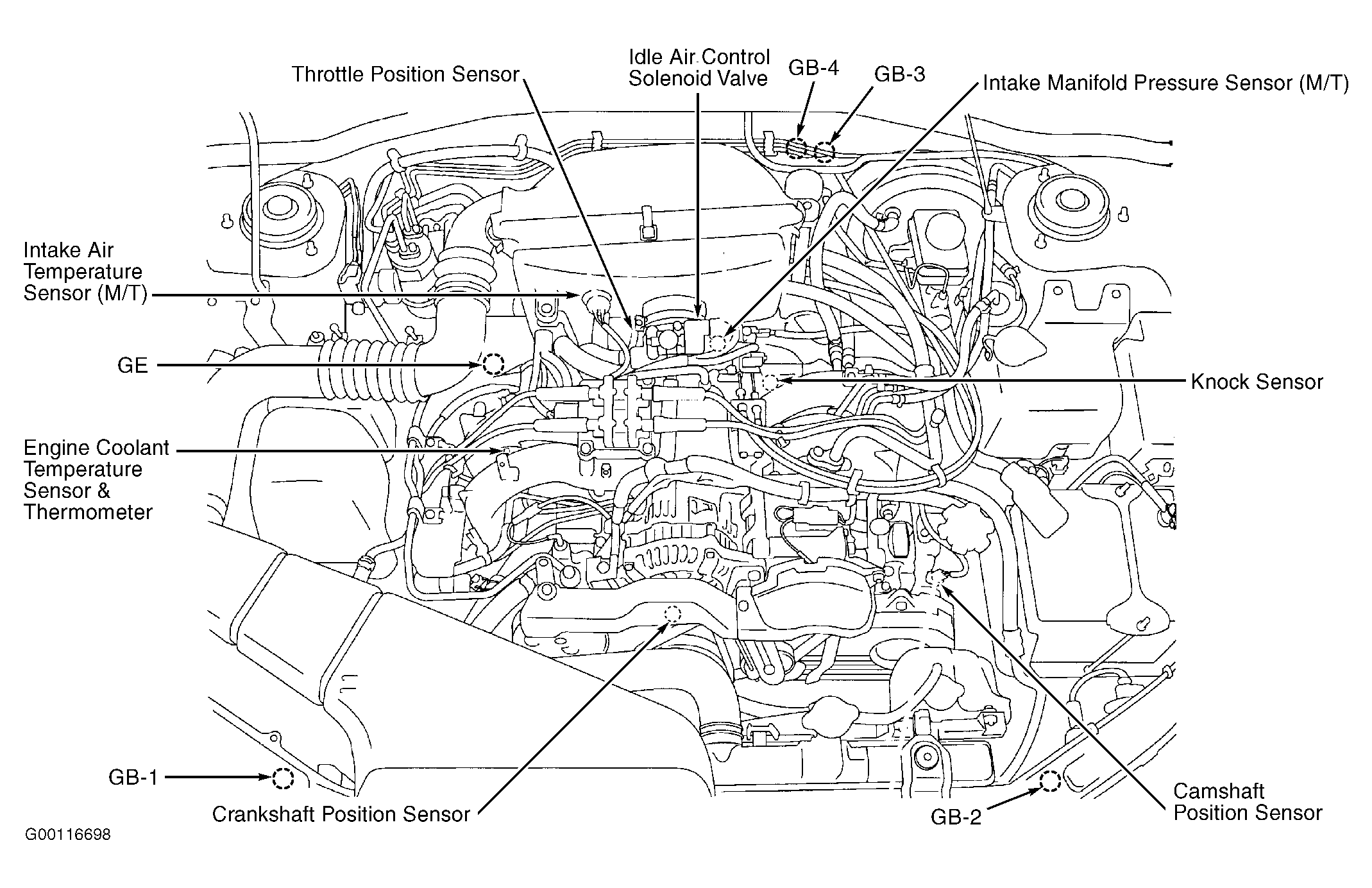

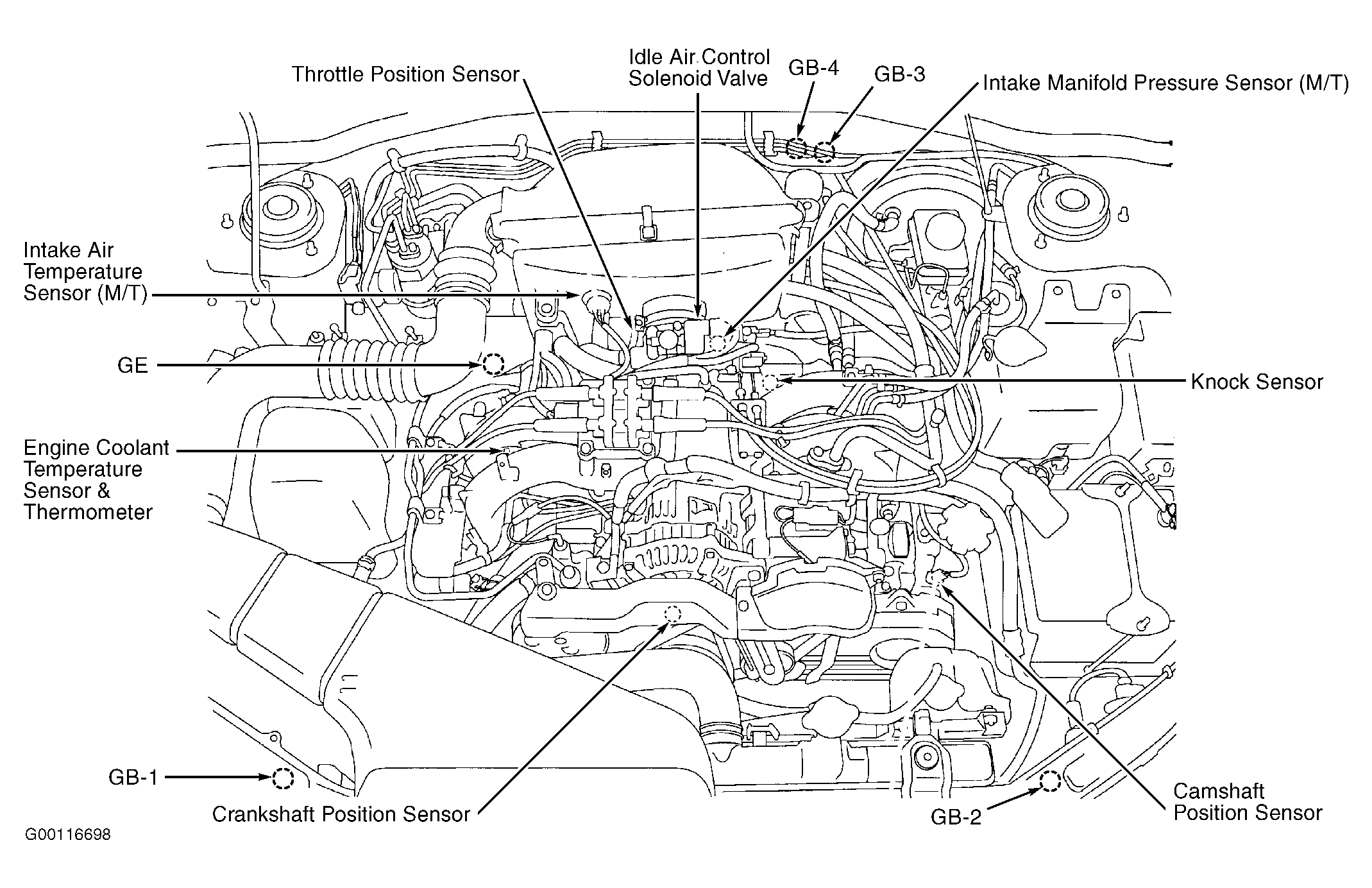

| GB-1 | Right front of engine compartment. See Figure. |
| GB-2 | Left front of engine compartment. See Figure. |
| GB-3 | At rear of engine compartment. See Figure. |
| GB-4 | At rear of engine compartment. See Figure. |

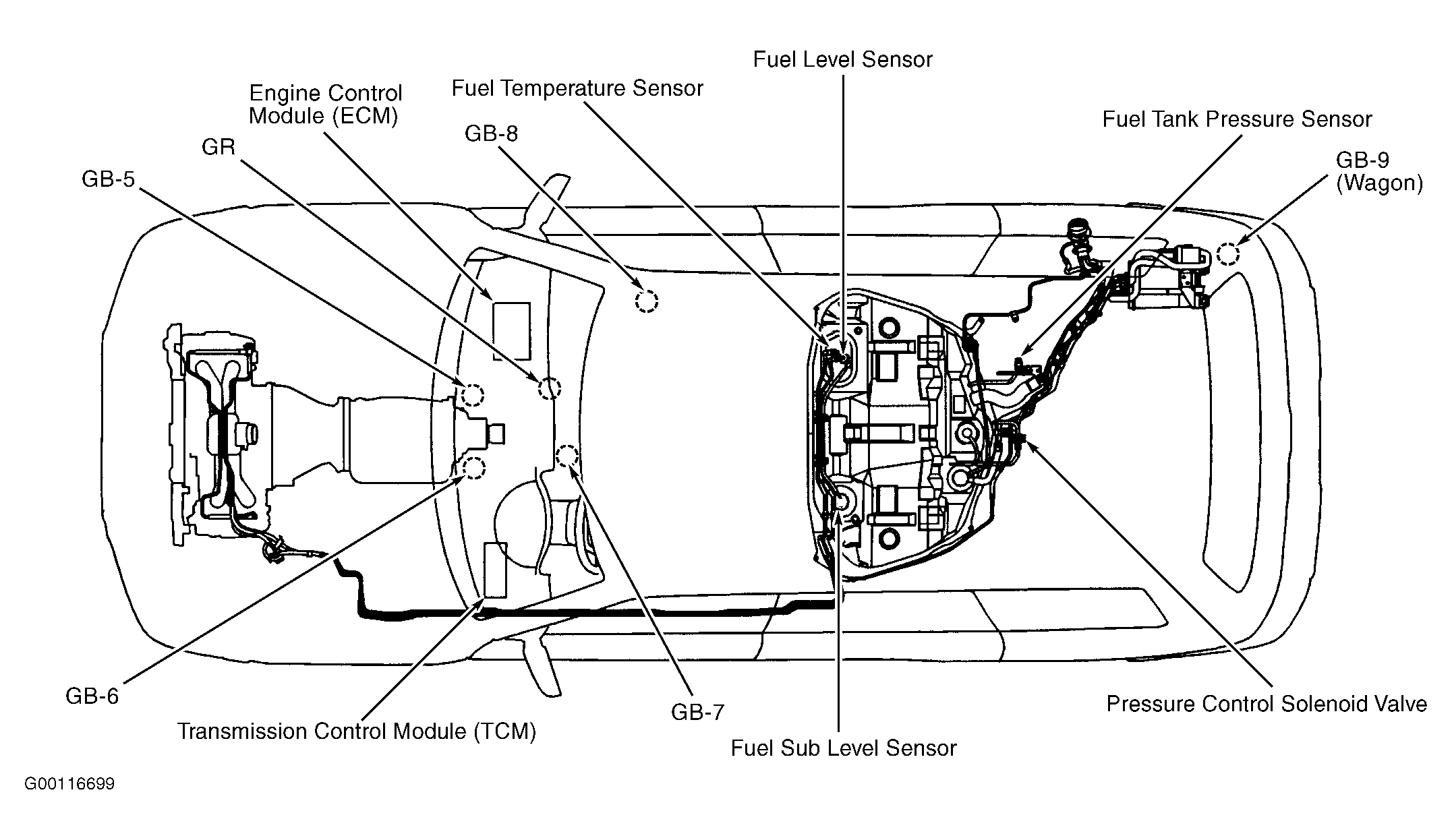

| GB-5 | Under front of center console. See Figure. |
| GB-6 | Under front of center console. See Figure. |
| GB-7 | Front left side of center console. See Figure. |
| GB-8 | Under right front seat. See Figure. |
| GB-9 (Sedan) | Rear center of luggage compartment. |
| GB-9 (Wagon) | Rear right corner of vehicle. See Figure. |
| GD | Rear center of luggage compartment. |
| GE | On right rear of engine. See Figure. |
| GR | Under right front of center console. See Figure. |
