Electrical Component Locator: Miscellaneous

MISCELLANEOUS

Component Component Location
Blower Motor Resistor Behind right side of dash.
Check Connector At center of dash.
Data Link Connector (DLC) At center of dash.
Diagnosis Connector At center of dash.
Diagnosis Terminal At center of dash.
Diode (Courtesy Light) Behind right side of dash.
Diode (Front Foglight) Behind left side of dash.
Diode (Rear Gate) Behind right side of dash.
Drain Valve At right rear of vehicle, near canister.

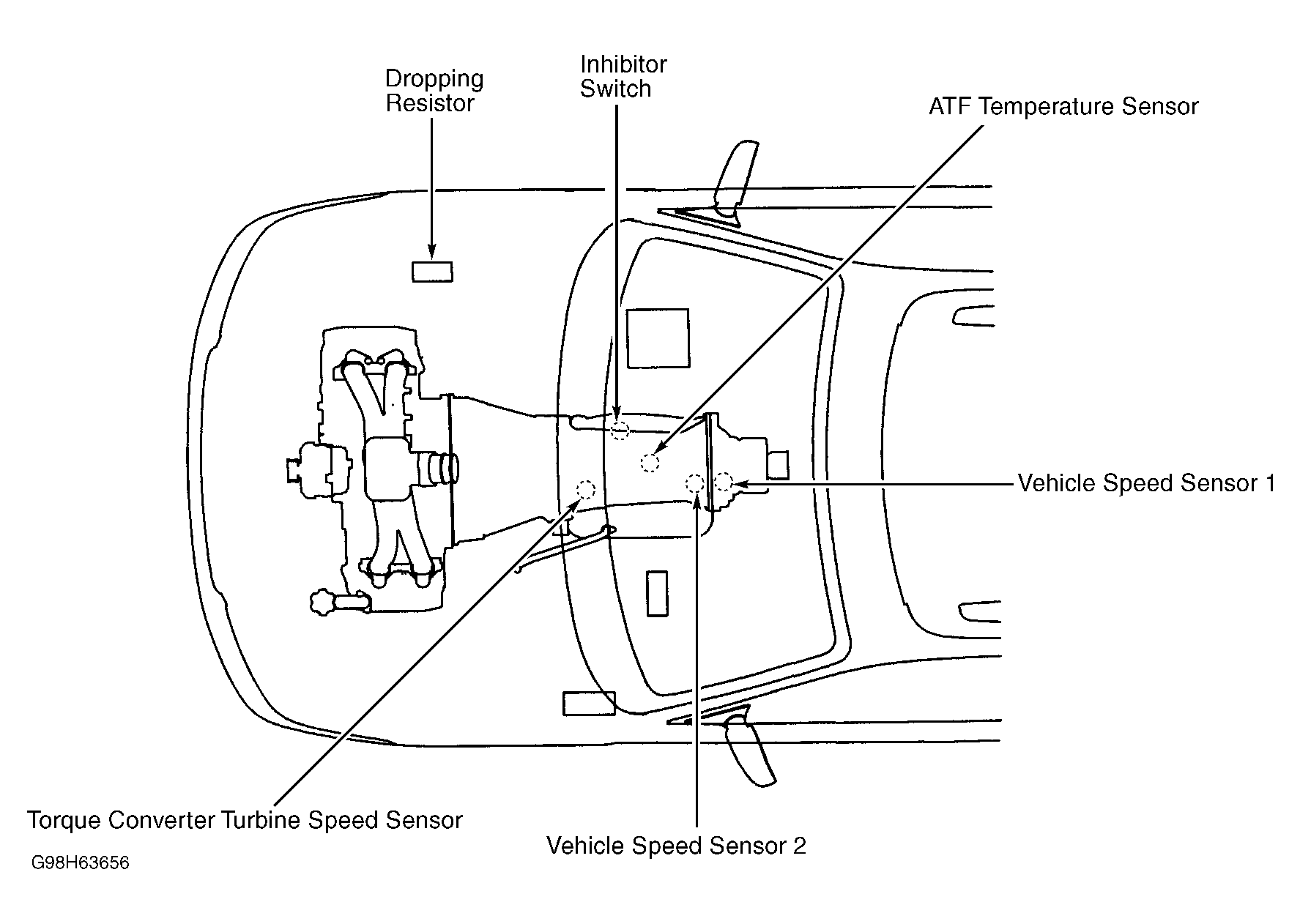

Dropping Resistor At right side of engine compartment. See Figure.
Ignition Coil & Ignitor On top front of engine.
OP Connector Behind center of dash.
Rear Defogger Condenser At right front corner of trunk.
Security Horn At right side of engine compartment. See Figure.
Test Mode Connector Behind center of dash.
