Firing Order & Timing Marks

NOTE: Firing order is 1-3-2-4. For coil connections and cylinder identification, see Fig 1 and Fig 2 . For timing marks, see Fig 3 .

Fig 1: Identifying DIS Coil Connections

Courtesy of SUBARU OF AMERICA, INC.

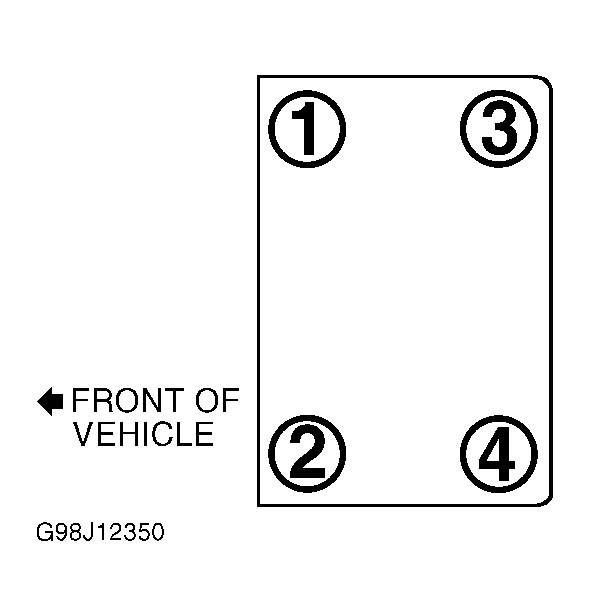

Fig 2: Cylinder Identification

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Locating 4-Cylinder Ignition Timing Mark (Typical)

Courtesy of SUBARU OF AMERICA, INC.
