ECM Location

On Forester and Impreza, ECM is located below glove box, under right side of dash. See Fig 1.

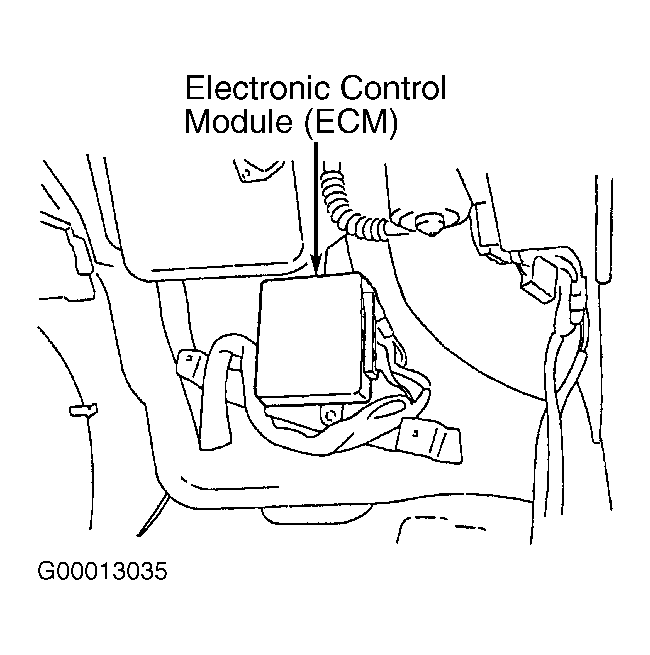

Fig 1: Locating ECM Under Right Side Of Dash (Forester & Impreza)
G00013035Courtesy of SUBARU OF AMERICA, INC.

On Legacy models, ECM is located in front passenger's footwell beneath carpet and protective cover. See Fig 2

Fig 2: Locating ECM In Front passenger Footwell (Legacy)
G00013036Courtesy of SUBARU OF AMERICA, INC.
