Combination Switch (Light): Removal

WARNING: This page is about a different car, the 2001 Subaru Outback and 2001 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument panel lower cover. See REMOVAL , Instrument Panel Assembly.
  2. Remove screws which secure upper column cover to lower column cover.

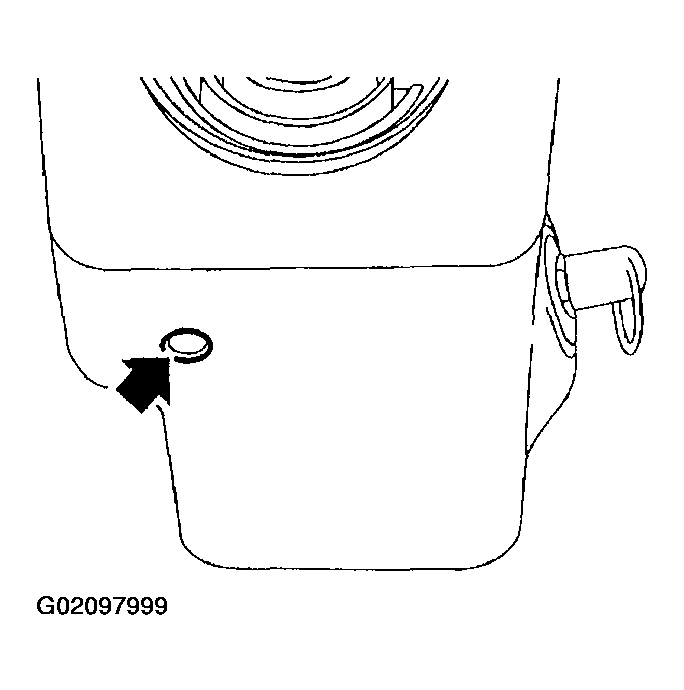

    Fig 1: Removing Column Cover Screws
    G02097999
  3. Disconnect connector from combination switch.
  4. Remove screws which secure switch and remove switch.

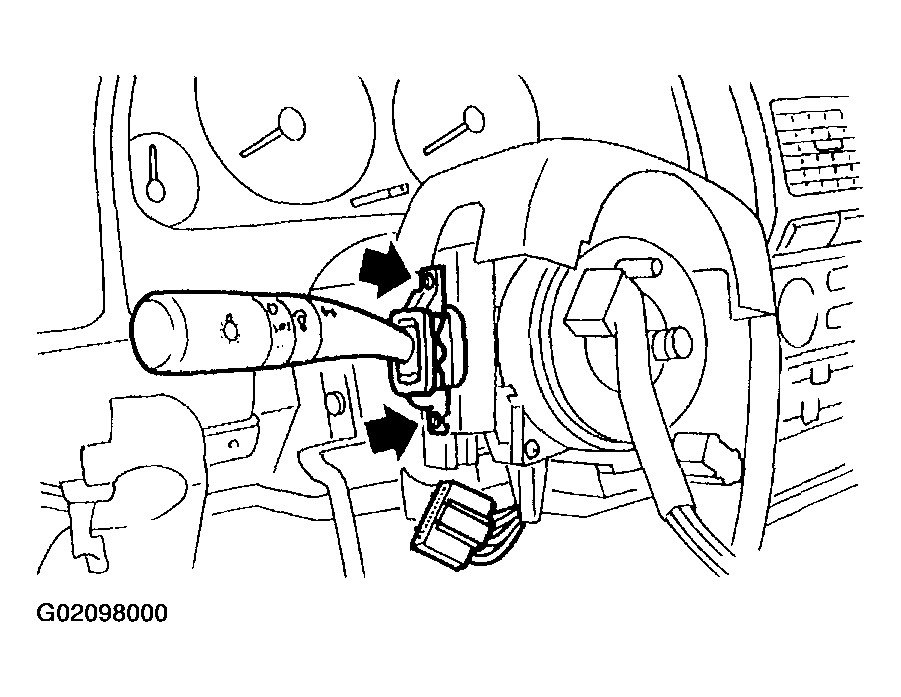

    Fig 2: Removing Switch Screws & Removing Combination Switch
    G02098000
