Interior Light

WARNING: This page is about a different car, the 2001 Subaru Outback and 2001 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

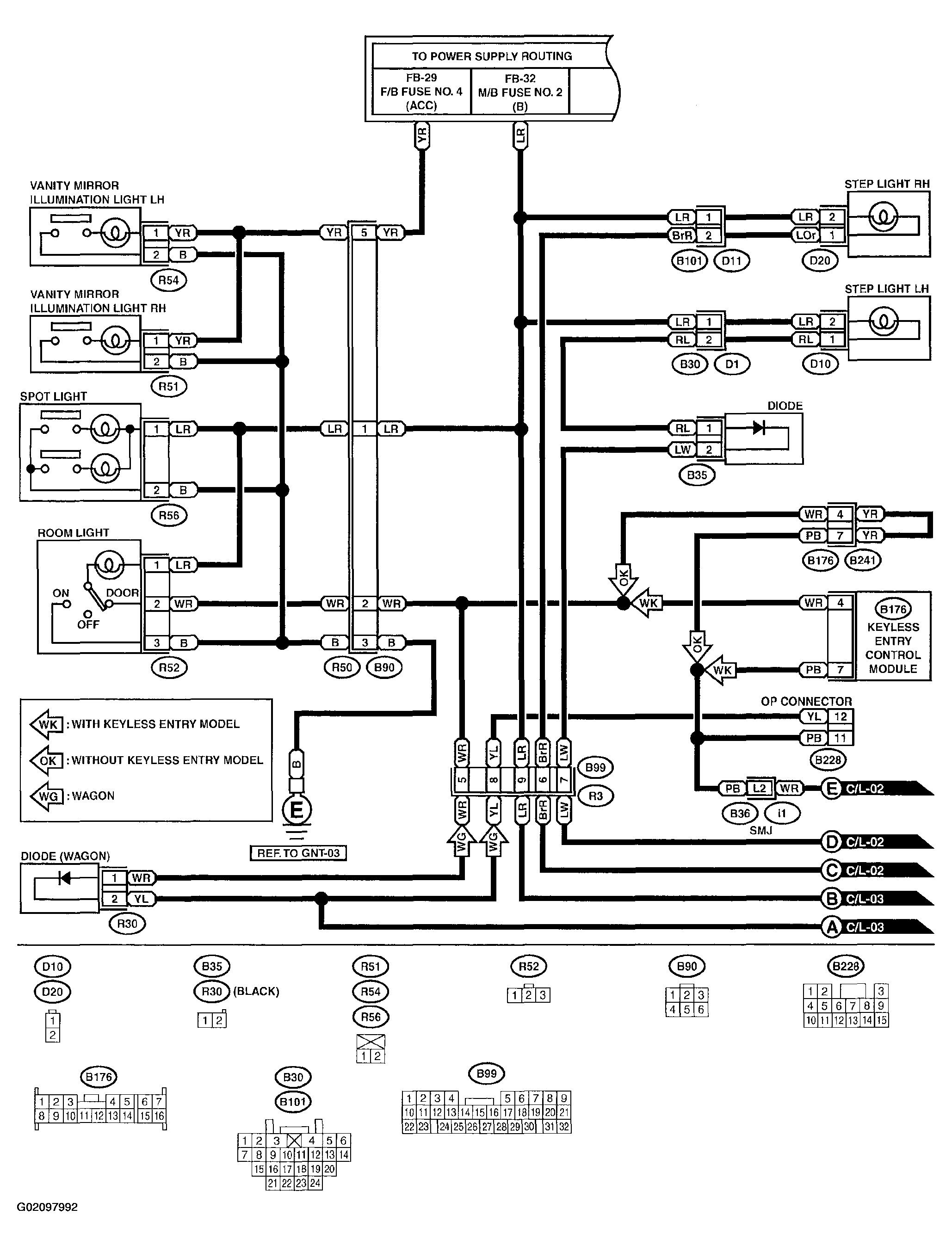

Fig 1: Interior Light Schematic (1 Of 3)
G02097992

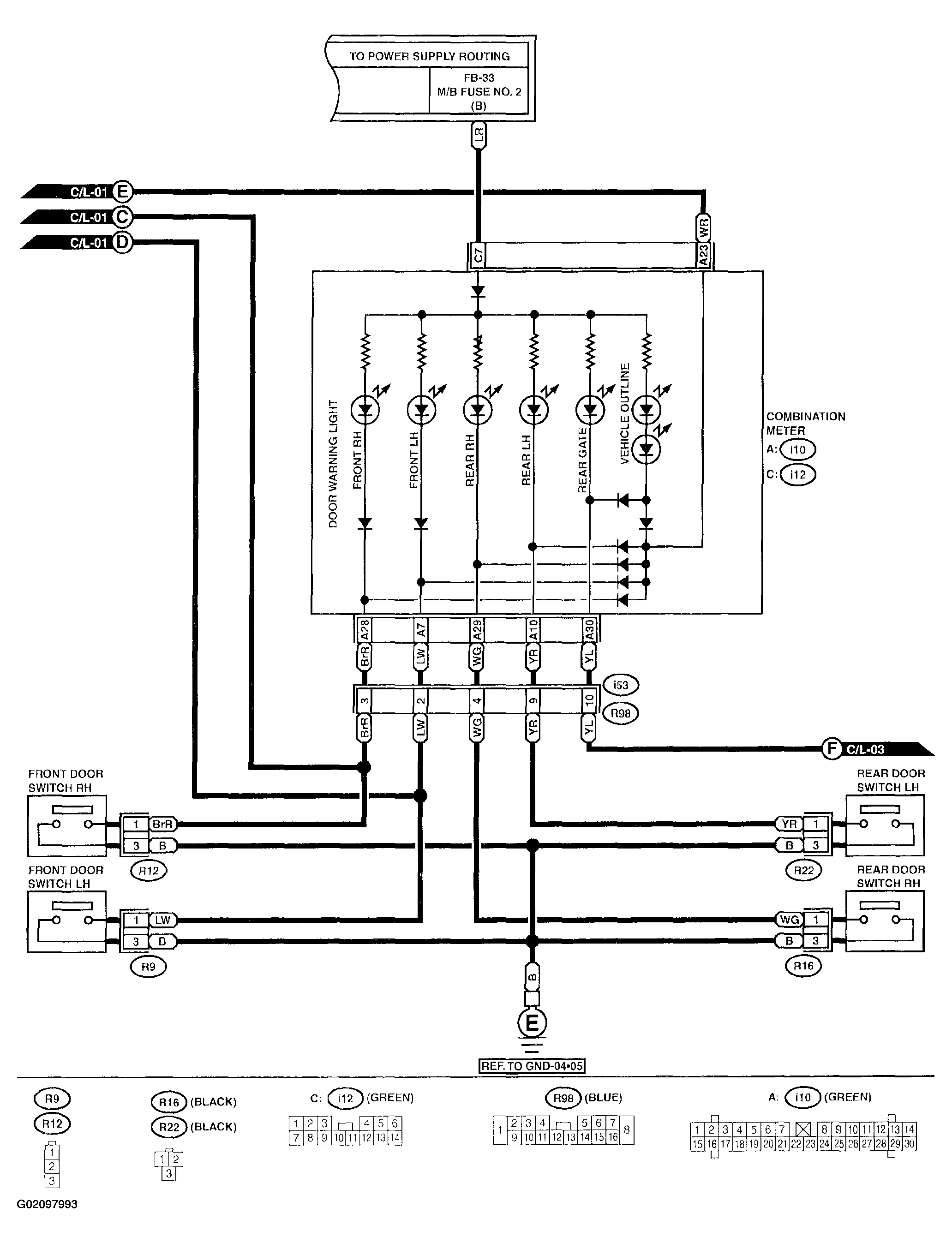

Fig 2: Interior Light Schematic (2 Of 3)
G02097993

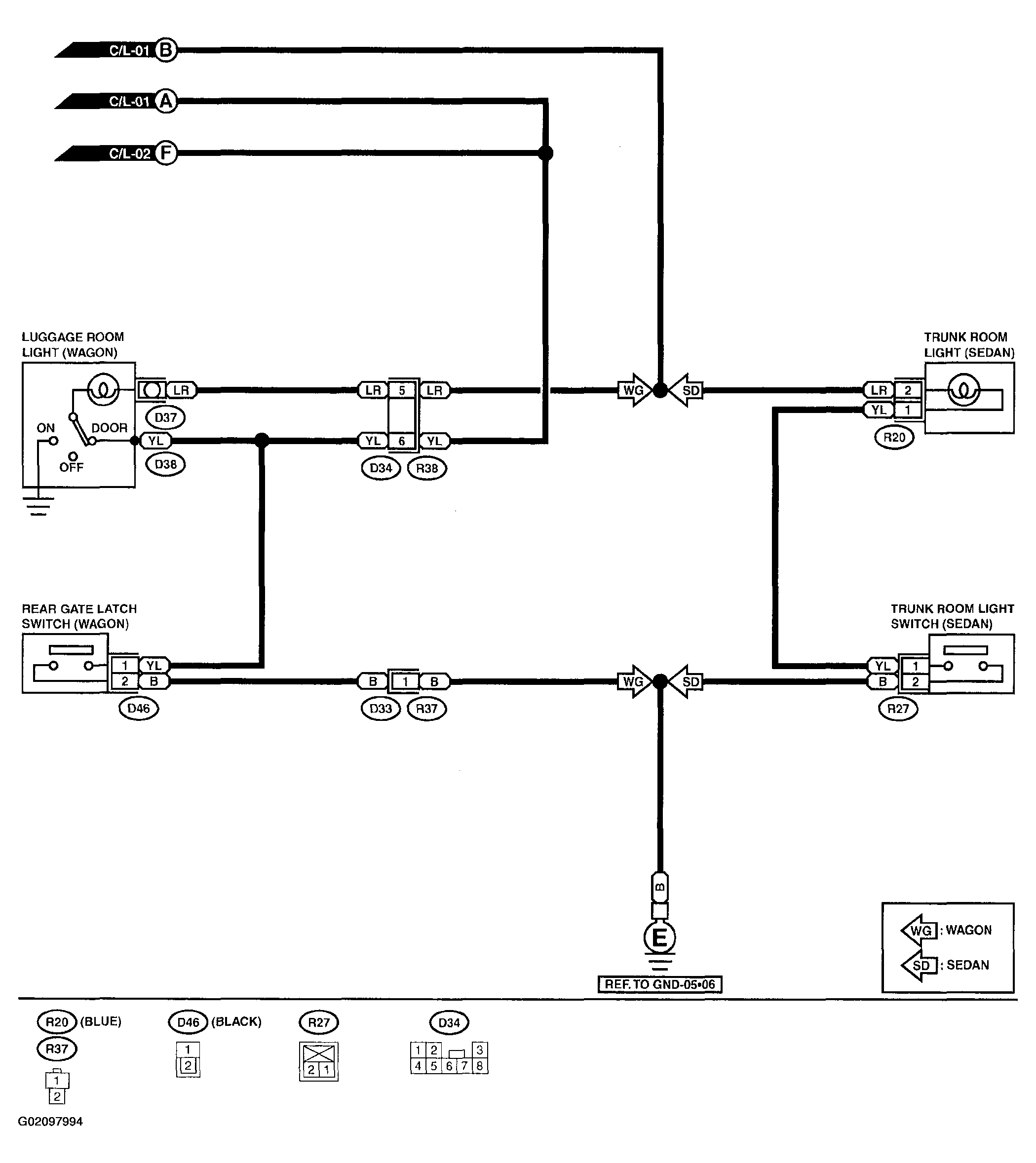

Fig 3: Interior Light Schematic (3 Of 3)
G02097994
