Rear Combination Light Assembly: Removal: Wagon

WARNING: This page is about a different car, the 2001 Subaru Outback and 2001 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove two rear quarter trim covers.
  2. Remove two nuts and then remove rear combination light while disconnecting connector.
NOTE: Before removing the nuts, apply a few turns of butyl tape to the tip of the service tool. This prevents the nuts from falling during removal.

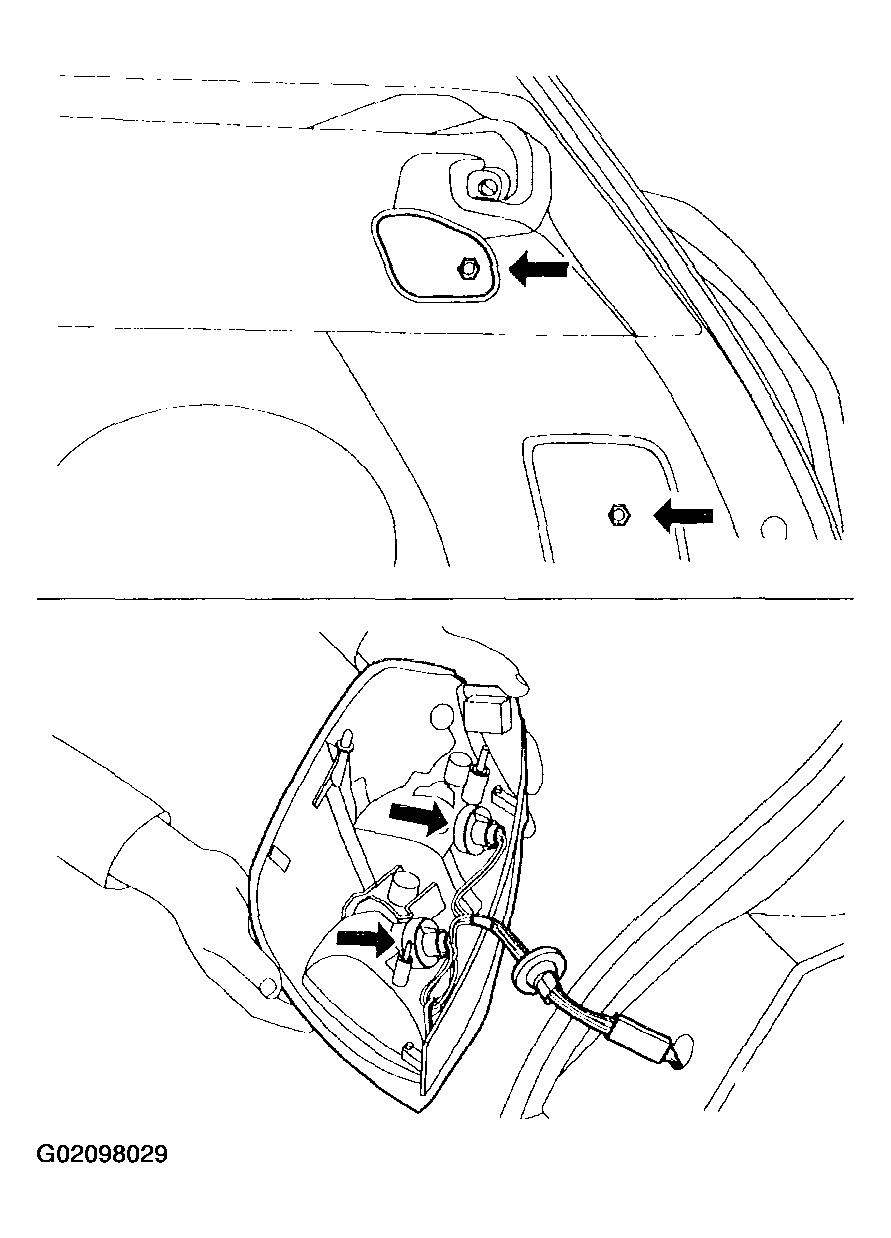

Fig 1: Removing Nuts & Rear Combination Light (Wagon)
G02098029
