Stop Light System: Inspection

WARNING: This page is about a different car, the 2001 Subaru Outback and 2001 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

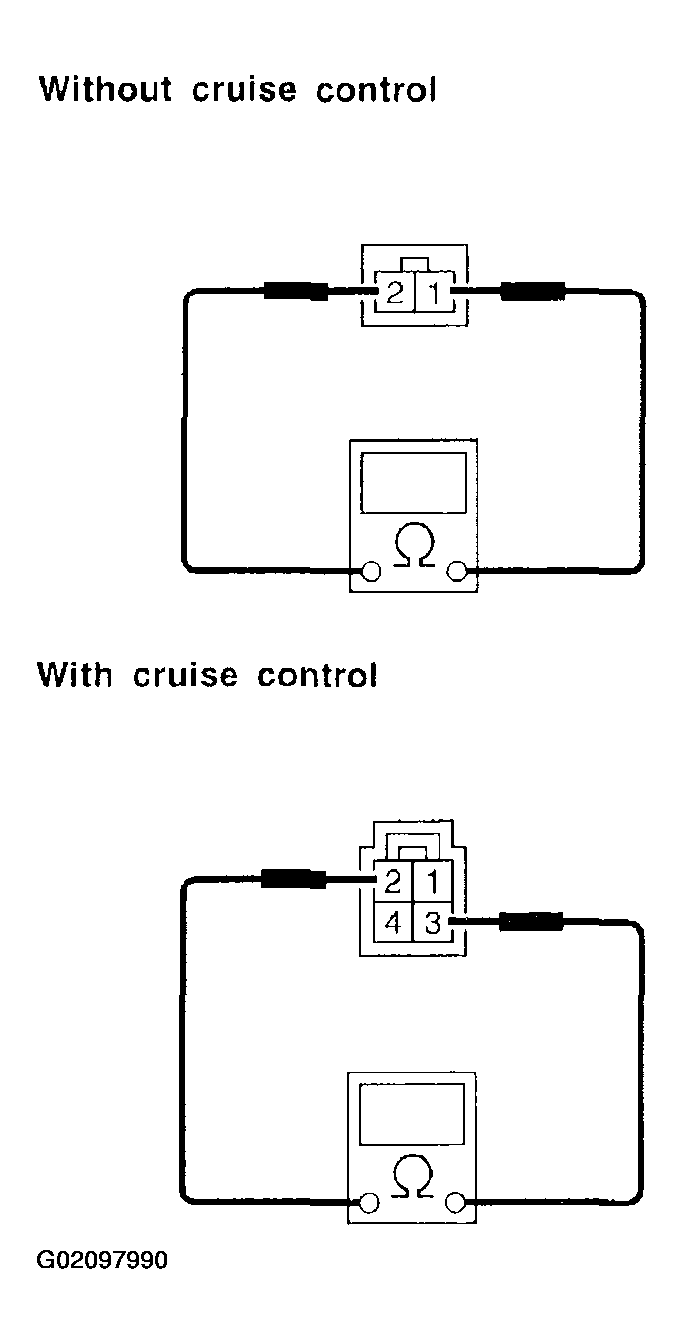

Fig 1: Checking Continuity Between Stop Light Terminals

Check continuity between terminals.

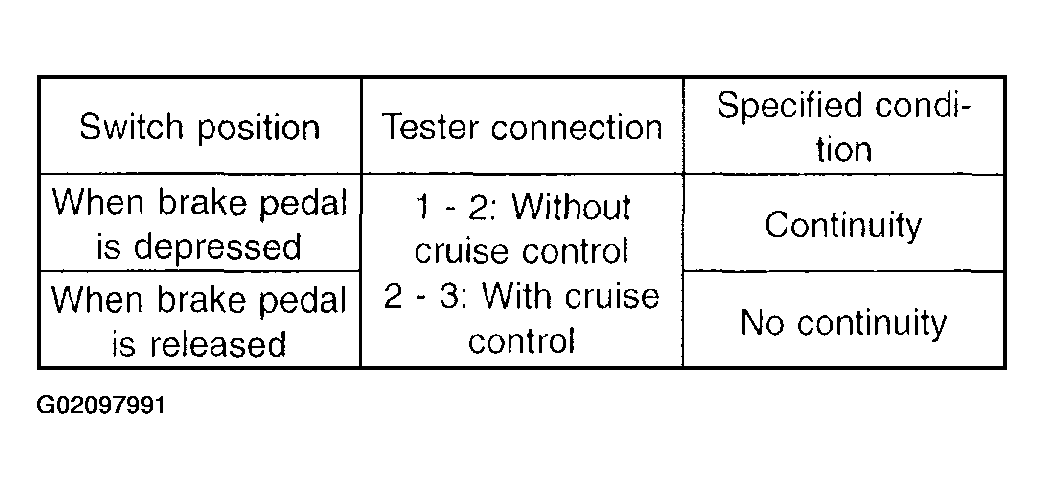

Fig 2: Stop Light Continuity Chart
