On-Board Diagnostic System Connector Location (11-57-99)

Publication date: 1999-09-29
Reference number: 11-57-99

ON-BOARD DIAGNOSTIC SYSTEM CONNECTOR LOCATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): 11-57-99, Date of Issue: September 29, 1999

ON-BOARD DIAGNOSTIC SYSTEM - DIAGNOSTIC LINK CONNECTOR (DLC) LOCATION

Model(s): 2000 Subaru Legacy, Legacy Outback, Impreza, Impreza Outback Sport, Forester

Group: 11 - Emission System

Bulletin No.: 11-57-99

Date: September 29, 1999

SERVICE INFORMATION

This bulletin is for information only.

This bulletin provides additional information to Bulletin 11-54-99, which covers the diagnostic link connector locations for all 1996 through 1999 model Subaru vehicles.

All 2000 model SUBARU vehicles are 50-State certified and belong to engine family YFJXV02.5JEH, which is specified on the upper left portion of the underhood Vehicle Emission Control Information (VECI) label. Summarized in the chart below is a quick pictorial reference for the DLC location by 2000 model line. Also included in this chart is an U.S. EPA DLC mapping grid number, which corresponds to the agency's mapping diagram in Fig. Fig 4 .

DIAGNOSTIC LINK CONNECTOR (DLC) LOCATION CHART

Model Year	Subaru Model	OBD DLC Pictorial Location	EPA Mapping Grid Number
2000	Legacy & Outback 2.5L	See Fig. 1.	#2
2000	Forester 2.5L	See Fig. 2.	#2
2000	Impreza 2.2L & 2.5L	See Fig. 3.	#2

Fig 1: OBD DLC Pictorial Location - Legacy & Outback 2.5L

Fig 2: OBD DLC Pictorial Location - Forester 2.5L

Fig 3: OBD DLC Pictorial Location - Impreza 2.2L & 2.5L

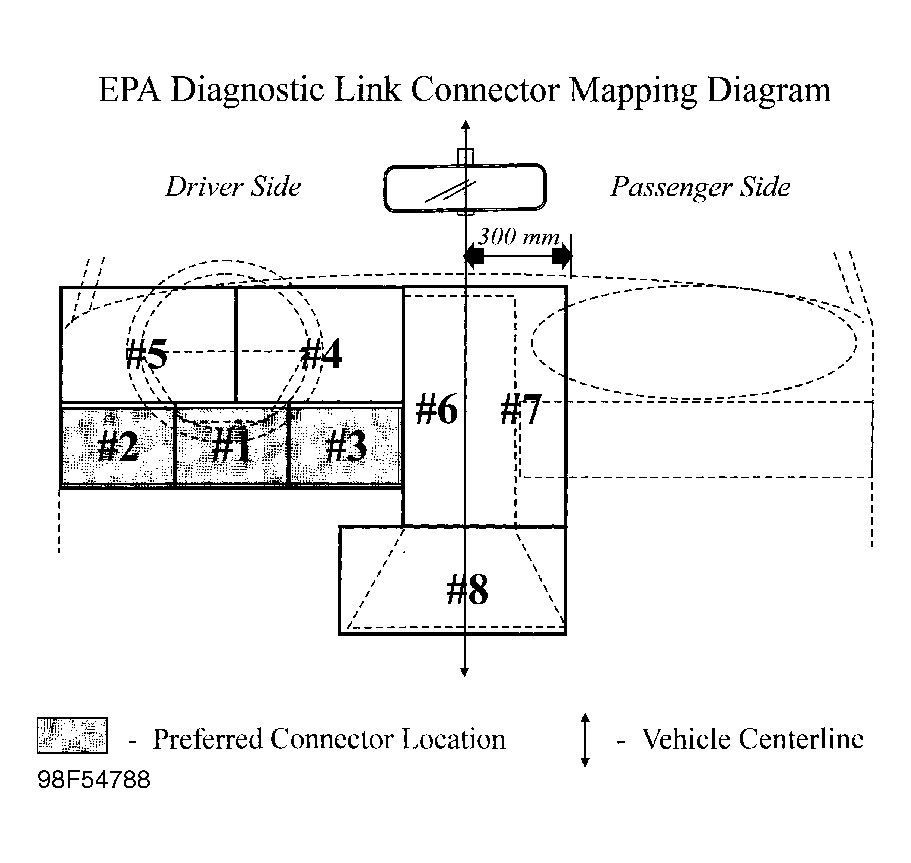

Fig 4: EPA Diagnostic Link Connector Mapping Diagram
