Tech Tips November 2013 (SUSTIPS 1113)

TECH TIPS NOVEMBER 2013

TECHNICAL SERVICE BULLETIN

01 TROUBLESHOOTING GUIDES ON STIS - A REMINDER

Please be advised that there are 17 troubleshooting guides on STIS that cover various topics such as Remote Engine Start, Navigation Systems, Rear Seat Entertainment, Blue Connect, F-10 Systems and Media Hub to name a few. From the home page of STIS, click on the Online Reference tab; click the drop down menu under Publication Type and select Troubleshooting Guides, then click the first search button. Do not put any car model information in your search and it will return all of them. Once the complete list is displayed, click on the right side to view the guide applicable to your particular vehicle. A review of the applicable Troubleshooting Guide should always be done prior to calling the Techline.

05 TIRE PRESSURES "CHECK THAT SPARE"

In many parts of the country, the Summer's heat has been replaced by Fall's cooler air.

At this time of year, tire pressures can drop as much as 1-2 PSI for every ten(10) degrees of temperature change during the vehicle shipping process from the Port Facilities to your dealership. This is true for not only the tires on the vehicle, but for the spare tire as well. A spare tire underinflated by ten(10) PSI will not appear any different from a properly inflated spare tire.

Always ensure the spare tire pressures in the vehicles you are receiving from Subaru are within the specified range of 50-65 PSI.

This check ensures that the vehicle being delivered to our customer is safe and has a properly inflated spare tire, if the need arises to use it.

01 DON'T FORGET TO CHECK THE BASICS WHEN DIAGNOSING DRIVABILITY COMPLAINTS

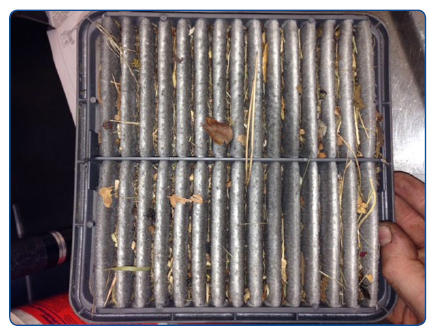

When performing diagnostics for engine-related problems, don't forget the simple items which can easily be overlooked. Recently, a vehicle with only 27,420 miles was brought in to a dealership for misfire codes P0301, 302, 303, 304. The air filter was almost completely clogged (see photo to the left). Even when a vehicle has not reached a point where maintenance items would be inspected or replaced (ex: air filter at 30K), they should still be checked as part of the diagnostic procedure.

Thanks to Bill Clark from Fred Beans Subaru for this helpful Tip!

07 2014 FORESTER SEAT HEATER OPERATION AND SWITCH FUNCTIONS

Subaru vehicles 2013MY and prior equipped with seat heaters generally have an operating range of 86 degrees F to 104 degrees F. See the March, 2003 issue of TechTIPS for information on older style seat heaters. The 2014 Forester seat heaters have a different operating range. The 2014 Forester seat heaters come on at 98.6 degrees F. and shut down at 109.4 Degrees F. Depending upon conditions such as interior cabin temperature, seat fabric and thickness, these temperature ranges are target ranges and may feel or read slightly different when checked by a technician.

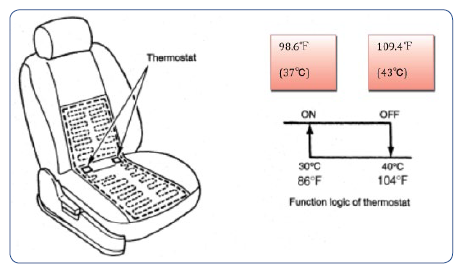

The system uses 7 contact points on the seat cushion and 4 contact points on the seat back to keep the system within this operating range by utilizing two thermostats located within the seat elements. They are positioned so the customer cannot feel them when seated. See the attached illustration below for thermostat locations. The switch functions are not a high and low type system like those used in previous models. When the seat heater switch is put in the high position, the elements heat up and into the operating range as fast as possible. When the switch is placed in the low position, the same amount of heat is generated but at a slower rate to reach maximum temperature. Once the maximum temperature is reached, the elements shut off until they cool below operating range then cycle back on again. The switch stays illuminated whenever the system is in use.

Switch testing can be performed as follows:

Inspect for continuity between the seat heater switch terminals.

Connector & Terminal
HI	LOW
No 4- No 5	No 4 - No 5
No 4 - No 3	No 4 - No 6
No 4 - No 6

If no continuity exists, replace the seat heater switch with a new part.

For other models equipped with seat heaters, use the appropriate Service Manual for diagnostics as there are differences between systems and testing procedures differ between model years.

01 BIU REPLACEMENT AND KEYS

Should you be replacing a Body Integrated Unit and not know if the vehicle needs to have the keys replaced, you can find this information on STIS. Go to the home page of STIS, click on the Online Reference column and select Other/Miscellaneous. Under Keywords type in "Immobilizer", but do not put any vehicle information into the other fields. Click on the first search button and four (4) PDF documents will be returned. There are three (3) immobilizer manuals contained on this page covering all types of Subaru Immobilizer systems; A, B, C and D. Each manual contains a chart outlining what needs to be done or replaced whenever repairing the immobilizer system.

06 BRAKE OVERRIDE SYSTEM OPERATION AND HESITATION COMPLAINTS

Should you encounter a hesitation-type complaint on a 2013MY, BRZ, Legacy, Outback, XV Crosstrek, Impreza or Tribeca, don't overlook the possibility it may be customer-induced due to the operation of the Brake Override System (BOS). This feature was incorporated to avoid accidental acceleration.

Simply stated, if the brake pedal and accelerator pedal are applied at the same time, under specific conditions, engine operation and acceleration will be reduced. This reduced acceleration could be interpreted by a customer as a hesitation. During the time the BOS is activated, any further accelerator pedal application will not increase the vehicle's acceleration. Once the vehicle speed is at 0 MPH, the accelerator pedal must be fully released to return the system to normal operation.

There are some parameters that can be monitored with the SSM III to determine if this might be the cause of the customer's complaint. One of the indications this may be the issue would be the customer's actual driveability complaint, But with no related DTCs in memory when the OBD system is checked. If a DTC is found, normal diagnosis should be performed using the appropriate Service Manual procedure.

Information about the operation of the BOS can be reviewed in Training Module 501 pages 87-90. It might be a good time to review this and become familiar with it.

The customer can also Google "Subaru Brake Override System" for an explanation of this system.

07 HEADLIGHT ADJUSTMENT REMINDERS

When working on areas of the vehicle near the headlights, it can be easy to inadvertently knock them out of adjustment. Here are some reminders to help you avoid customer concerns or even a possible comeback:

• When reinstalling the front bumper cover, take an extra minute to make sure it is properly positioned with the alignment slots/tabs before locking it into place. This way, there shouldn't be any need to hit the cover any more than necessary to fully engage the locking claws/tabs.
• When pushing the vehicle backward, don't push on the headlights.
• Don't drop or slam the hood. Dropping it can knock the latch out of adjustment and having to slam the hood can mean the latch is already out of adjustment. Either way, this can also change the headlight adjustment and may also be an indicator of a body alignment issue elsewhere.
• Don't push on the fender side of the headlight any more than necessary as this can change the side to side adjustment.
