Camber Adjustment: Front

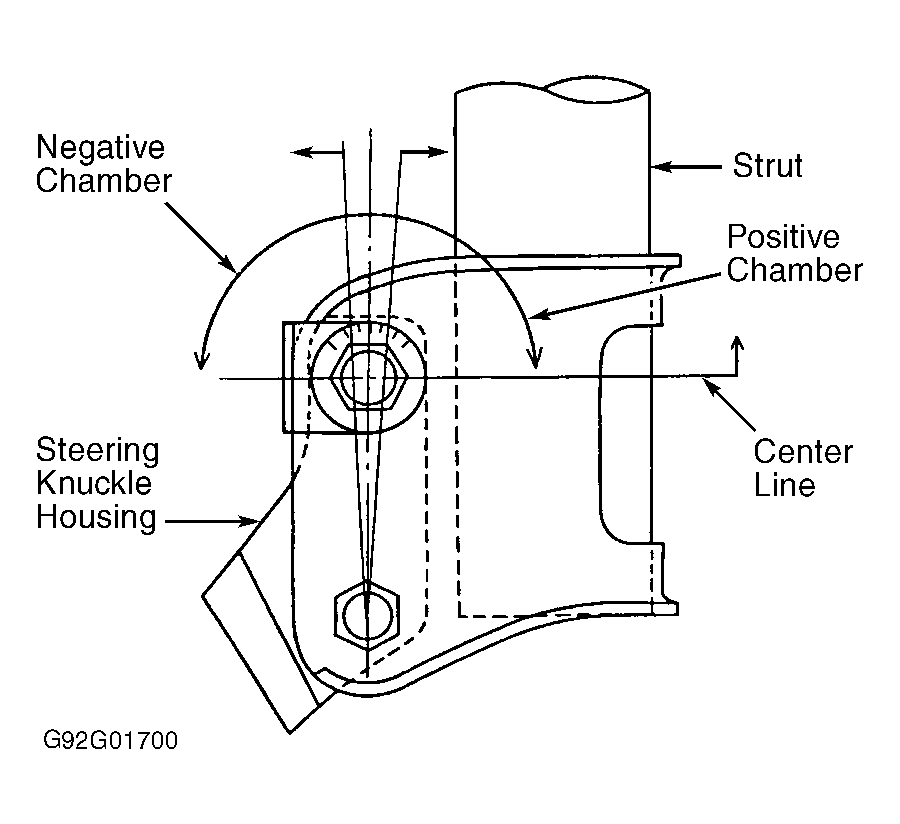

Loosen both lower strut mounting bolts so strut bolt can rotate. See Figure . Turn strut adjusting bolt to adjust camber. Strut adjusting bolt has eccentric cam head to force strut to positive or negative camber adjustment. Replace self locking nut. Tighten bolts to specification. See TORQUE SPECIFICATIONS  .
