Trouble Shooting: Notes

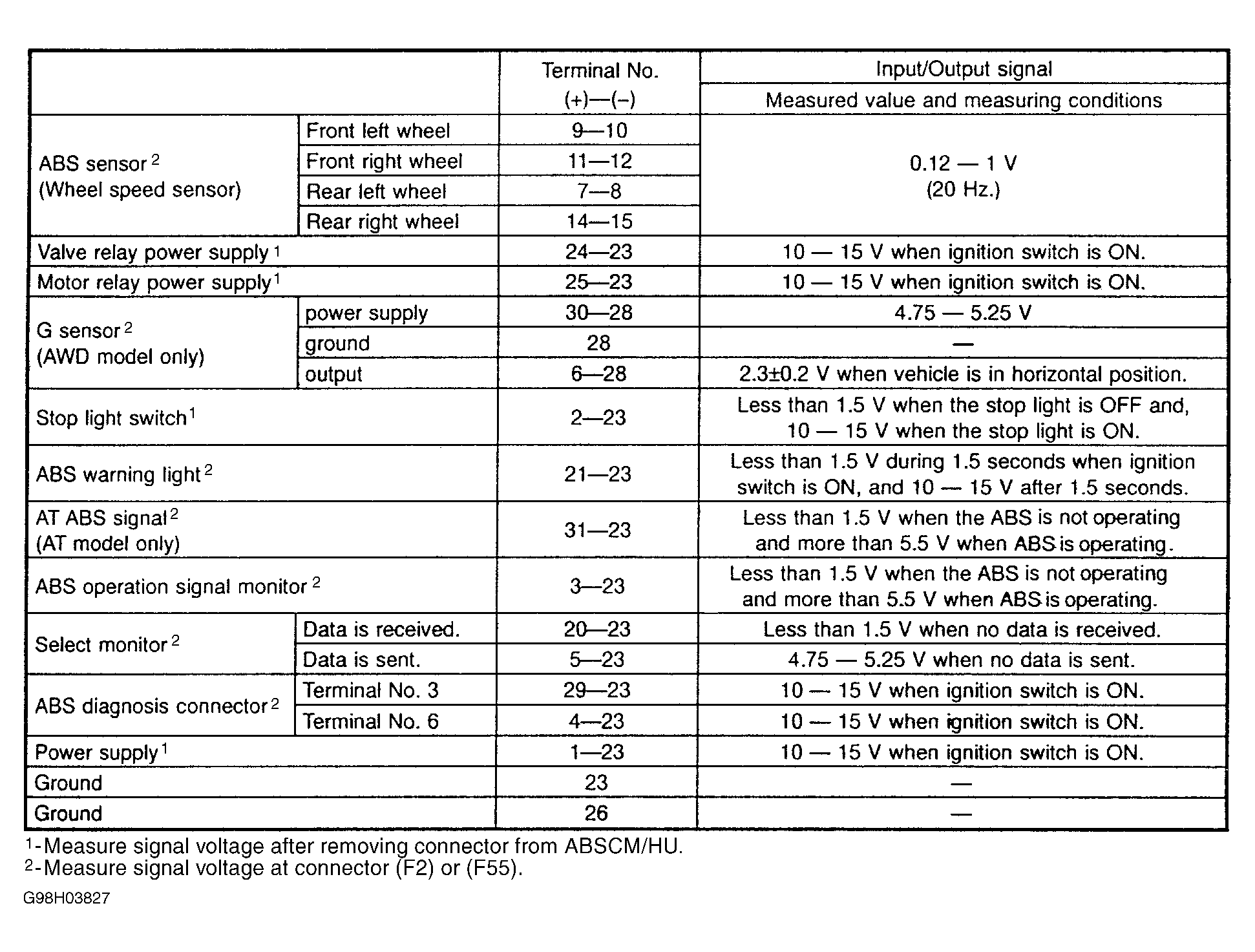

NOTE: For additional voltage specifications, see ABS control module pin voltage chart. See Figure. To identify ABS control module and hydraulic unit terminals, see Figure.
