Trouble Code 41 Abs Control Module Malfunction - Abs Control Module And Hydraulic Control Unit Malfunction

DIAGNOSIS:

• Faulty ABSCM & H/U

TROUBLE SYMPTOM:

• ABS does not operate.

WIRING DIAGRAM:

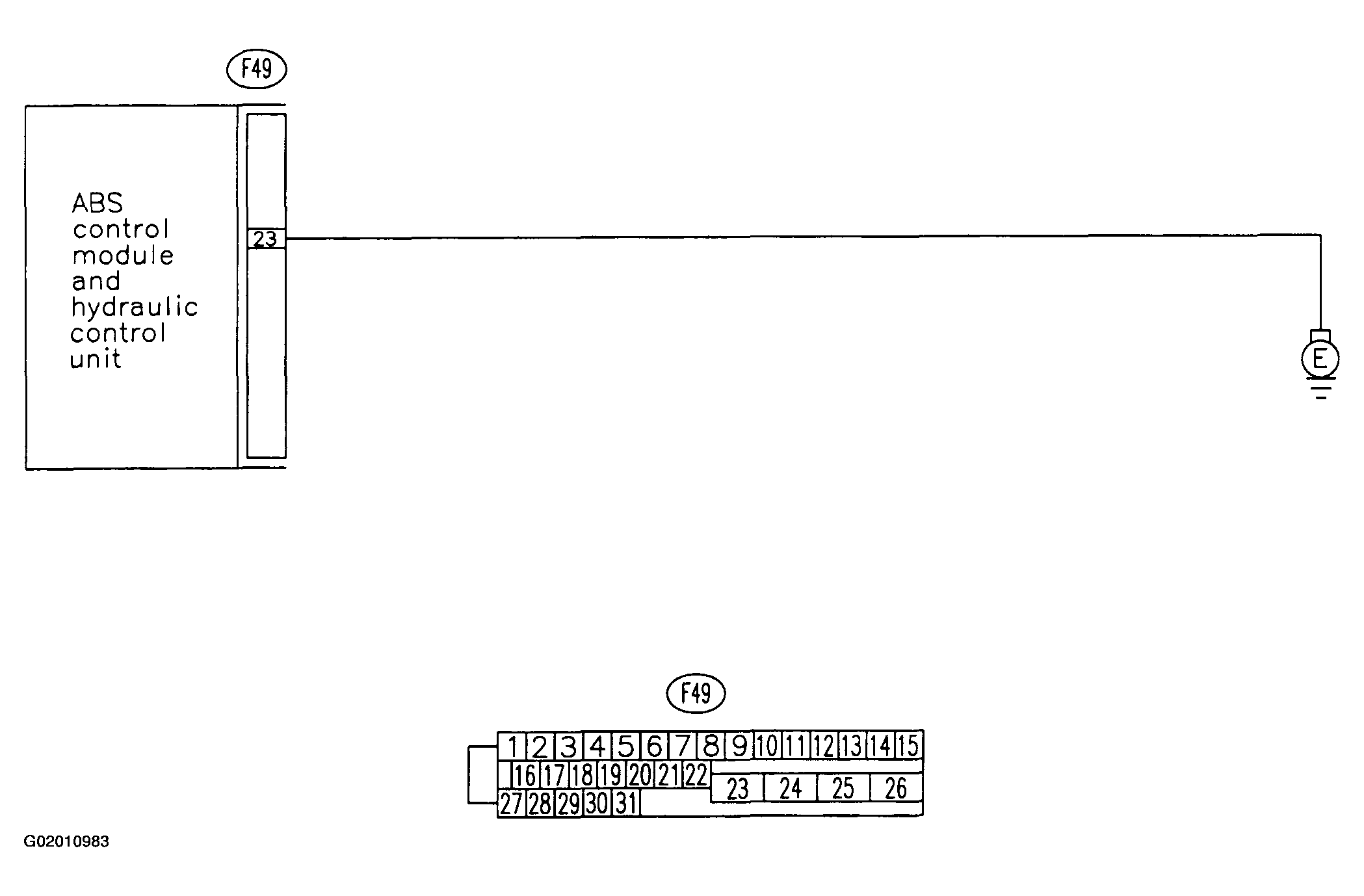

Fig 1: Wiring Diagram

1. 10V1: CHECK GROUND CIRCUIT OF ABSCM & H/U
   1. Turn ignition switch to OFF.
   2. Disconnect connector from ABSCM & H/U.
   3. Measure resistance between ABSCM & H/U and chassis ground.

   Connector & terminal

   1. (F49) No. 23 (+) - Chassis ground:

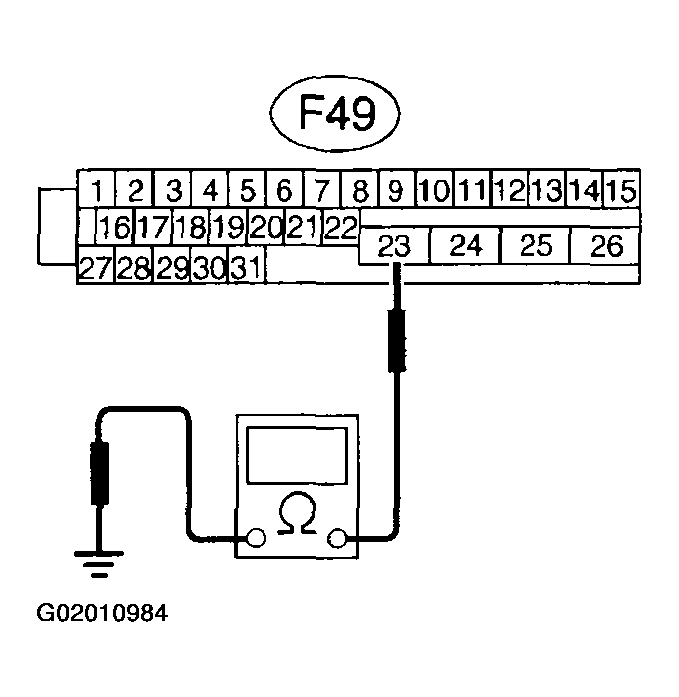

   Fig 2: Measuring Resistance Between ABSCM & H/U & Chassis Ground



   CHECK: Is the resistance less than 0.5 ohm ?

   1. YES:  Go to step 10V2.
   2. NO:  Repair ABSCM & H/U ground harness.
2. 10V2: CHECK POOR CONTACT IN CONNECTORS.

   CHECK: Is there poor contact in connectors between battery, ignition switch and ABSCM & H/U?

   1. YES:  Repair connector.
   2. NO:  Go to step 10V3.
3. 10V3: CHECK SOURCES OF SIGNAL NOISE.

   CHECK: Is the car telephone or the wireless transmitter properly installed?

   1. YES:  Go to step 10V4.
   2. NO:  Properly install the car telephone or the wireless transmitter.
4. 10V4: CHECK SOURCES OF SIGNAL NOISE.

   CHECK: Are noise sources (such as an antenna) installed near the sensor harness?

   1. YES:  Install the noise sources apart from the sensor harness.
   2. NO:  Go to step 10V5.
5. 10V5: CHECK ABSCM & H/U.
   1. Turn ignition switch to OFF.
   2. Connect all connectors.
   3. Erase the memory.
   4. Perform inspection mode.
   5. Read out the trouble code.

   CHECK: Is the same trouble code as in the current diagnosis still being output?

   1. YES:  Replace ABSCM & H/U, see ABS CONTROL MODULE AND HYDRAULIC CONTROL UNIT (ABSCM & H/U)  .
   2. NO:  Go to step 10V6.
6. 10V6: CHECK ANY OTHER TROUBLE CODES APPEARANCE.

   CHECK: Are other trouble codes being output?

   1. YES:  Proceed with the diagnosis corresponding to the trouble code.
   2. NO:  A temporary poor contact.
