Thrust Angle: Inspection
- Position vehicle on a level surface.
- Move vehicle 3 to 4 meters directly forward.

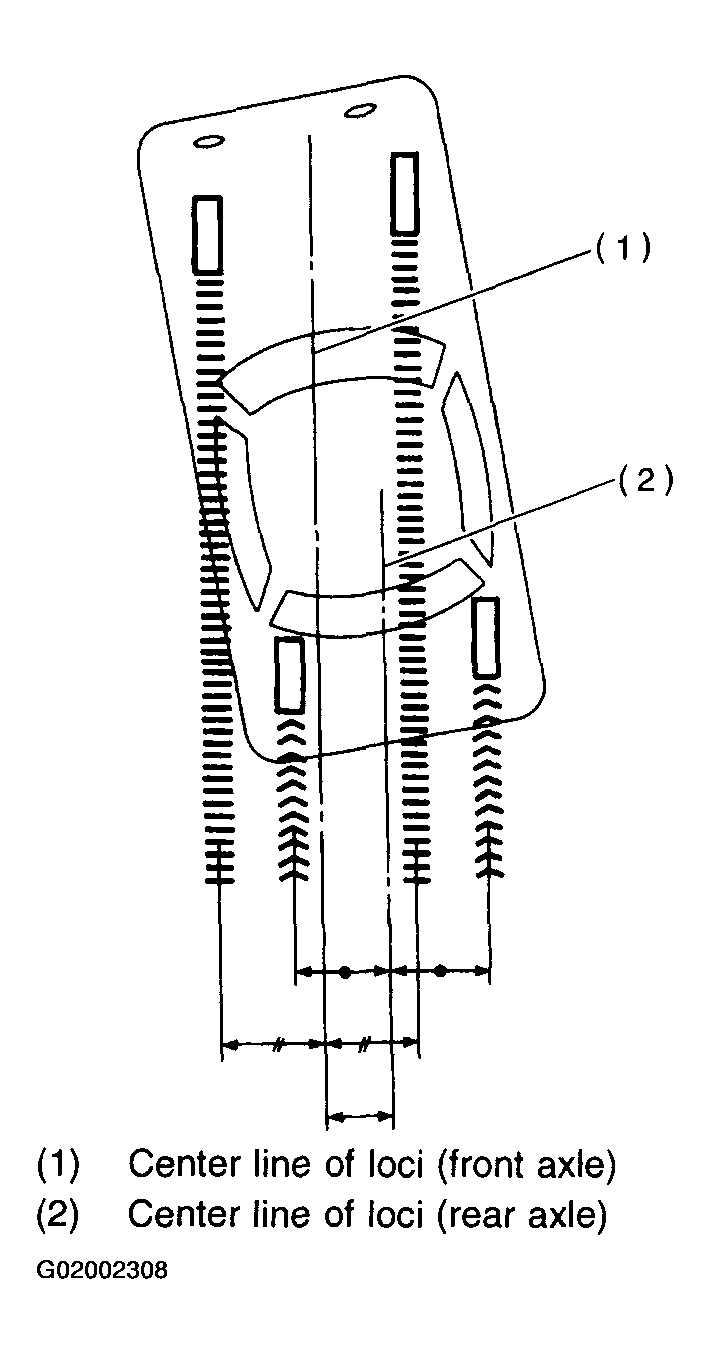

- Determine locus of both front and rear axles.
- Measure distance "L" between center line of loci of the axles.
Thrust angle: Less than 20' when "L" is equal to or less than 15 mm (0.59 in)
