Home >> Subaru >> 2001 >> Forester Base >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry Systems >> Diagnostic Tests >> Notes
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Diagnostic Tests: Notes

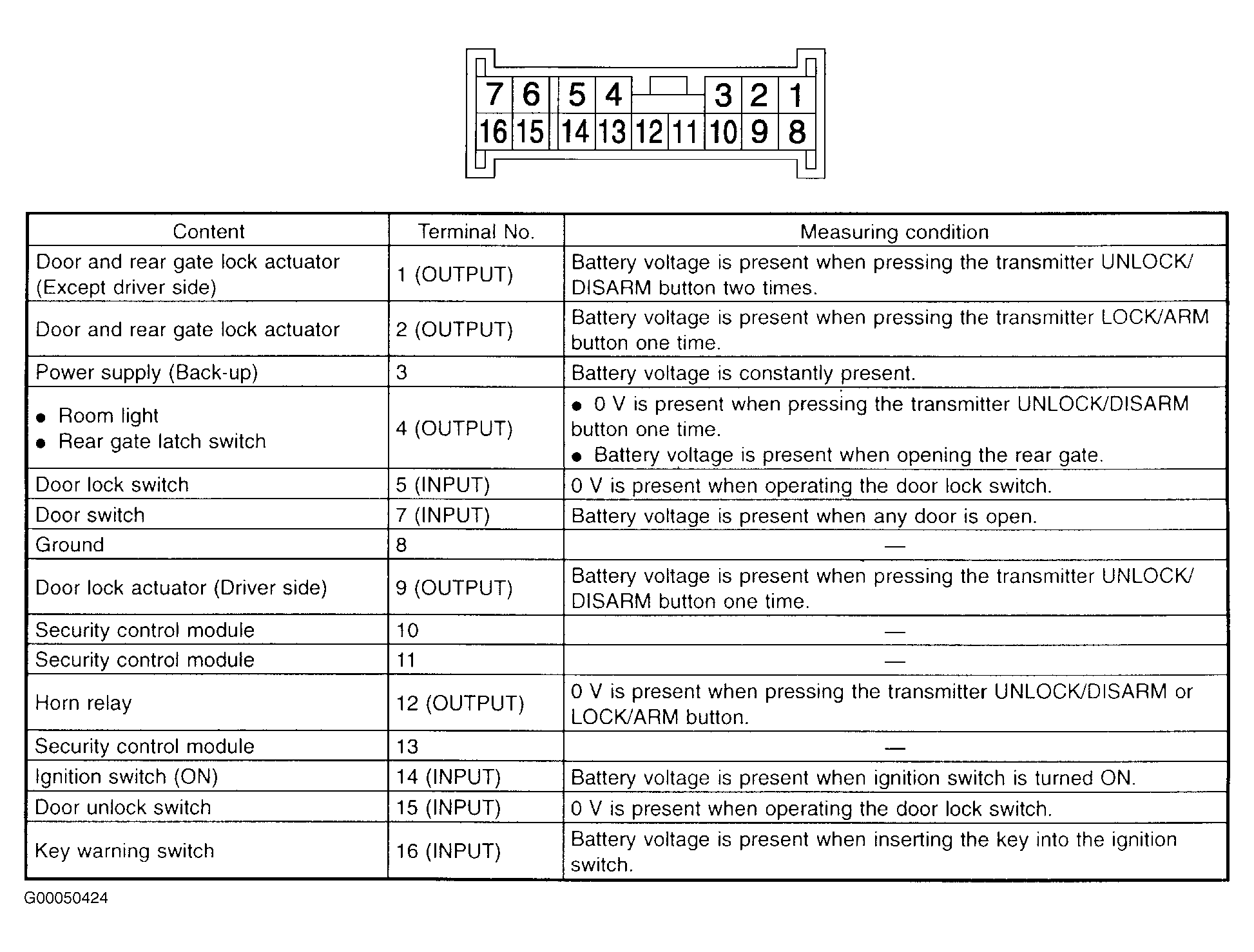

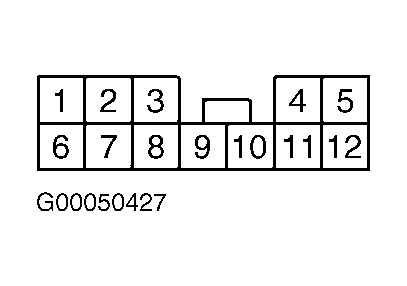

NOTE: For correct circuit identification, see WIRING DIAGRAMS  . For connector terminal identification, see Figure -Figure .
