Trouble Code 44 Abs-At Control (Non Controlled - Abs-At Control (Non Controlled)

DIAGNOSIS:

• Combination of AT control faults

TROUBLE SYMPTOM:

• ABS does not operate.

WIRING DIAGRAM:

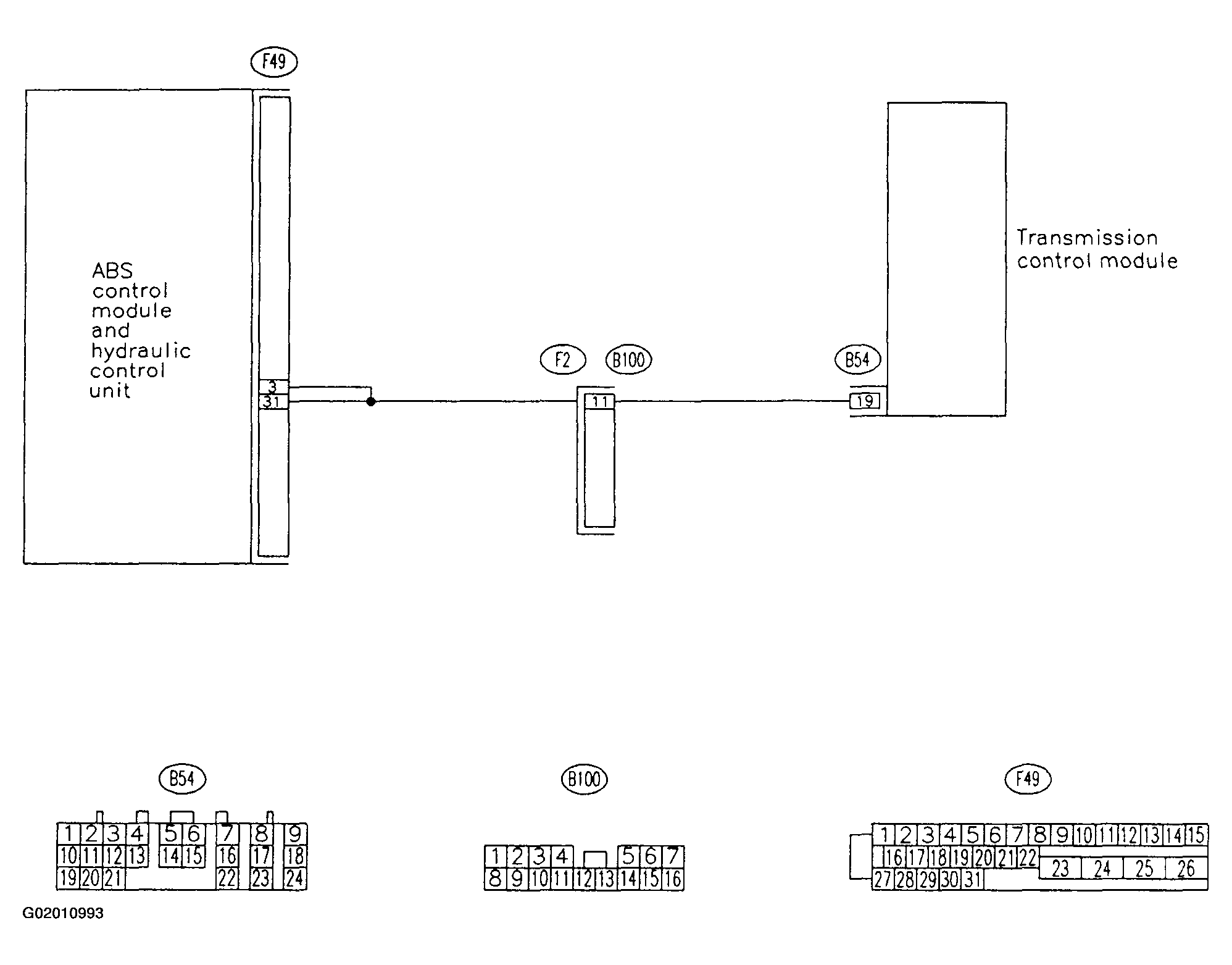

Fig 1: Wiring Diagram

1. 10Y1: CHECK SPECIFICATIONS OF THE ABSCM & H/U.

   Check specifications of the mark to the ABSCM & H/U.

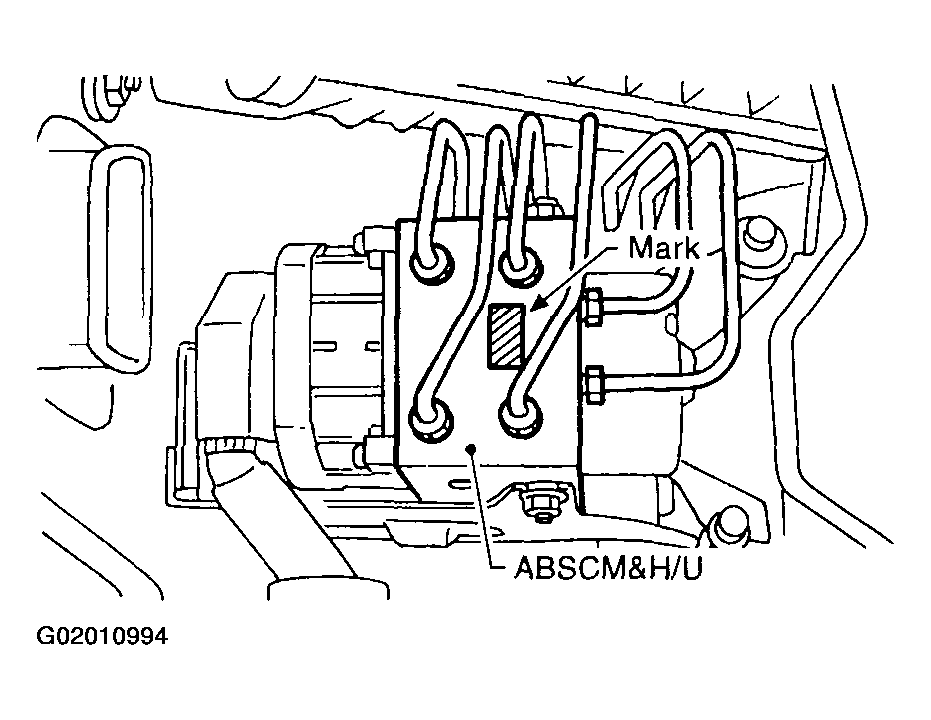

   Fig 2: Identifying Mark On ABSCM & H/U

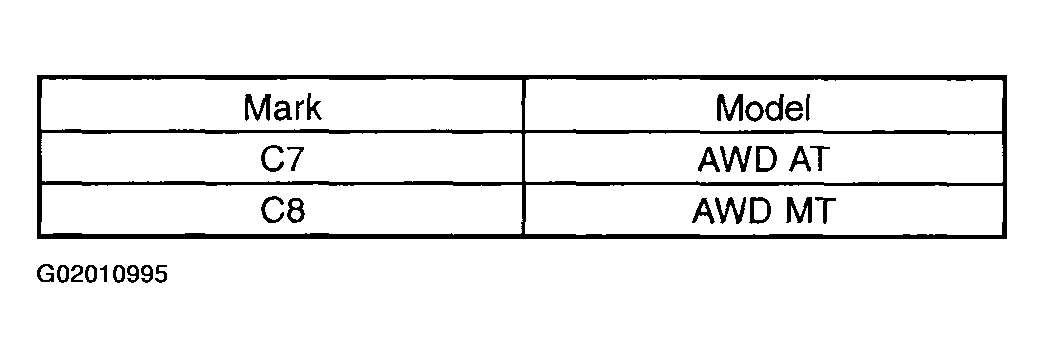

   Fig 3: Specifications On mark On ABSCM & H/U



   CHECK: Is an ABSCM & H/U for AT model installed on a MT model?

   1. YES:  Replace ABSCM & H/U, see ABS CONTROL MODULE AND HYDRAULIC CONTROL UNIT (ABSCM & H/U)  .
   2. NO:  Go to step 10Y2.
2. 10Y2: CHECK GROUND SHORT OF HARNESS.
   1. Turn ignition switch to OFF.
   2. Disconnect the two connectors from TCM.
   3. Disconnect connector from ABSCM & H/U.
   4. Measure resistance between ABSCM & H/U connector and chassis ground.

   Connector & terminal

   1. (F49) No. 3 - Chassis ground:

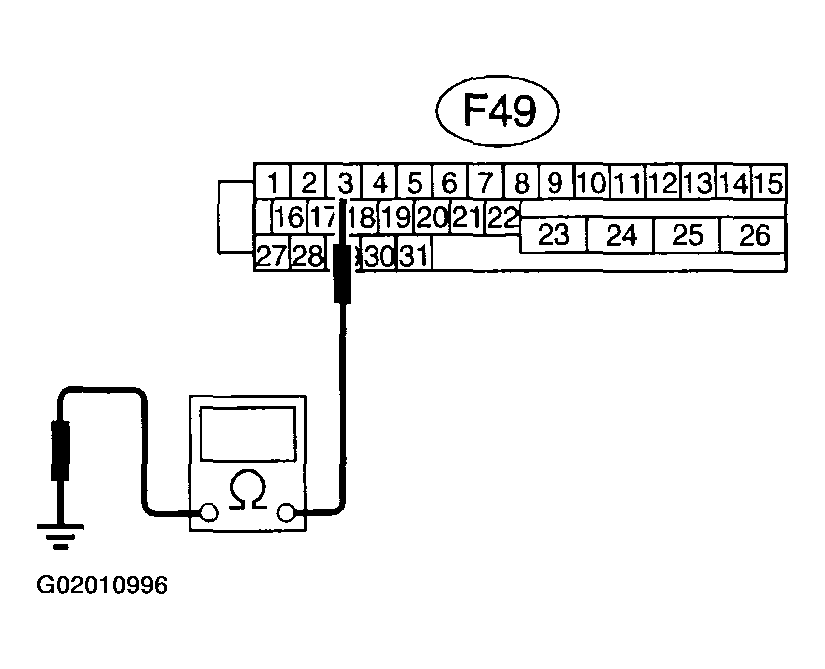

   Fig 4: Measuring Resistance Between ABSCM & H/U Connector & Chassis Ground



   CHECK: Is the resistance more than 1 M ohm ?

   1. YES:  Go to step 10Y3.
   2. NO:  Repair harness between TCM and ABSCM & H/U.
3. 10Y3: CHECK TCM.
   1. Connect all connectors to TCM.
   2. Turn ignition switch to ON.
   3. Measure voltage between TCM connector terminal and chassis ground.

   Connector & terminal

   1. (B54) No. 19 (+) - Chassis ground (-):

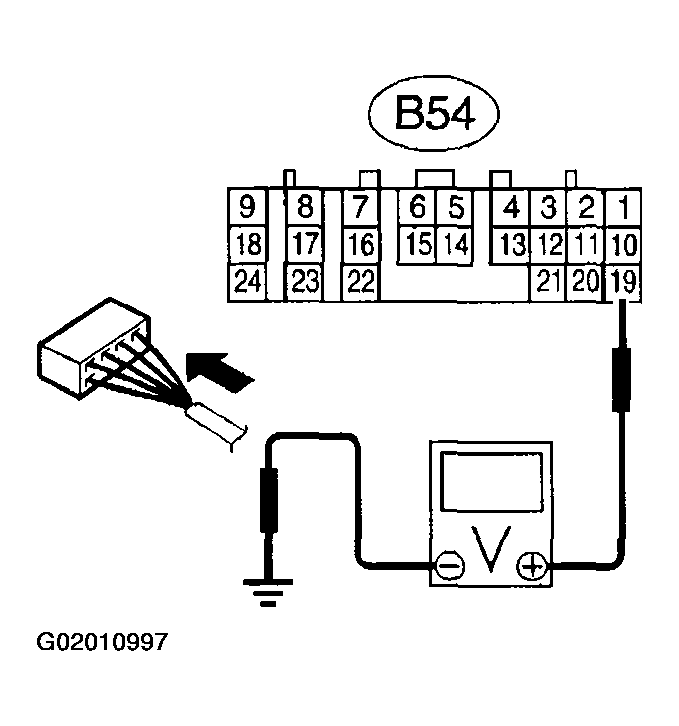

   Fig 5: Measuring Voltage Between TCM Connector Terminal & Chassis Ground



   CHECK: Is the voltage between 6 and 15 V?

   1. YES:  Go to step  10Y5: CHECK OPEN CIRCUIT OF HARNESS .
   2. NO:  Go to step 10Y4.
4. 10Y4: CHECK AT.

   CHECK: Is the AT functioning normally?

   1. YES:  Replace TCM.
   2. NO:  Replace AT.
5. 10Y5: CHECK OPEN CIRCUIT OF HARNESS.

   Measure voltage between ABSCM & H/U connector and chassis ground.

   Connector & terminal

   1. (F49) No. 3 (+) - Chassis ground (-):
   2. (F49) No. 31 (+) - Chassis ground (-):

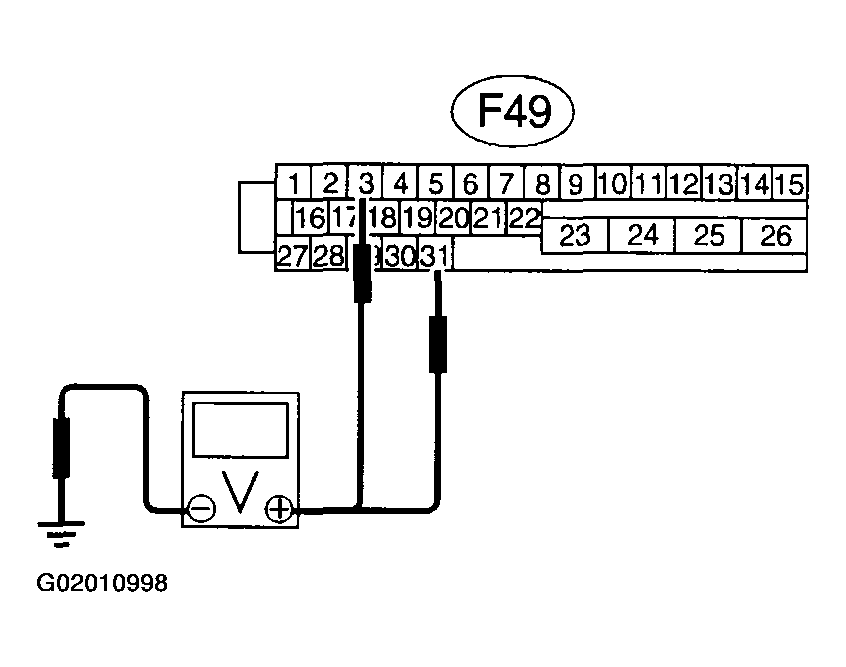

   Fig 6: Measuring Voltage Between ABSCM & H/U Connector & Chassis Ground



   CHECK: Is the voltage between 5.5 and 15 V?

   1. YES:  Go to step 10Y6.
   2. NO:  Repair harness/connector between TCM and ABSCM & H/U.
6. 10Y6: CHECK POOR CONTACT IN CONNECTORS.

   CHECK: Is there poor contact in connectors between TCM and ABSCM & H/U?

   1. YES:  Repair connector.
   2. NO:  Go to step 10Y7.
7. 10Y7:  CHECK ABSCM & H/U.
   1. Connect all connectors.
   2. Erase the memory.
   3. Perform inspection mode.
   4. Read out the trouble code.

   CHECK: Is the same trouble code as in the current diagnosis still being output?

   1. YES:  Replace ABSCM & H/U, see ABS CONTROL MODULE AND HYDRAULIC CONTROL UNIT (ABSCM & H/U)  .
   2. NO:  Go to step 10Y8.
8. 10Y8: CHECK ANY OTHER TROUBLE CODES APPEARANCE.

   CHECK: Are other trouble codes being output?

   1. YES:  Proceed with the diagnosis corresponding to the trouble code.
   2. NO:  A temporary poor contact.
