Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|
| A/C Fuse | In A/C relay holder. |
| A/C Relay Holder | On left side of engine compartment. |
| Diode (DRL) | Behind right side of dash. |
| Diode (Front Foglight) | Behind left side of dash. |

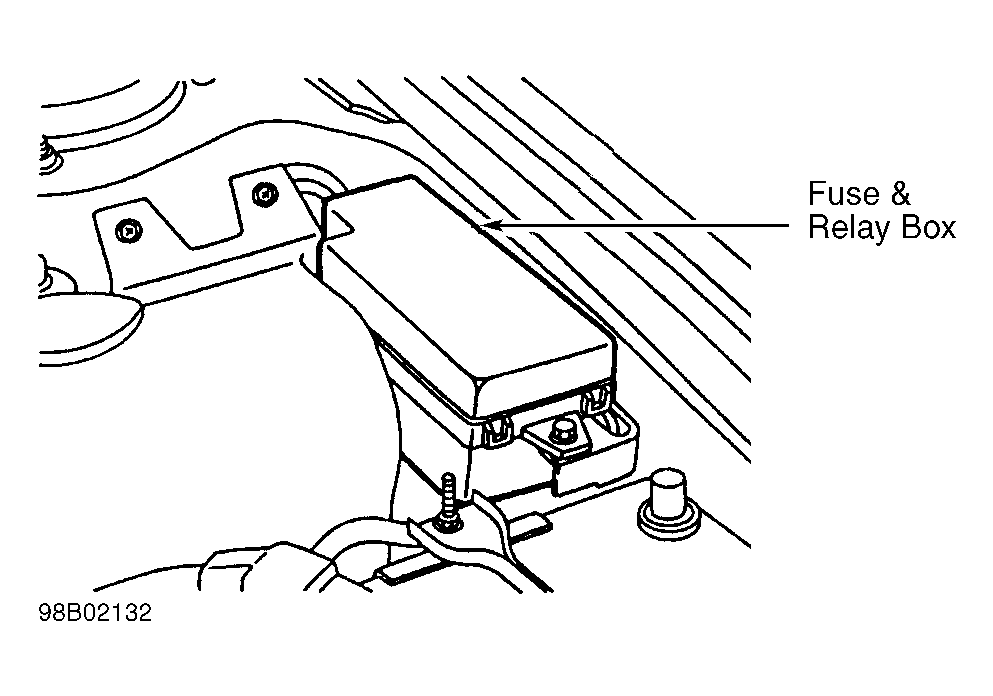

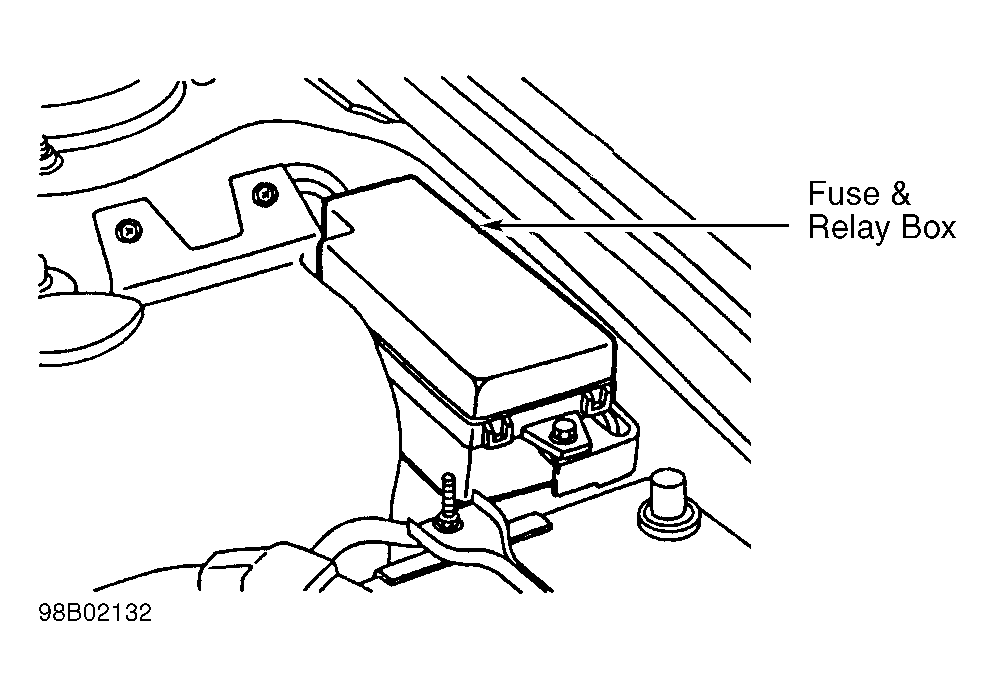

| Fuse & Relay Box | On left side of engine compartment. See Figure . |
| FWD Switch Fuse | In A/C relay holder. |
| Main Fuse Box | Behind dash, left of steering column. |
| Power Window Circuit Breaker | Behind left side of dash. |
| Slow Blow Fuse (SBF) | On left side of engine compartment. |
