Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

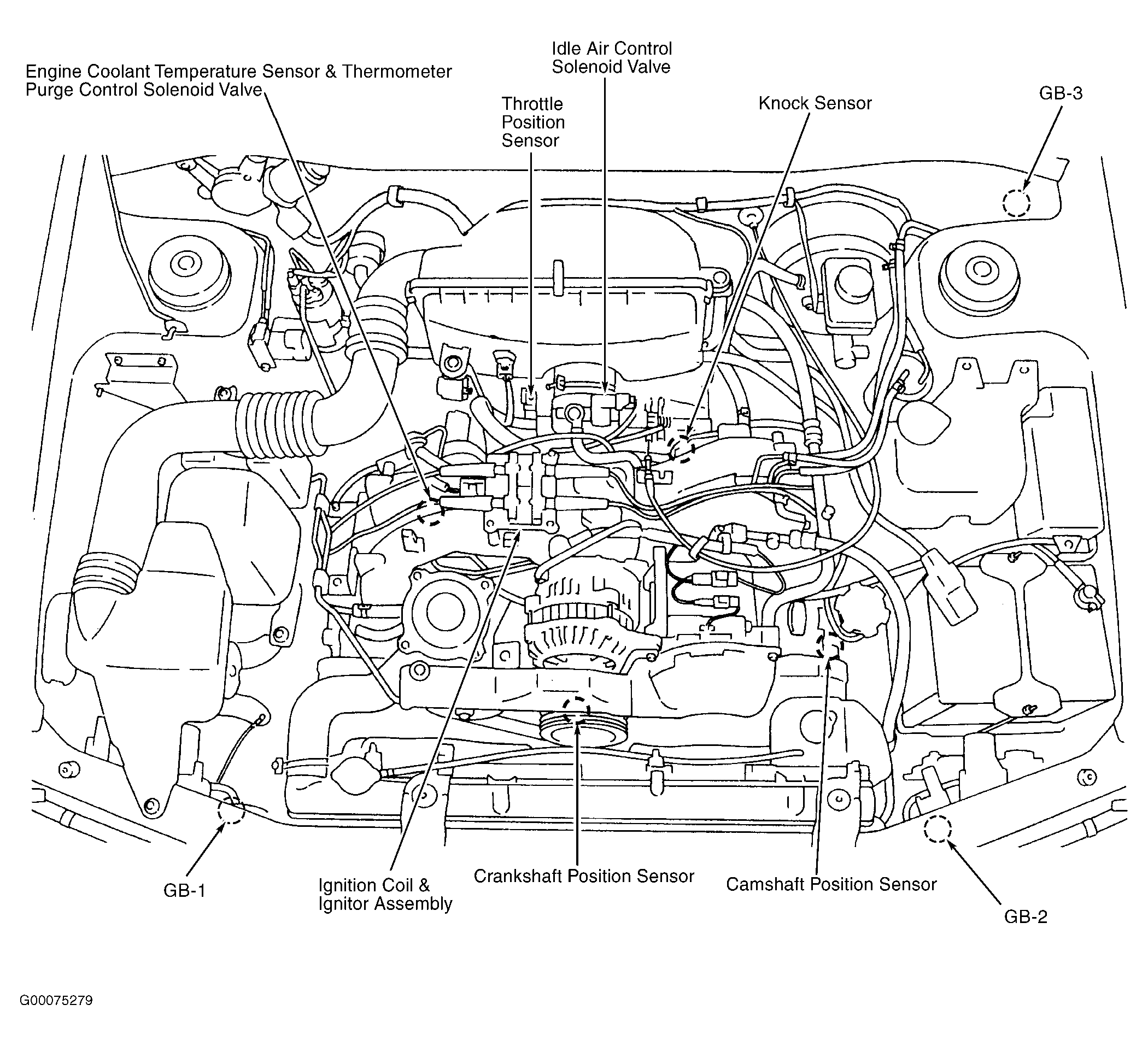

Fig 1: Engine Compartment

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Fuse & Relay Box

Courtesy of SUBARU OF AMERICA, INC.

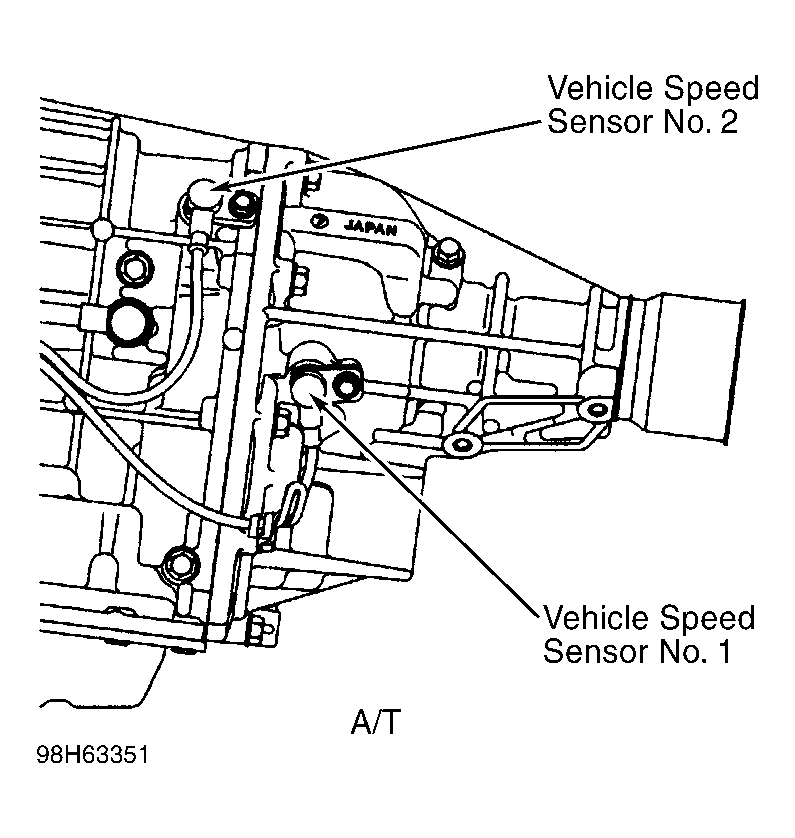

Fig 3: Left Rear Of Transmission (A/T)

Courtesy of SUBARU OF AMERICA, INC.

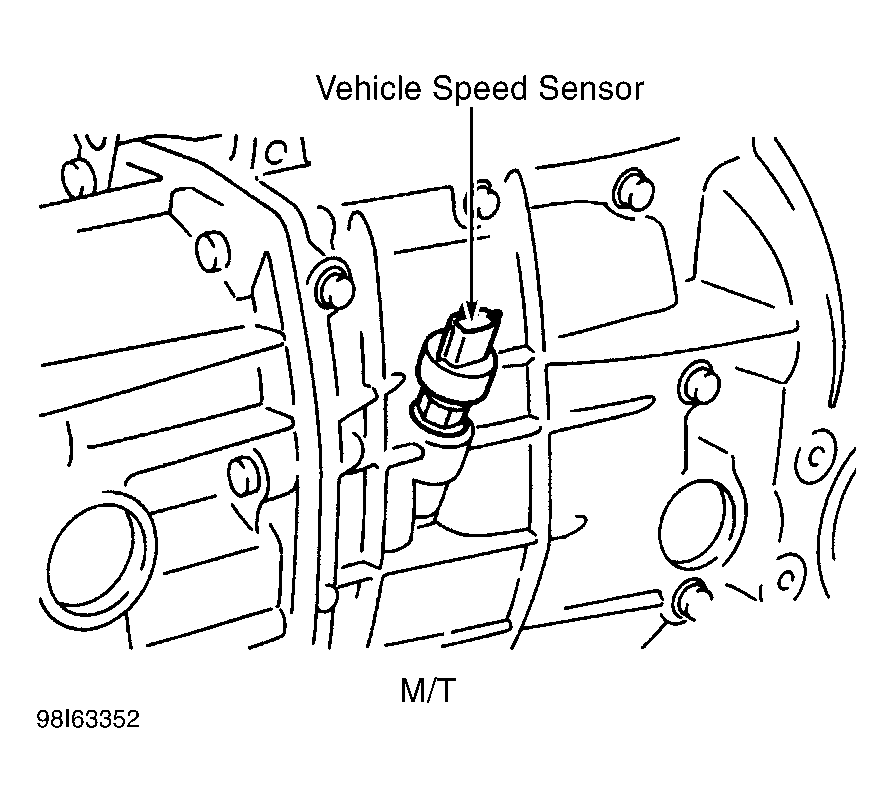

Fig 4: Right Side Of Transmission (M/T)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Fuel Tank Assembly

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Overview Of Vehicle

Courtesy of SUBARU OF AMERICA, INC.
