Identification & Specifications: Specifications: Electrical

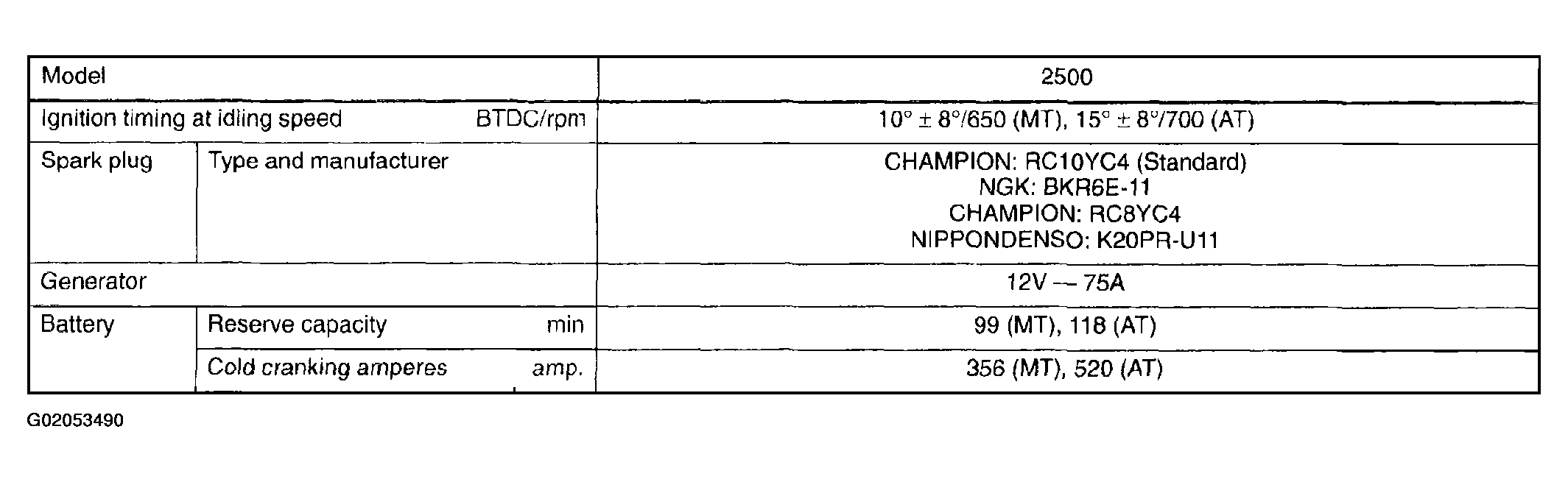

Fig 1: Electrical Specifications

G02053490
