Tilt Mechanism

The steering wheel vertical position can easily be adjusted within 32 mm (1.26 in) range, by using the tilt lever to release the steering column and locking it at the desired position.

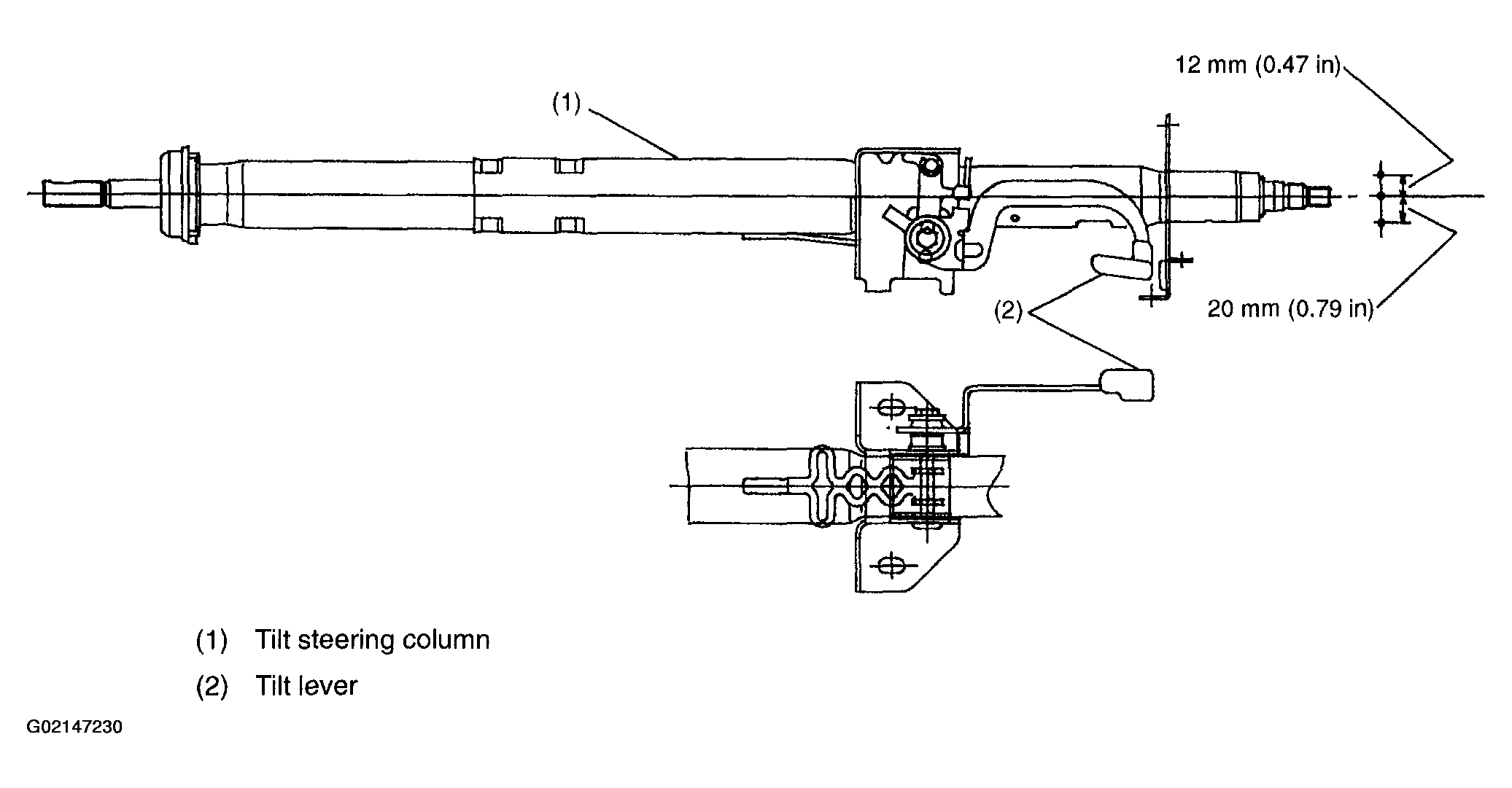

Fig 1: Identifying Tilt Steering Column
