Rear Suspension

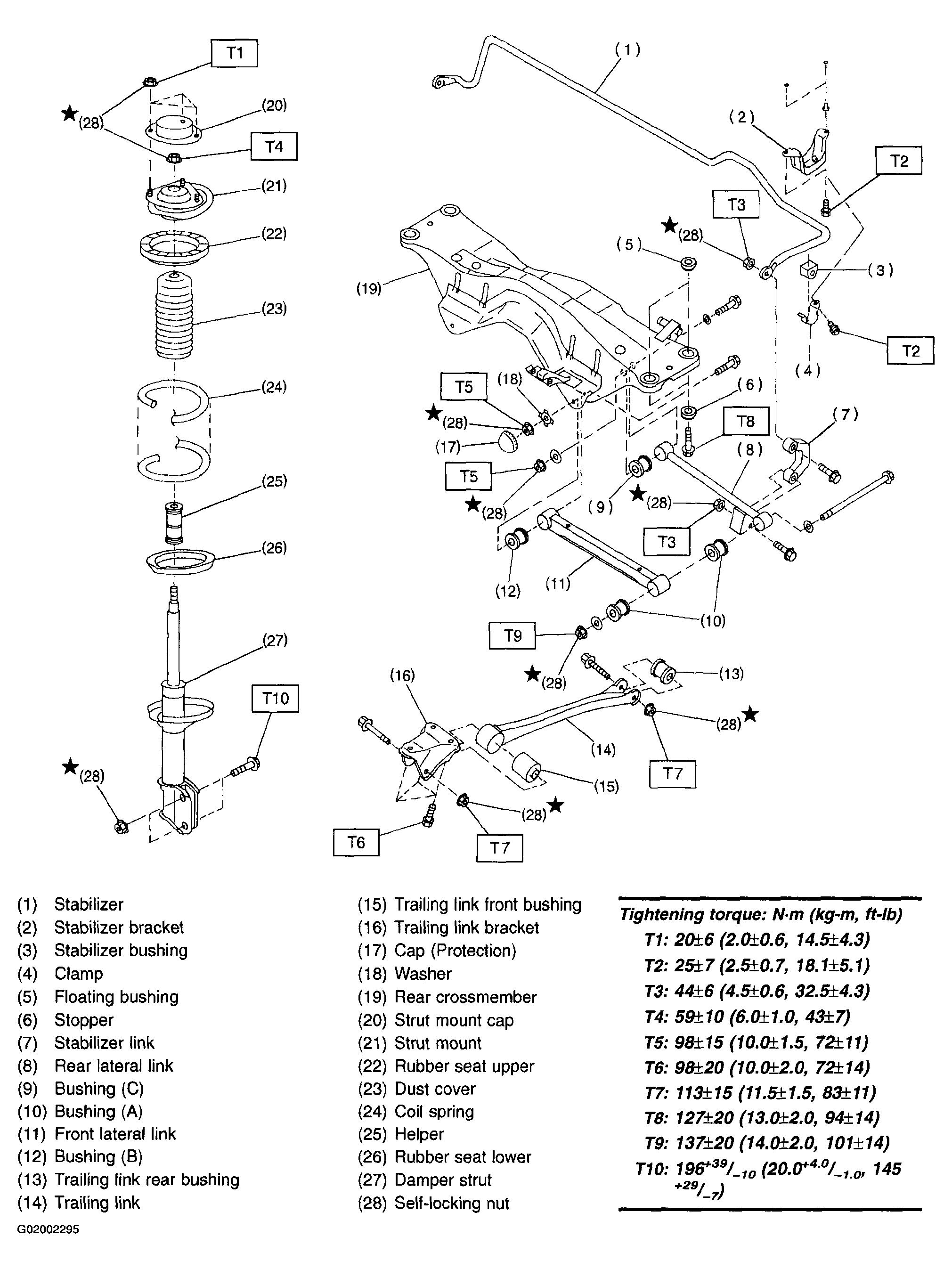

Fig 1: Identifying Rear Suspension Components

Tightening torque: N.m (kg-m, ft-lb)

1. T1:  20+/-6 (2.0+/-0.6, 14.5+/-4.3)
2. T2:  25+/-7 (2.5+/-0.7, 18.1+/-5.1)
3. T3:  44+/-6 (4.5+/-0.6, 32.5+/-4.3)
4. T4:  59+/-10 (6.0+/-1.0, 43+/-7)
5. T5:  98+/-15 (10.0+/-1.5, 72+/-11)
6. T6:  98+/-20 (10.0+/-2.0, 72+/-14)
7. T7:  113+/-15 (11.5+/-1.5, 83+/-11)
8. T8:  127+/-20 (13.0+/-2.0, 94+/-14)
9. T9:  137+/-20 (14.0+/-2.0, 101+/-14)
10. T10:  196^+39/-10 (20.0^+4.0/-1.0 , 145^+29/-7 )
