Gear Shift Lever: Installation

Install the joint to the transmission and secure with the straight pin.
Insert gear shift lever from room side.
NOTE: After inserting rod and stay, temporarily put them onto transmission mount.

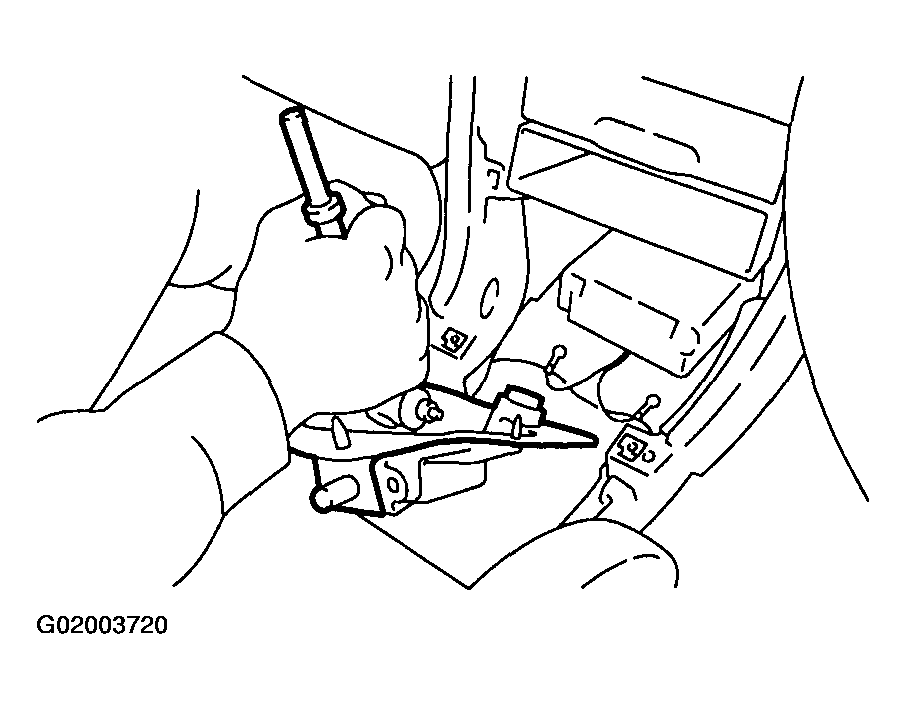

Fig 1: Inserting Gear Shift Lever From Room Side
Mount cushion rubber on the body.
Tightening torque: 18+/-5 N.m (1.8+/-0.5 kg-m, 13.0+/-3.6 ft-lb)

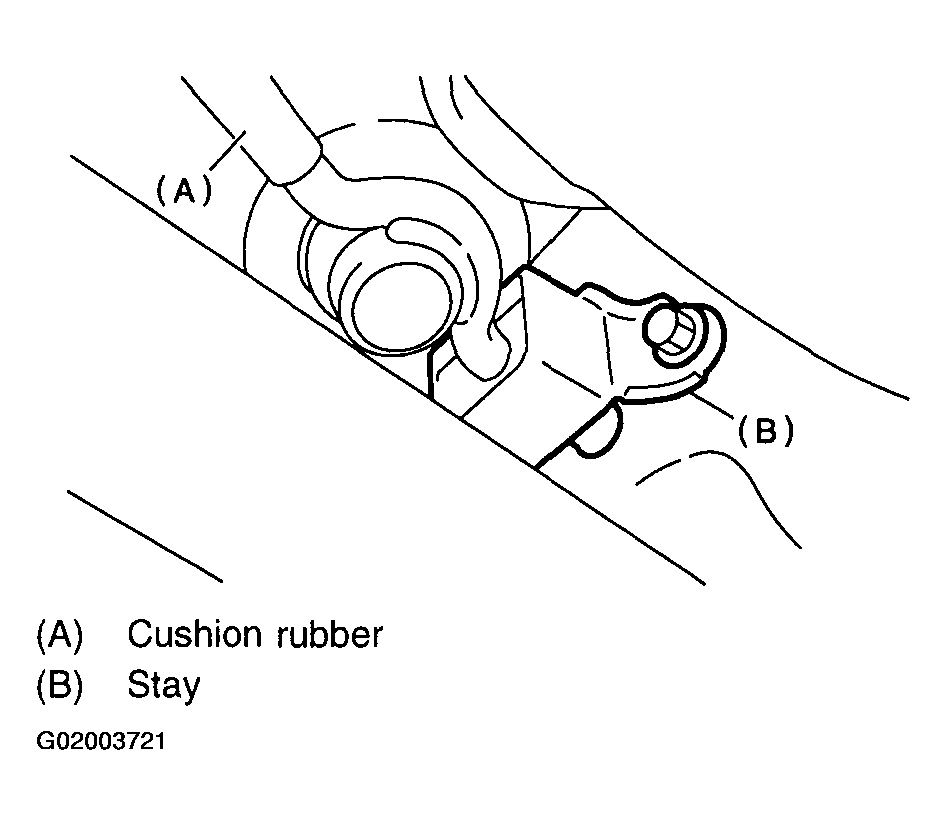

Fig 2: Installing Cushion Rubber On Body
Connect rod to the joint.
Tightening torque: 18+/- N.m (1.8+/-0.5 kg-m, 13.0+/-3.6 ft-lb)

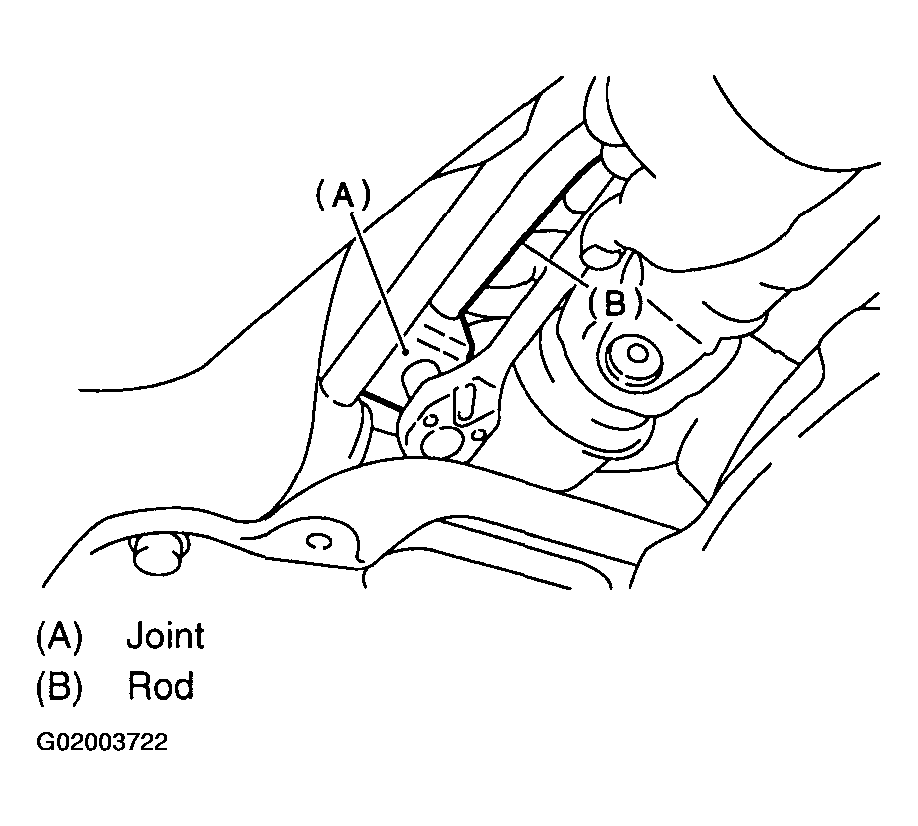

Fig 3: Connecting Rod To Joint
Connect stay to transmission bracket.
Tightening torque: 18+/-5 N.m (1.8+/-0.5 kg-m, 13.0+/-3.6 ft-lb)

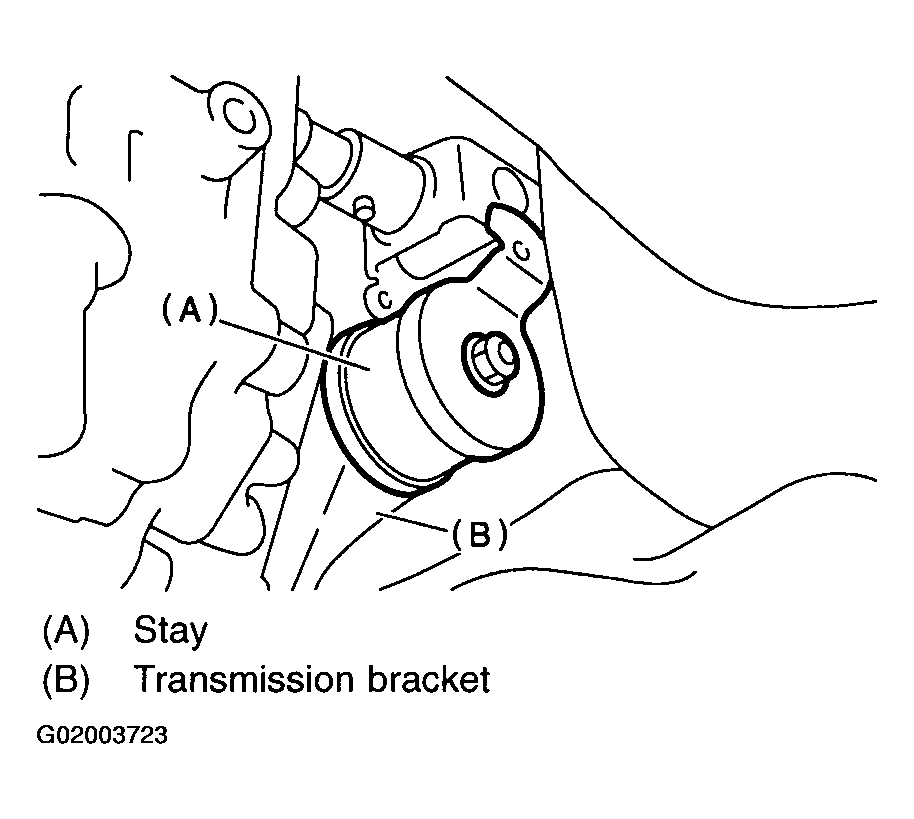

Fig 4: Connecting Stay To Transmission Bracket
Install heat shield cover.

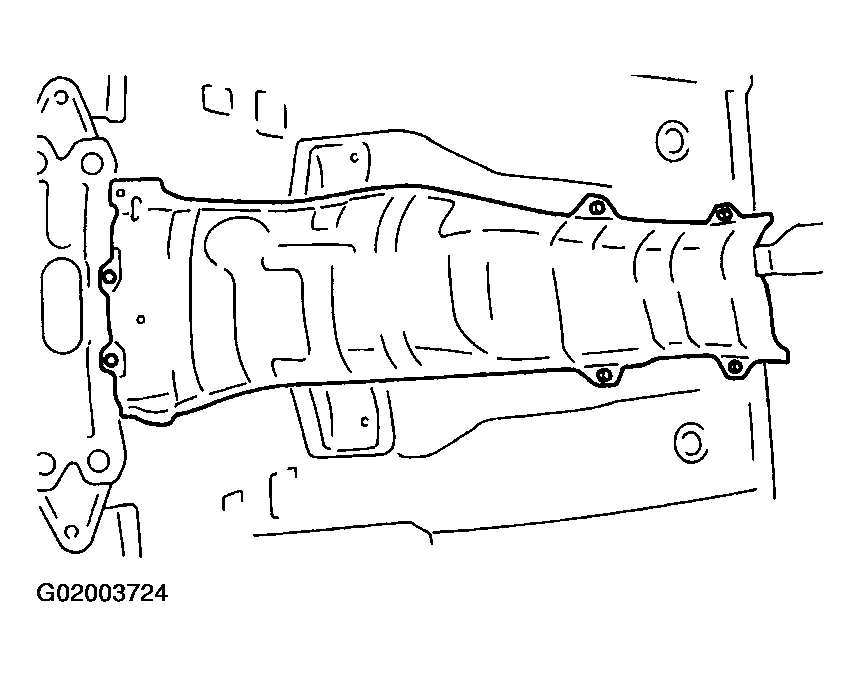

Fig 5: Installing Heat Shield Cover
Install rear exhaust pipe to muffler.
Tightening torque: 18+/-5 N.m (1.8+/-0.5 kg-m, 13.0+/-3.6 ft-lb)

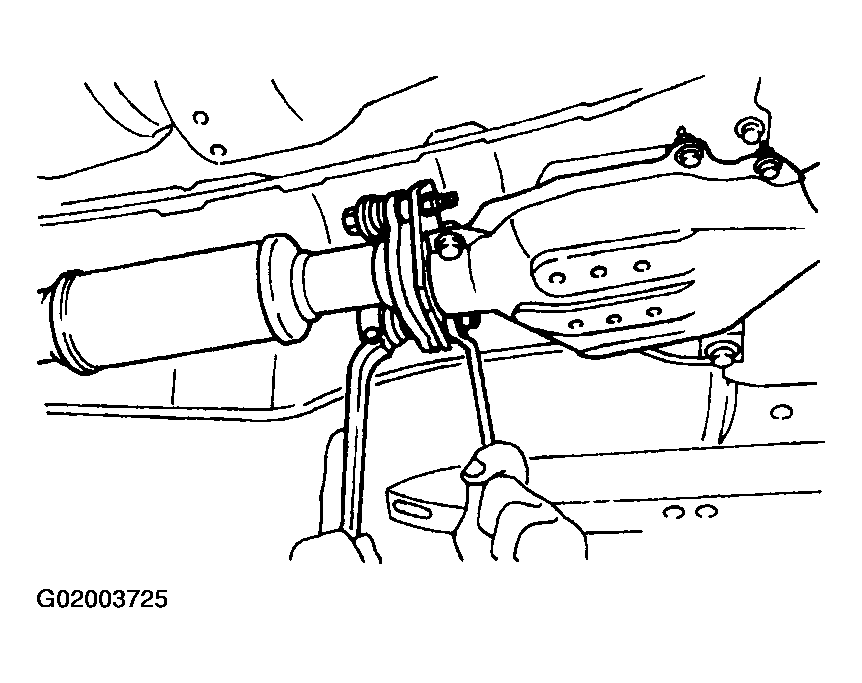

Fig 6: Installing Rear Exhaust Pipe To Muffler
Mount boot plate on body.
Tightening torque: 4.5+/-1.5 N.m (0.46+/-0.15 kg-m, 3.3+/-1.1 ft-lb)

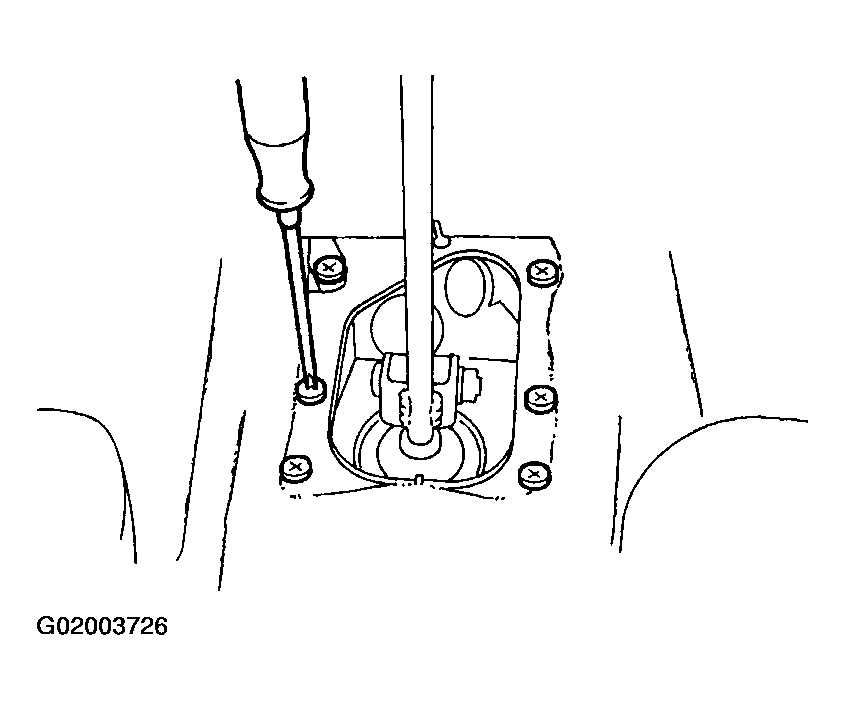

Fig 7: Mounting Boot Plate On Body
Install front cover, console boot and gear shift knob, see FRONT COVER - CENTER CONSOLE .
