Select Lever: Assembly

  1. Clean all parts before assembly.
  2. Apply grease to each part (NIGTIGHT LYW No. 2 or equivalent). See Figure .
  3. Assemble in the reverse order of disassembly.
    NOTE:
    • When installing the lock plate, be careful to position it in the correct direction.

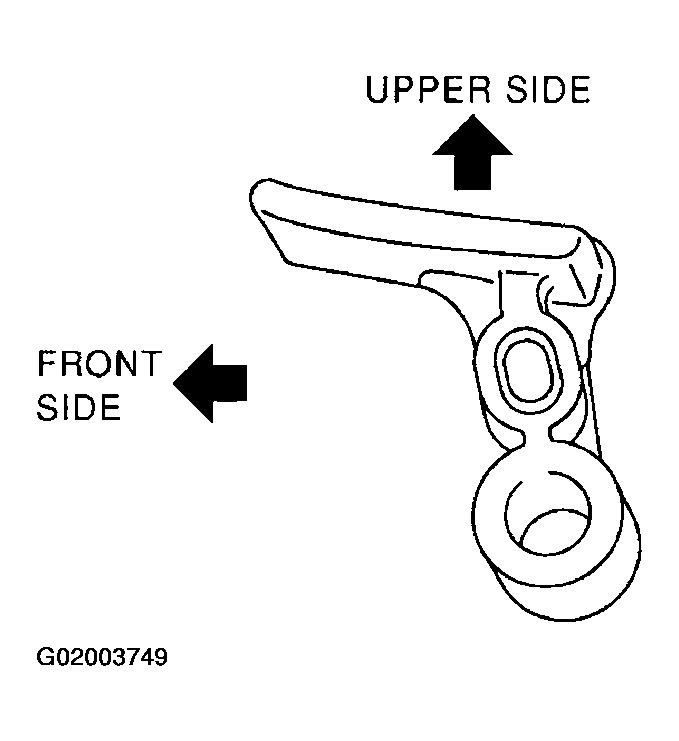

      Fig 1: Installing Lock Plate
      G02003749
    • Be careful to install the spring and button into the select lever grip in the correct direction.

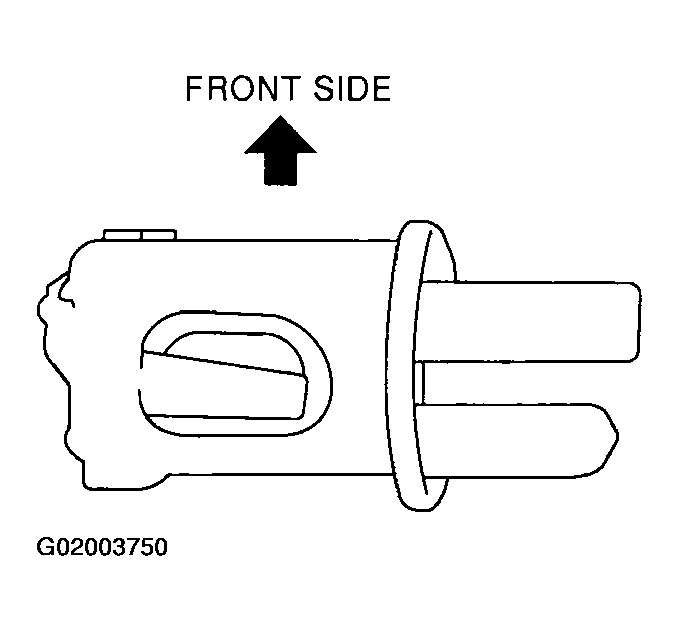

      Fig 2: Installing Spring & Button Into Select Lever Grip
      G02003750
  4. After completing the fitting, transfer the select lever to position "P"-"1", then check whether the indicator and select lever agree, whether the pointer and select lever agree, and what the operating force is.
