Select Lever: Removal

  1. Move the select lever to the "N" position.
  2. Remove heat shield cover.

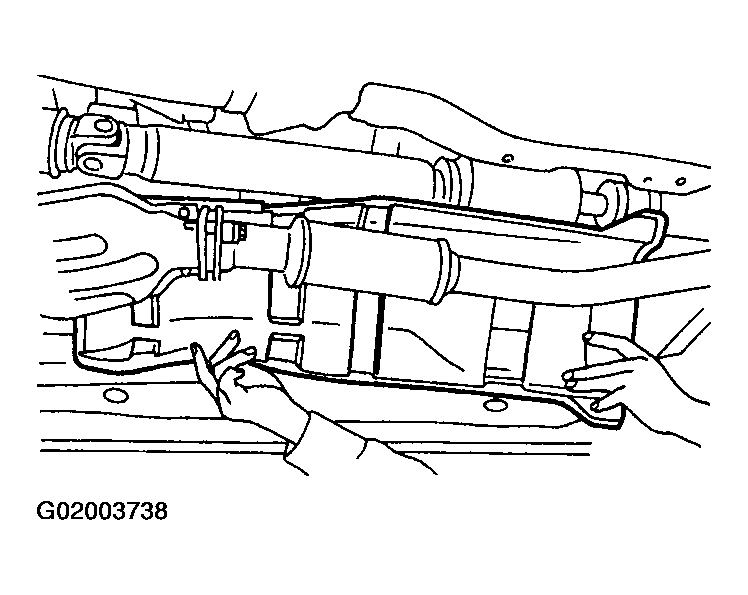

    Fig 1: Removing heat shield cover
    G02003738
  3. Disconnect cable from select lever and then remove cable bracket.

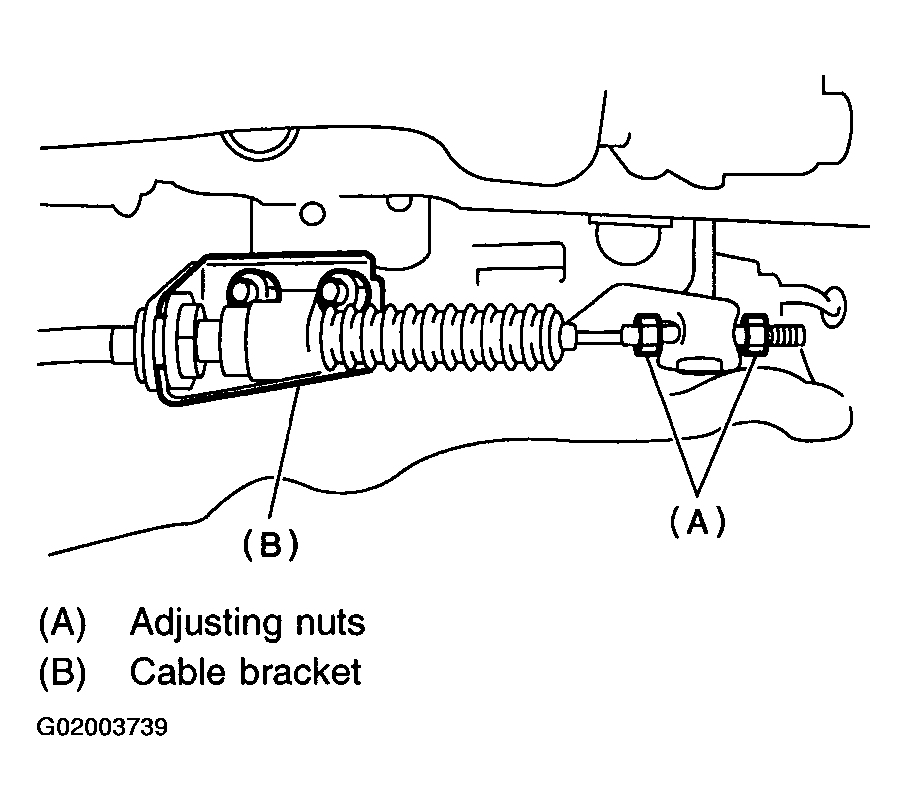

    Fig 2: Disconnecting Cable From Select Lever
    G02003739
  4. Remove front cover, for reference, see FRONT COVER - CENTER CONSOLE  .
  5. Disconnect connectors, and remove the stay.
  6. Remove the six bolts to take out the select lever assembly from body.

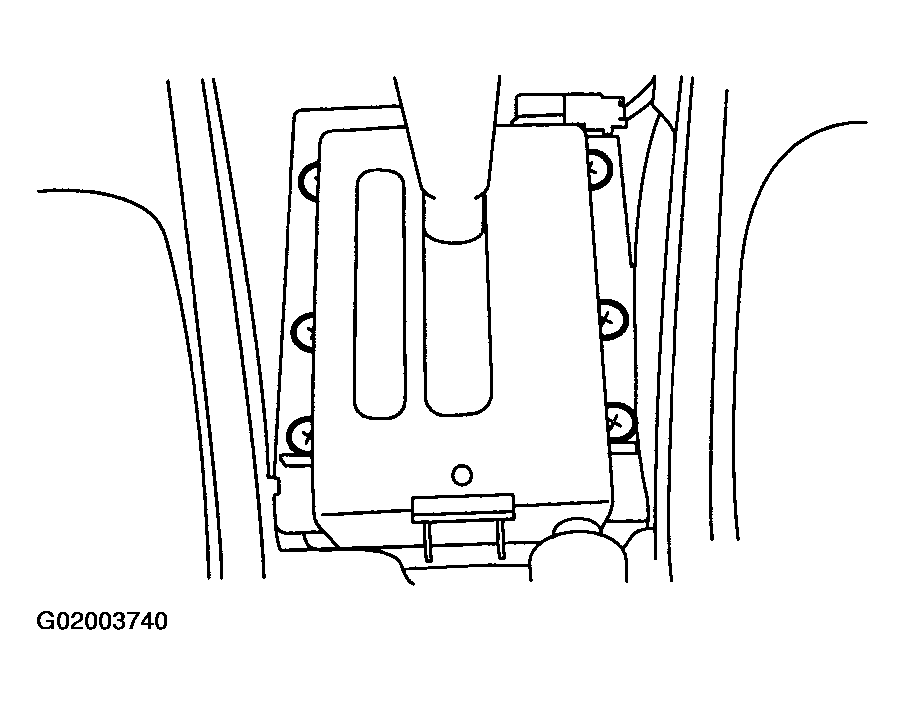

    Fig 3: Removing Six Bolts To Take Out Select Lever
    G02003740
