Electronic-Hydraulic Control System: General

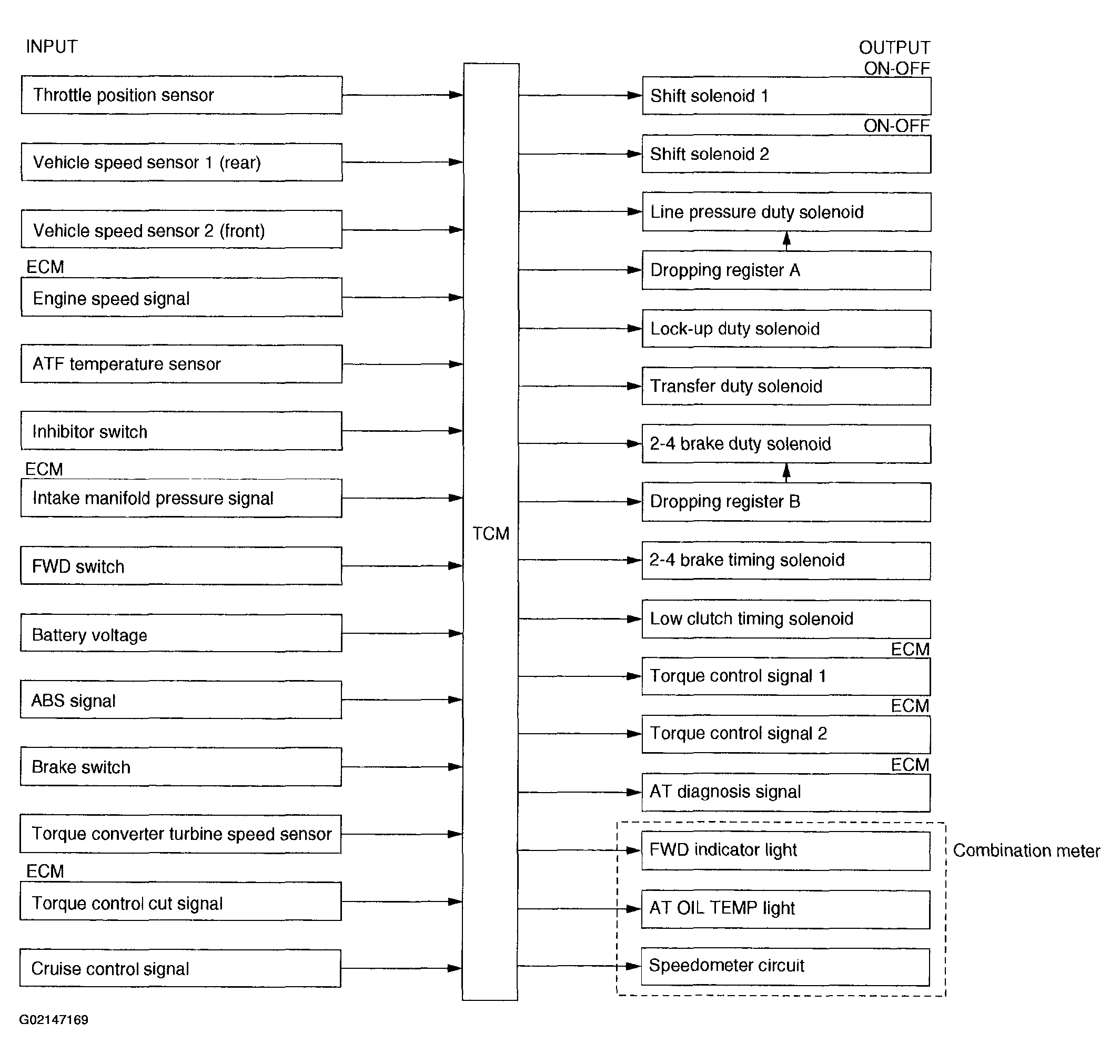

The electronic-hydraulic control system consists of various sensors and switches, a transmission control module (TCM) and the hydraulic controller including solenoid valves. The system controls the transmission proper including shift control, lock-up control, timing control, reverse inhibit control, engine control, line pressure control, auto pattern select control and shift timing control. It also controls the AWD transfer clutch. In other words, the system detects various operating conditions from various input signals and sends output signals to shift solenoids 1 and 2, low clutch timing solenoid, 2-4 brake timing solenoid, line pressure, lock-up, transfer and 2-4 brake duty solenoids (a total of eight solenoids).
