Transfer Duty Solenoid

This solenoid is mounted to the transfer control valve on the rear end of transmission case, and its duty ratio is controlled by the signal sent from TCM. It then controls the transfer control valve for controlling the transfer clutch hydraulic oil pressure.

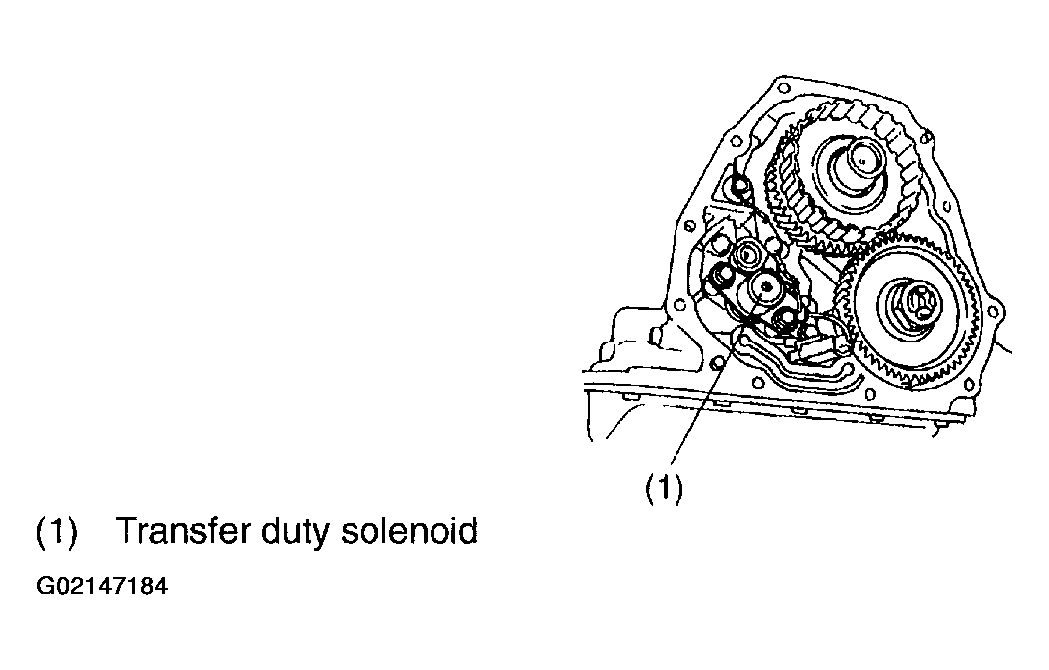

Fig 1: Identifying Transfer Duty Solenoid
G02147184
