On-Board Diagnostics System: Function

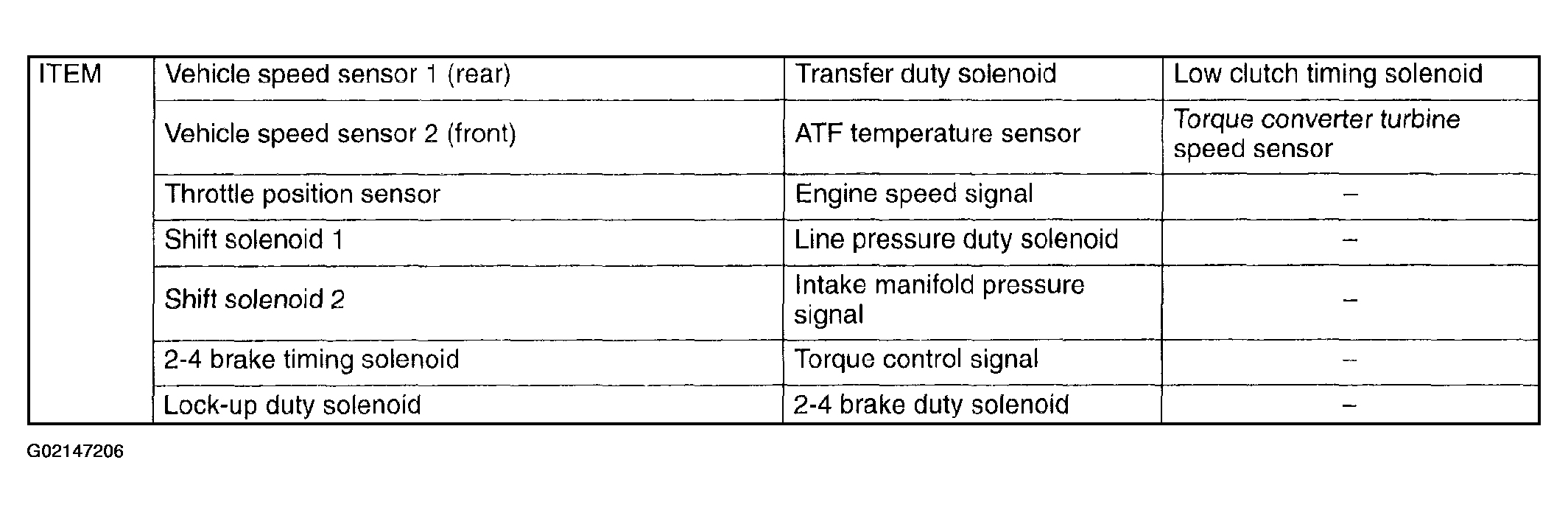

The on-board diagnostics system is capable of detecting any trouble which has occurred in any of the following input and output signal systems.
The results of on-board diagnostics are displayed by flashing ATF Temperature indicator light.
- Repeated flashing at 4 Hz ...Error such as battery trouble
- Repeated flashing at 2 Hz ...Normal
- Output of trouble code ...Check faulty portion
- Continued lighting of light ...Error in inhibitor switch, idle switch, or wiring
