P Range

All controls do not operate, just as in the N range. The parking pawl locks the power train by pawling the parking gear which is integrated with the reduction drive gear.

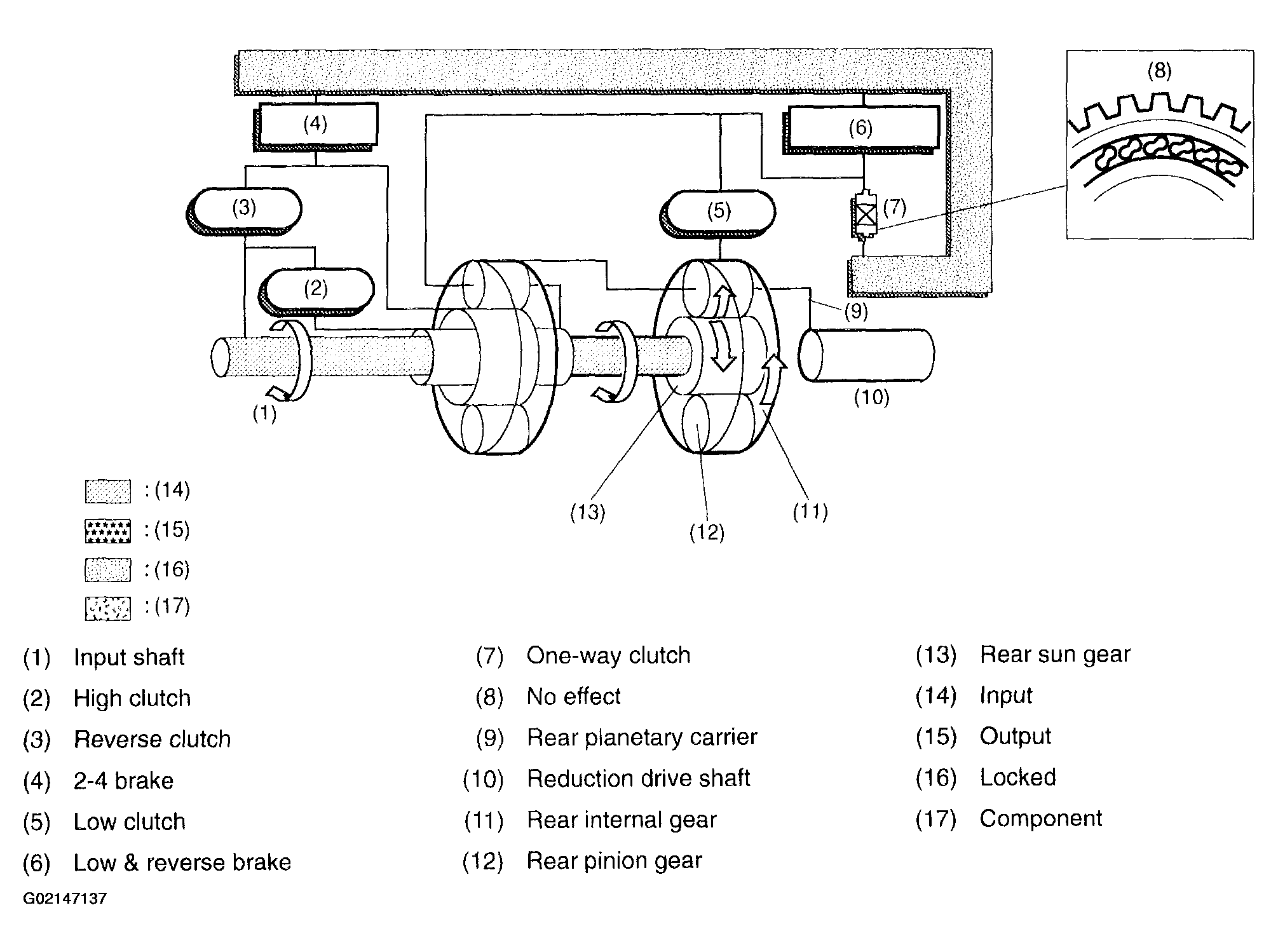

Fig 1: P Range - Operation (1 Of 2)

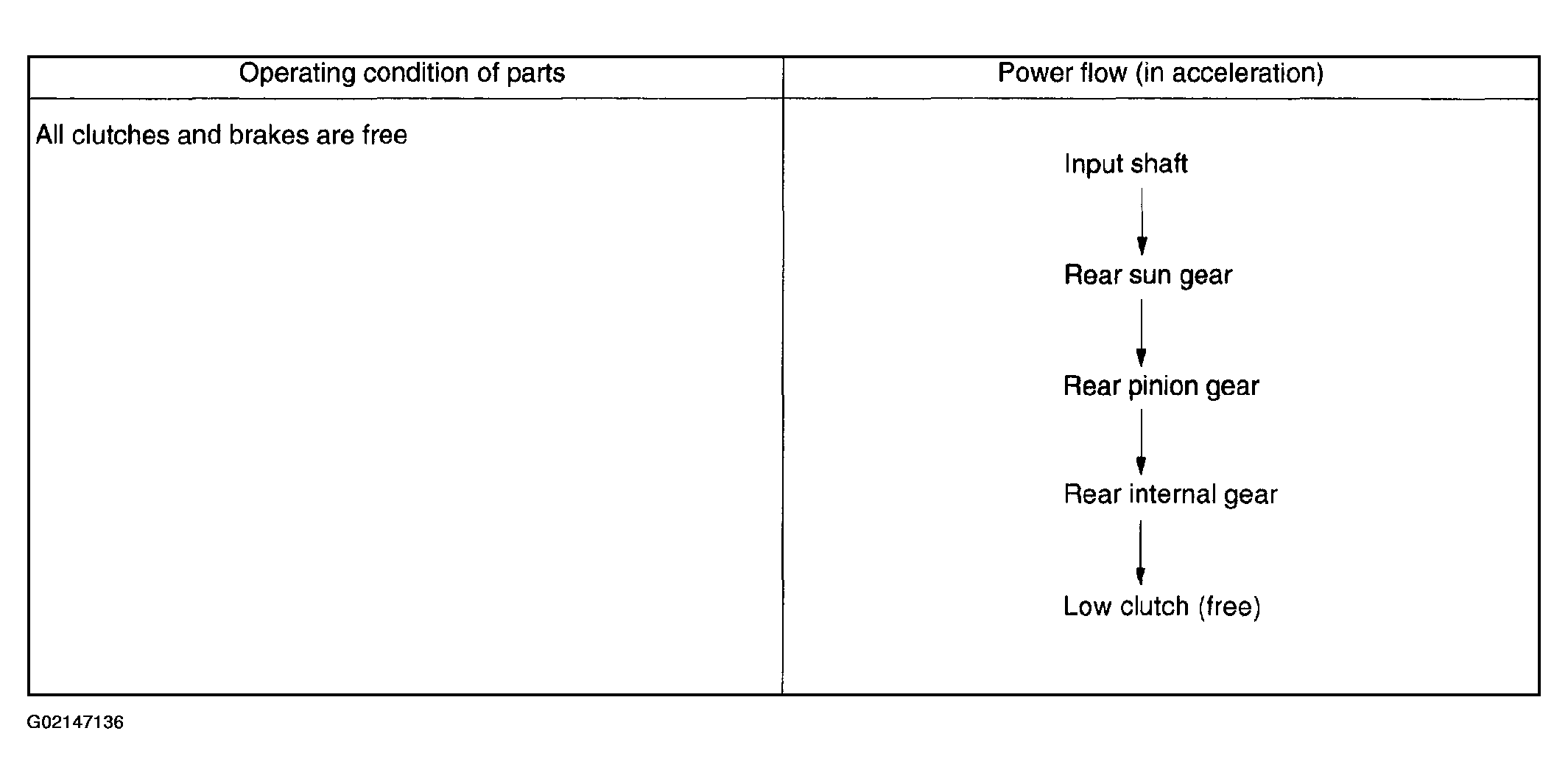

Fig 2: P Range - Operation (2 Of 2)
