During Operation

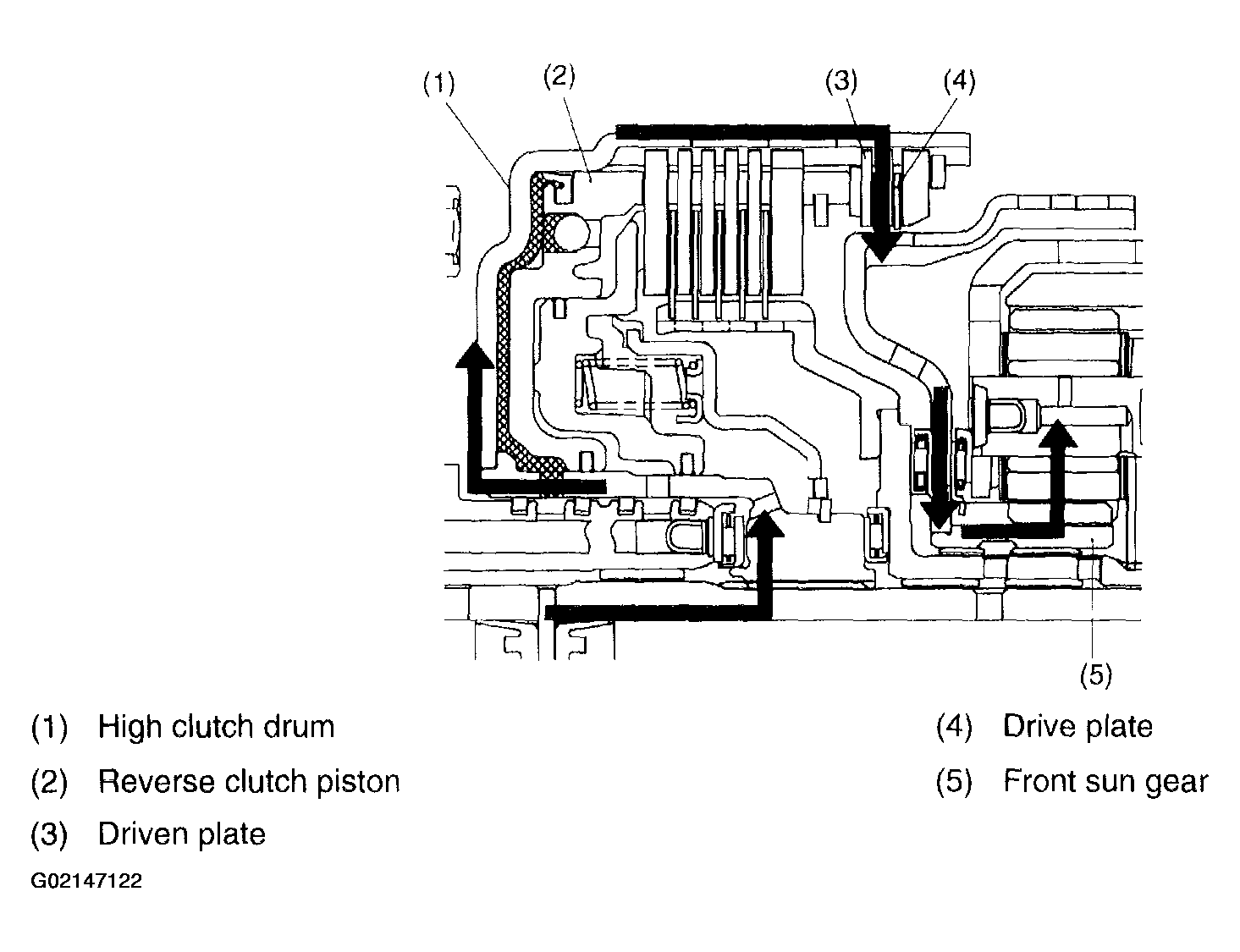

Hydraulic pressure is applied to the reverse clutch piston from the control valve when shifting in reverse. The drive plate and driven plate are connected by this pressure, and engine power from the high clutch drum is transmitted to the front sun gear through the 2-4 brake hub.
