First Speed Of 1 Range

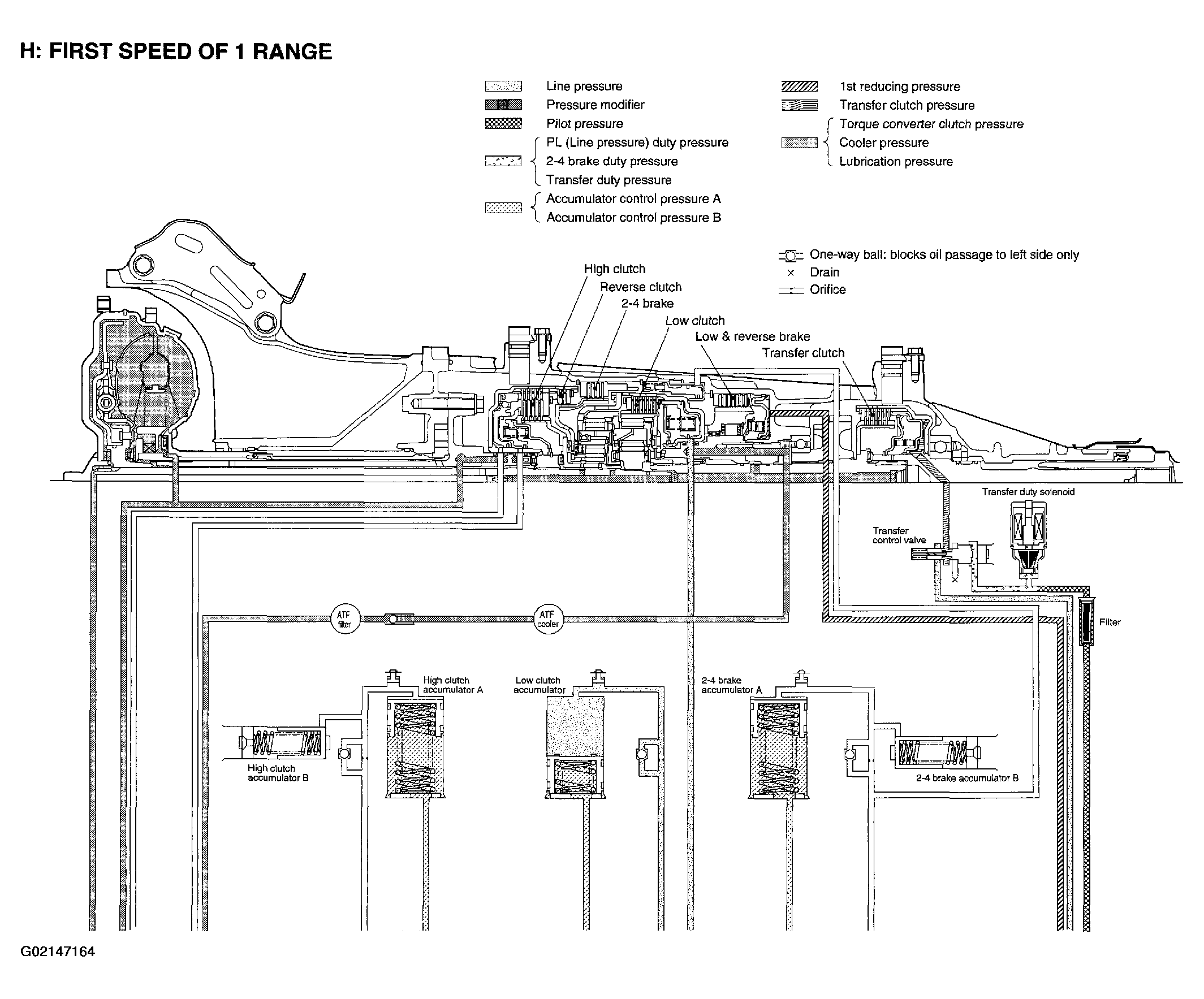

Fig 1: First Speed Of 1 Range - Schematic Drawing (1 Of 2)
G02147164

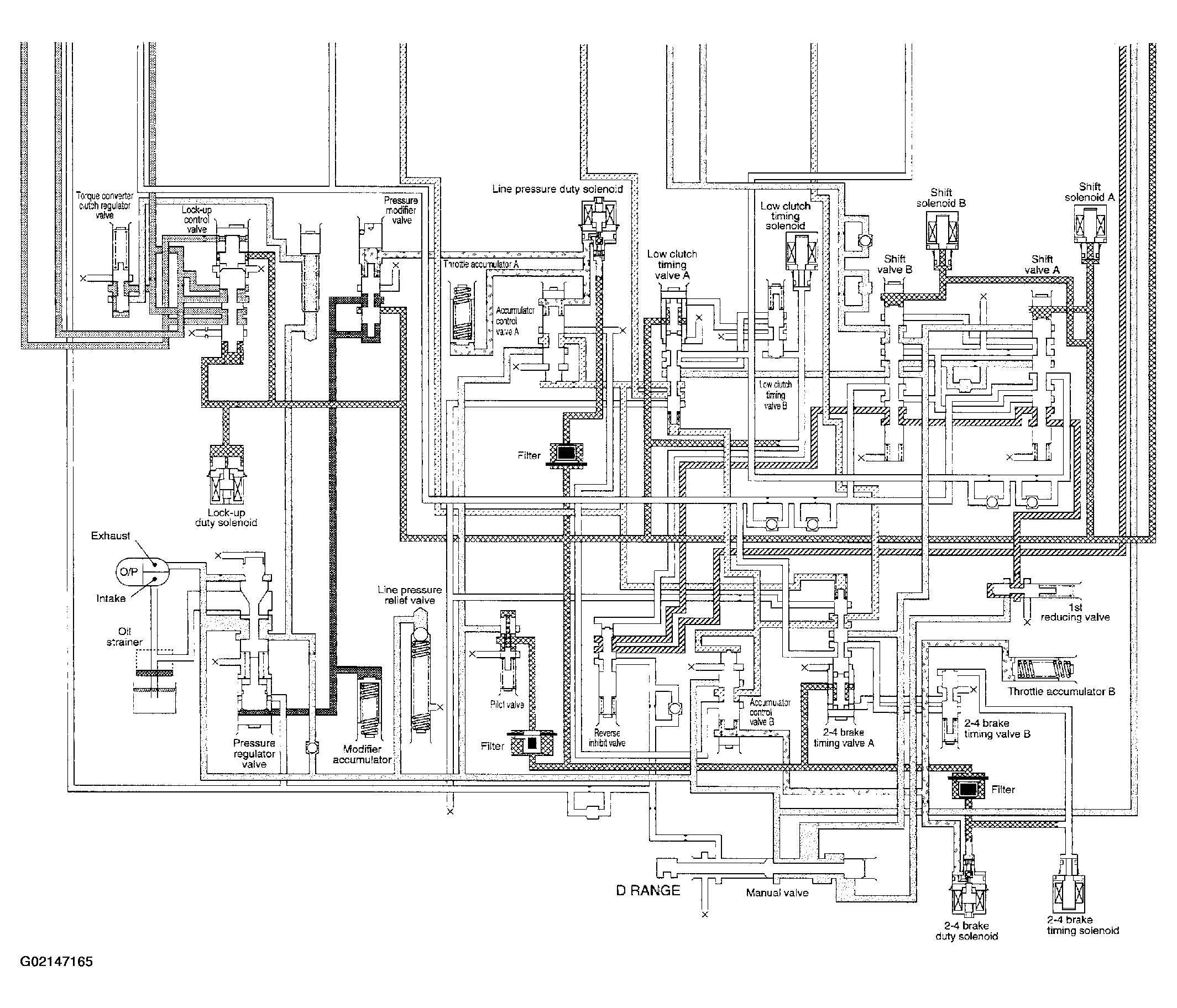

Fig 2: First Speed Of 1 Range - Schematic Drawing (2 Of 2)
G02147165
