Control System

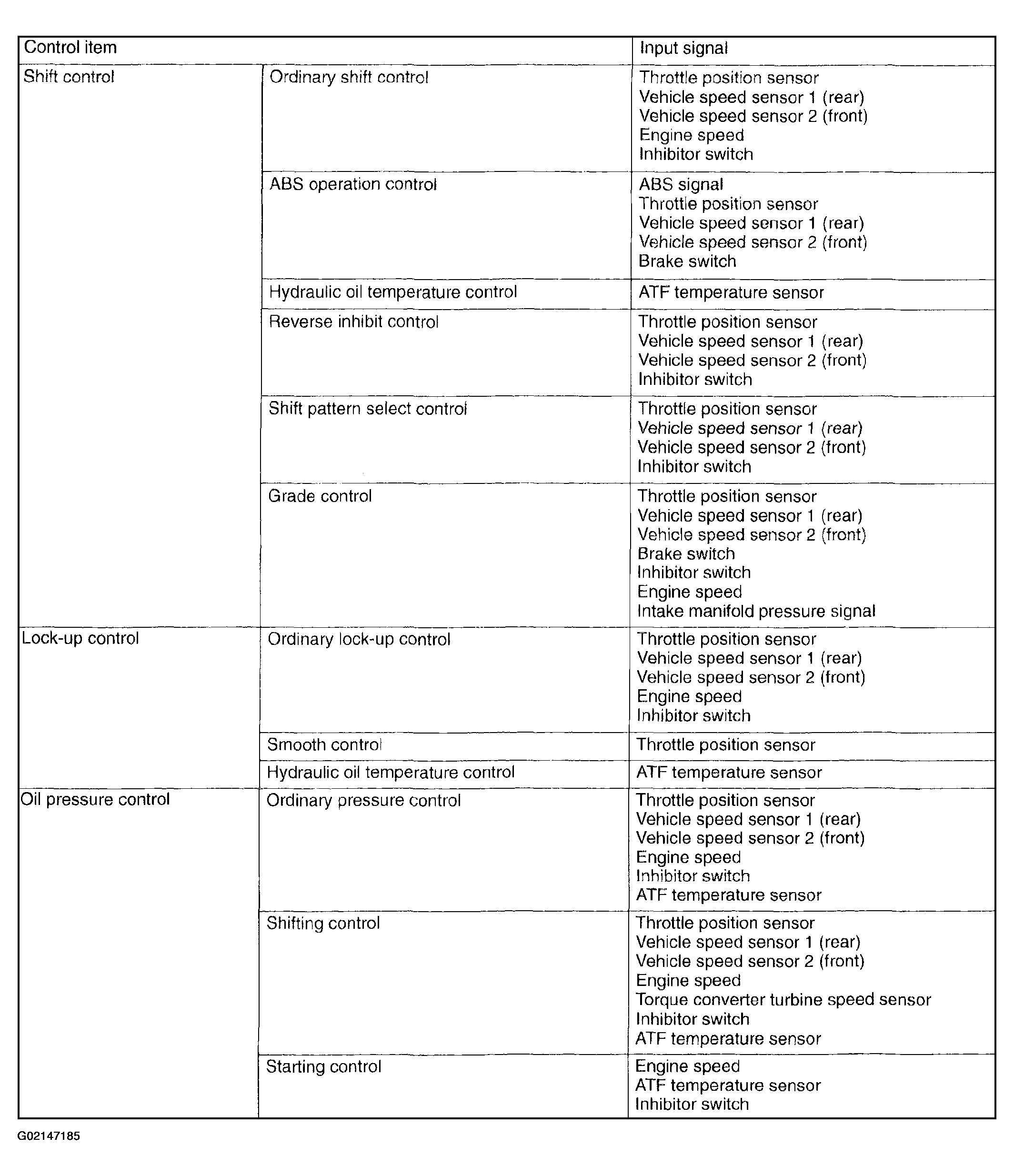

Fig 1: Control System Chart (1 Of 2)

G02147185

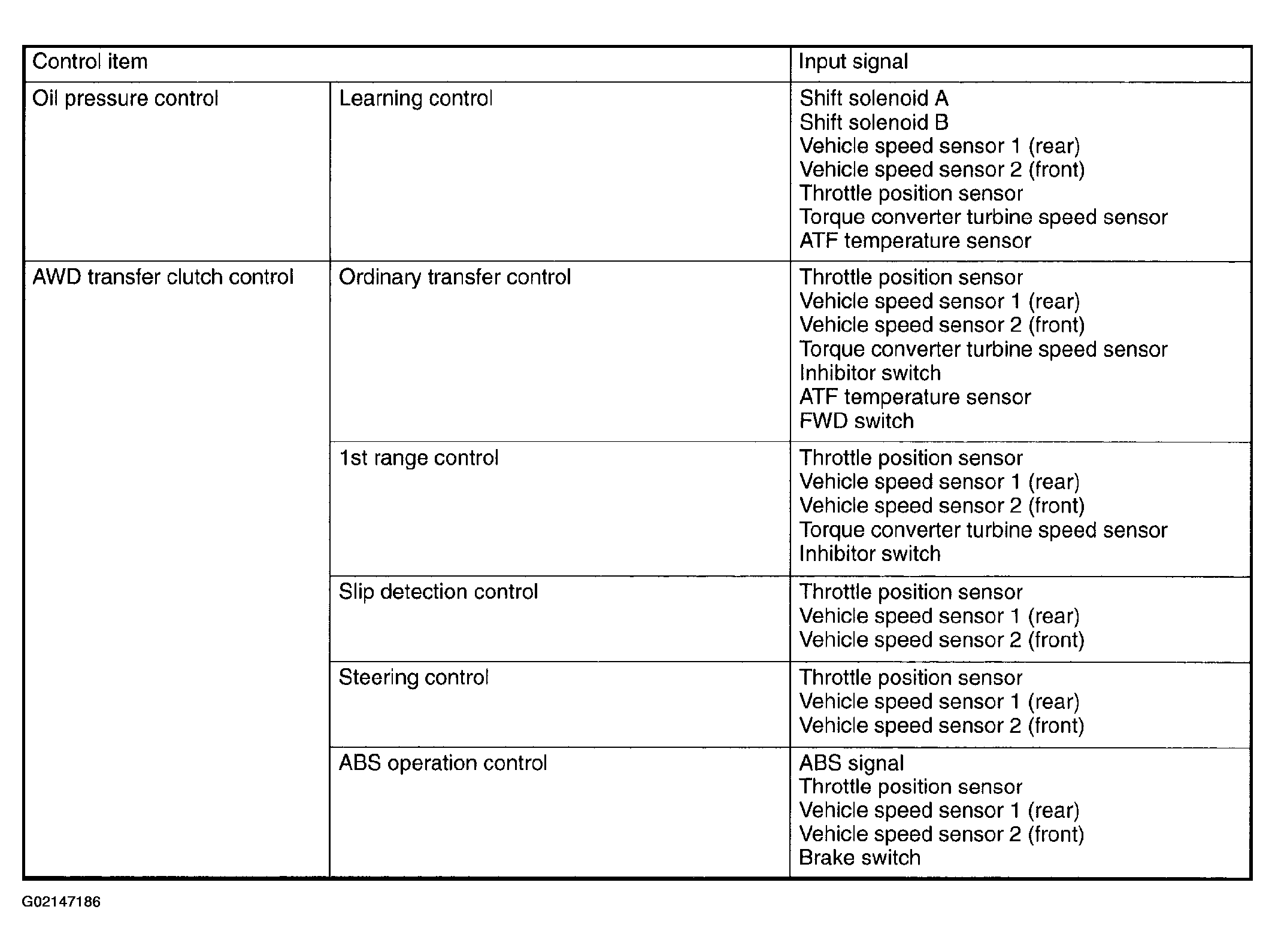

Fig 2: Control System Chart (2 Of 2)

G02147186
