Grade Control

While a vehicle is driving up a hill, gear position is fixed to 3rd gear for avoiding busy up and down shift between 3rd - 4th gears.

When a vehicle is descending a steep hill under the designated vehicle speed (approximately 50 miles/hour), 4th gear downshifts to 3rd gear automatically by depressing the brake pedal.

This gearshift control is released by re-accelerating with depressing the accelerator pedal.

These controls are doing this based on the combination of throttle opening angle, engine speed, vehicle speed and so on.

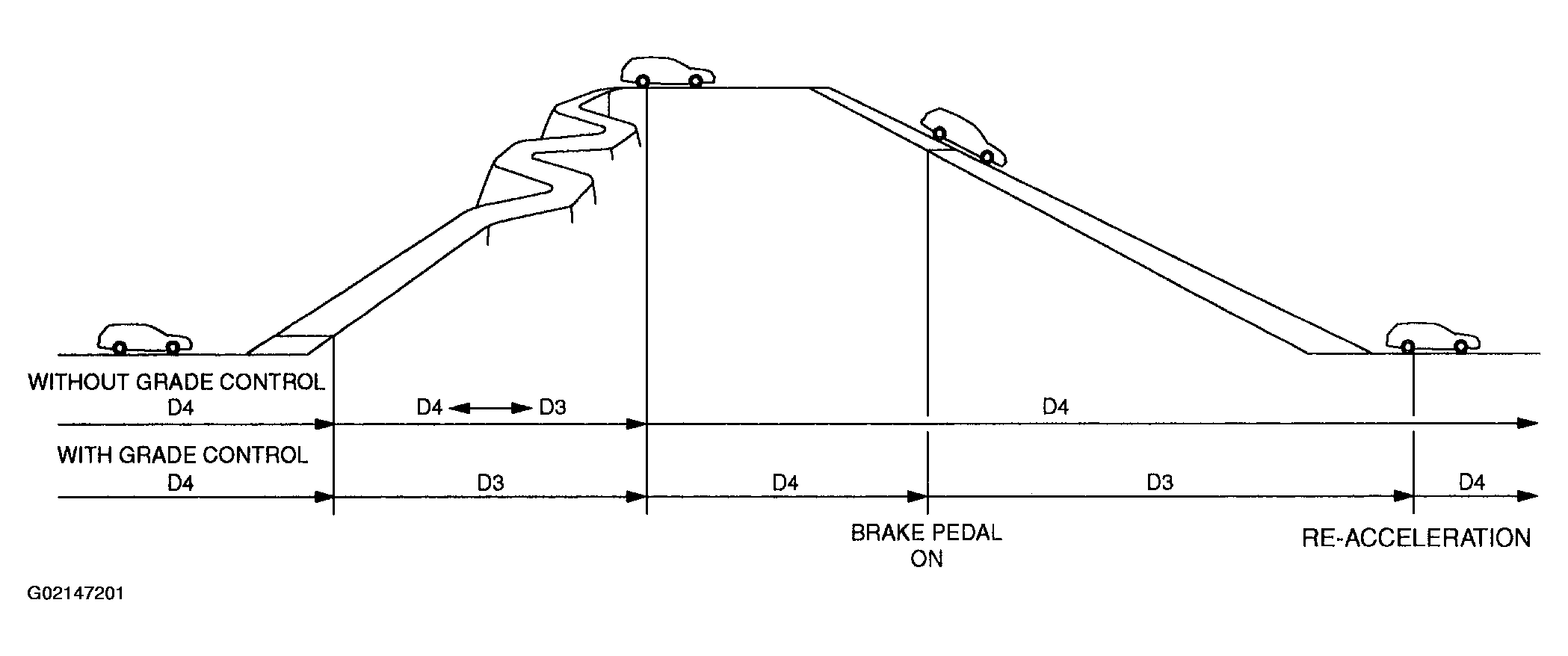

Fig 1: Grade Control Chart (1 Of 2)
G02147201

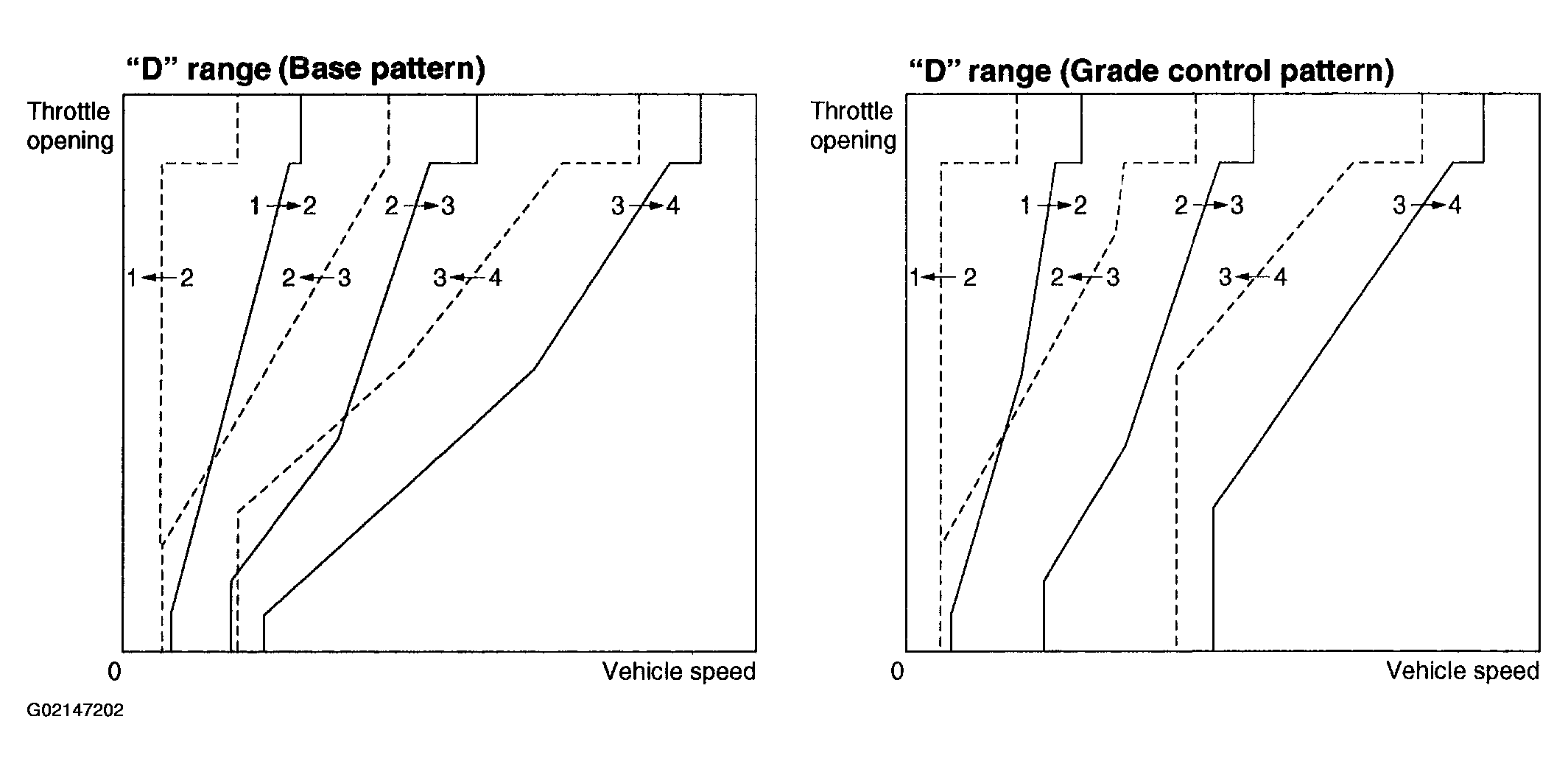

Fig 2: Grade Control Chart (2 Of 2)
G02147202
