Base Pattern To Power Pattern

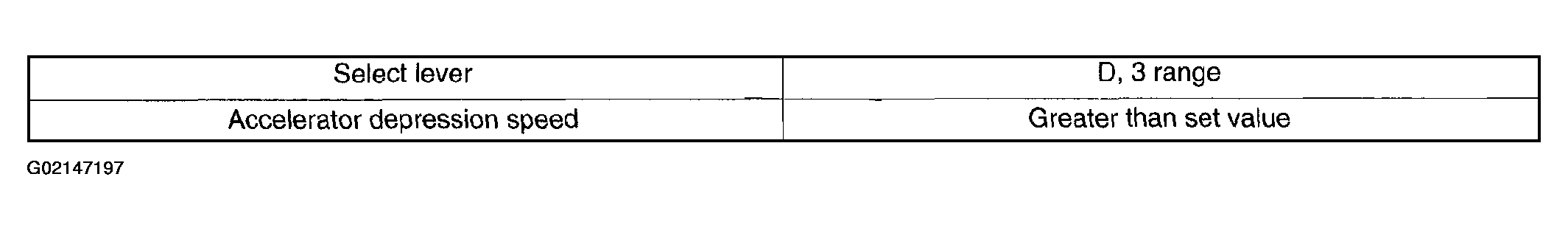

Fig 1: Base Pattern To Power Pattern
G02147197

Depending on throttle opening and vehicle speed, 16 areas as shown in the figure are set. Accelerator depression speed for pattern changeover is set for each area.

When the accelerator depression speed exceeds this set value, the pattern changes from base to power.

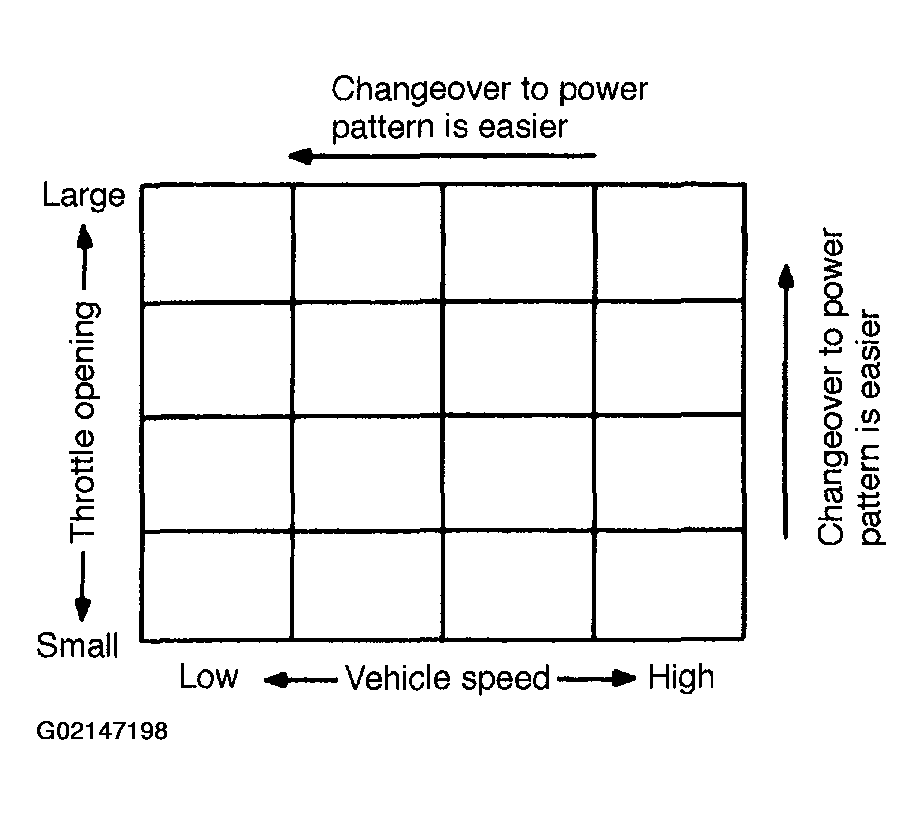

Fig 2: Base Pattern To Power Pattern - Pattern Changeover
G02147198
