Shift Pattern Select Control: Notes

Shift pattern is selectable automatically between a base pattern suitable for ordinary economy running and a power pattern suitable for climbing uphill or rapid acceleration.

In the power pattern, the shift down point and shift up point are set higher than those of the base pattern.

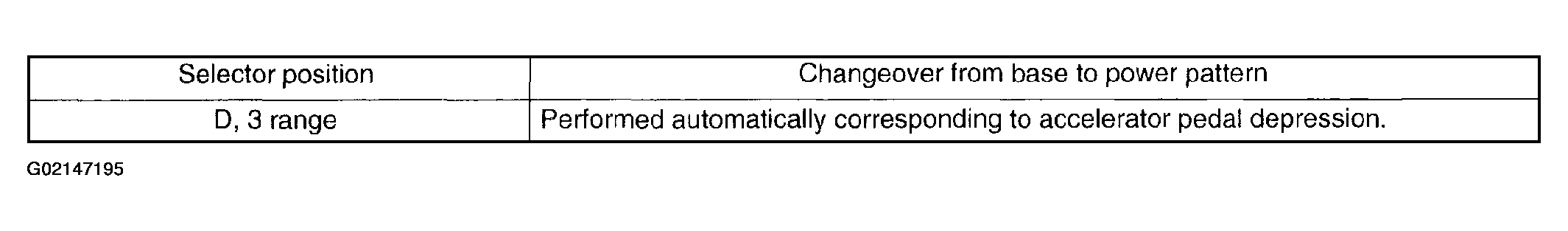

Fig 1: Shift Pattern Select Control Chart (1 Of 2)

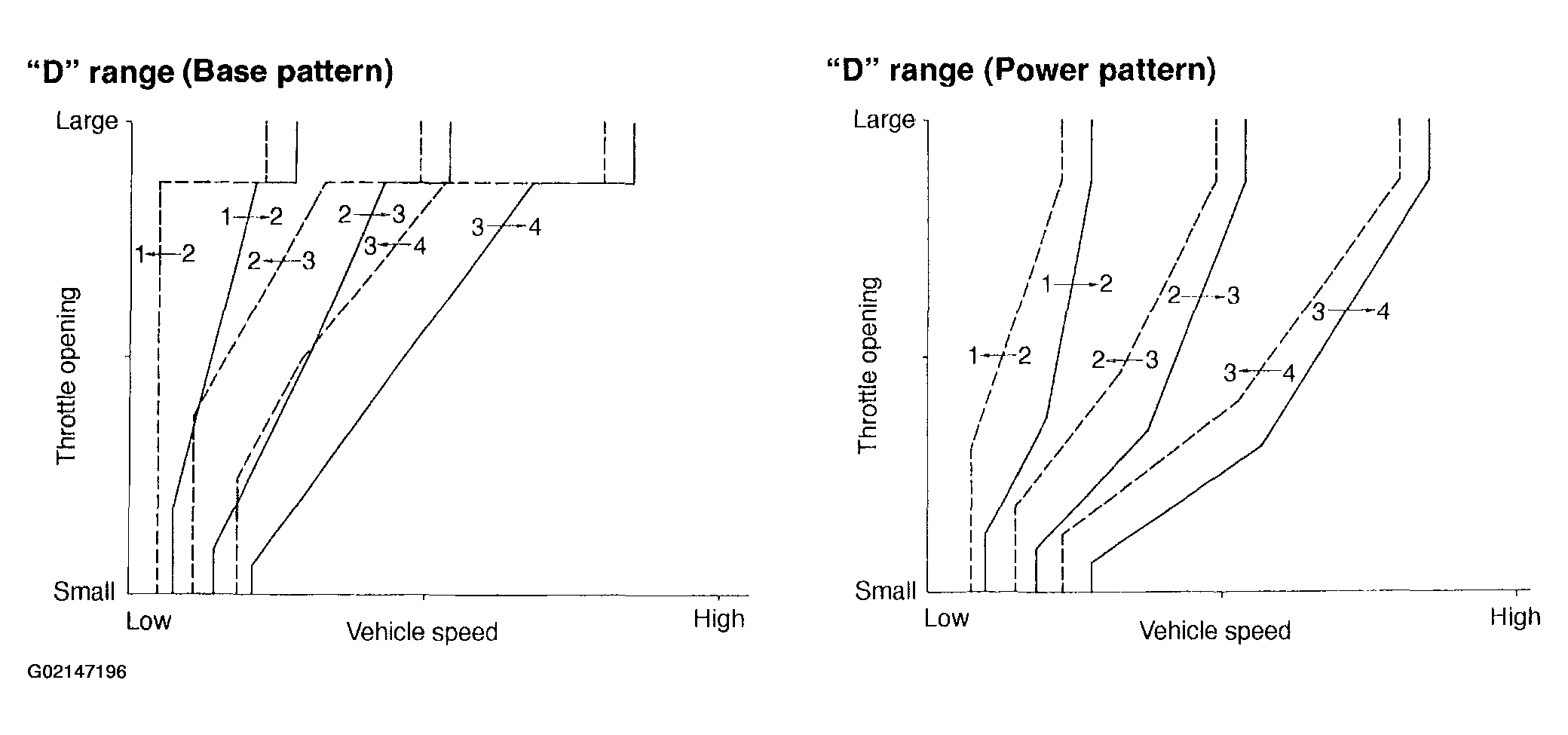

Fig 2: Shift Pattern Select Control Chart (2 Of 2)
