Removal And Installation

  1. Disconnect battery ground cable.

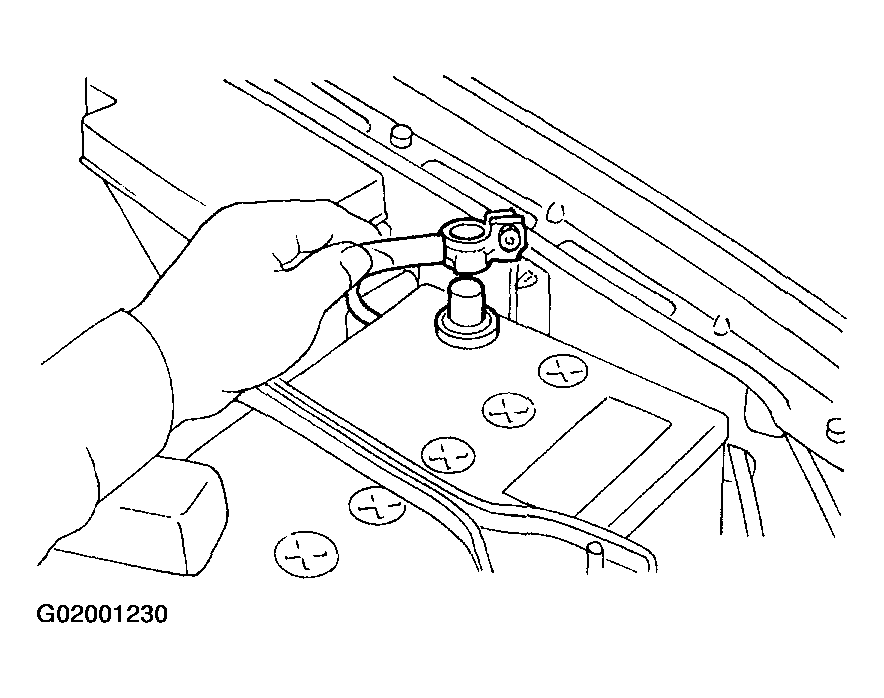

    Fig 1: Disconnecting Battery Ground Cable
    G02001230
  2. Remove side sill front cover.

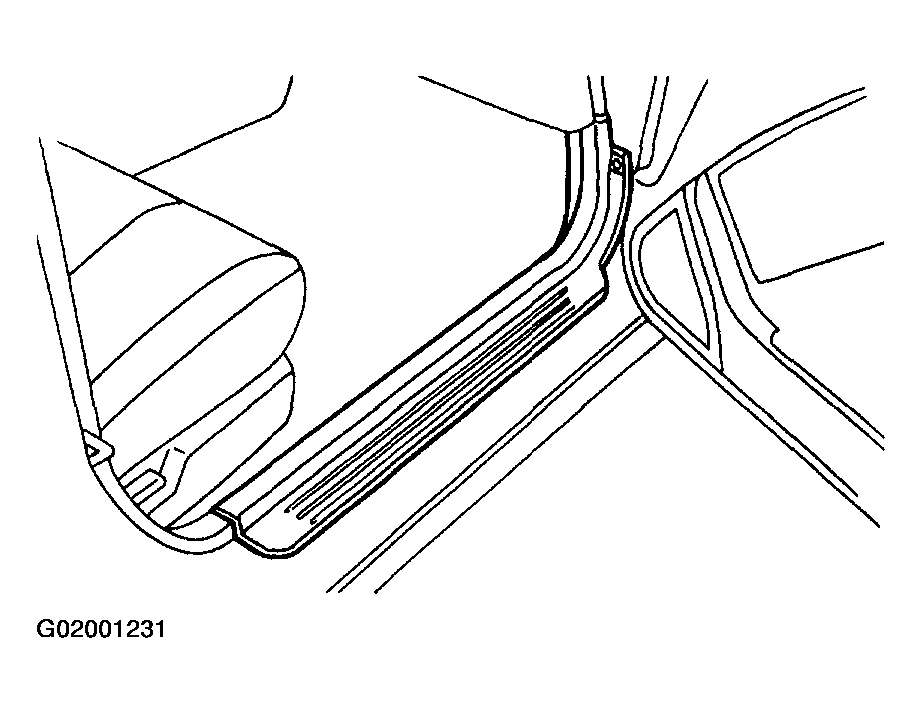

    Fig 2: Removing Side Sill Front Cover
    G02001231
  3. Detach floor mat of front passenger seat.

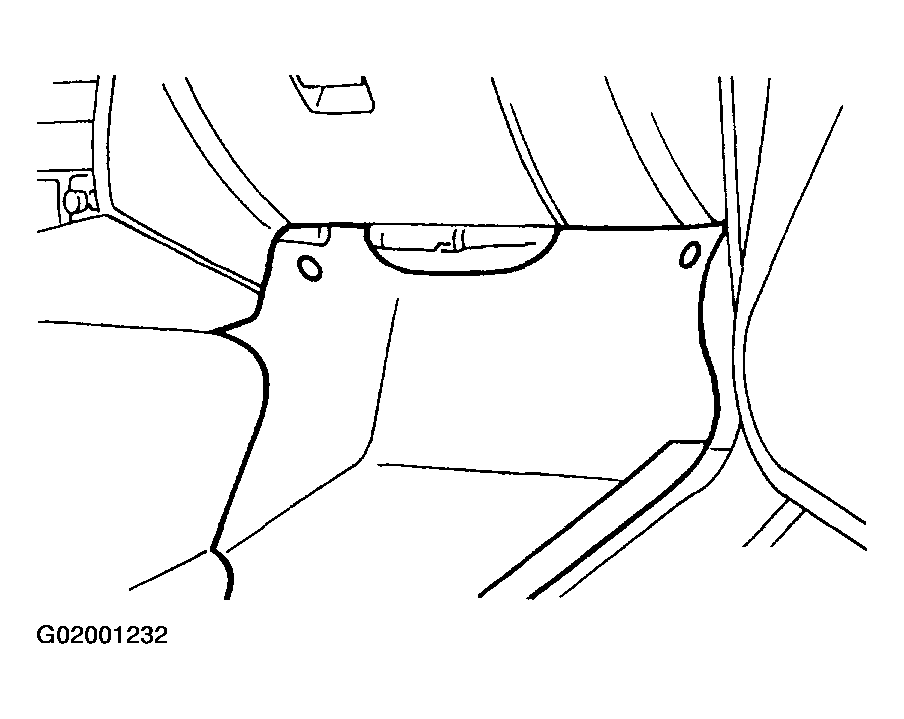

    Fig 3: Detaching Floor Mat Of Front Passenger Seat
    G02001232
  4. Remove protect cover.

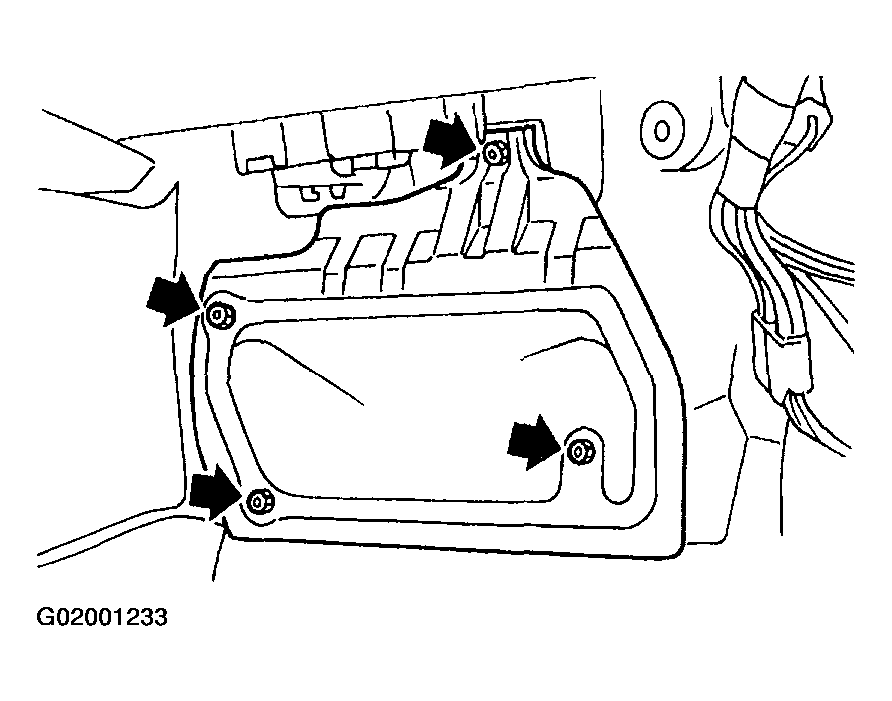

    Fig 4: Removing Protect Cover
    G02001233
  5. Remove nuts which hold ECM to bracket.

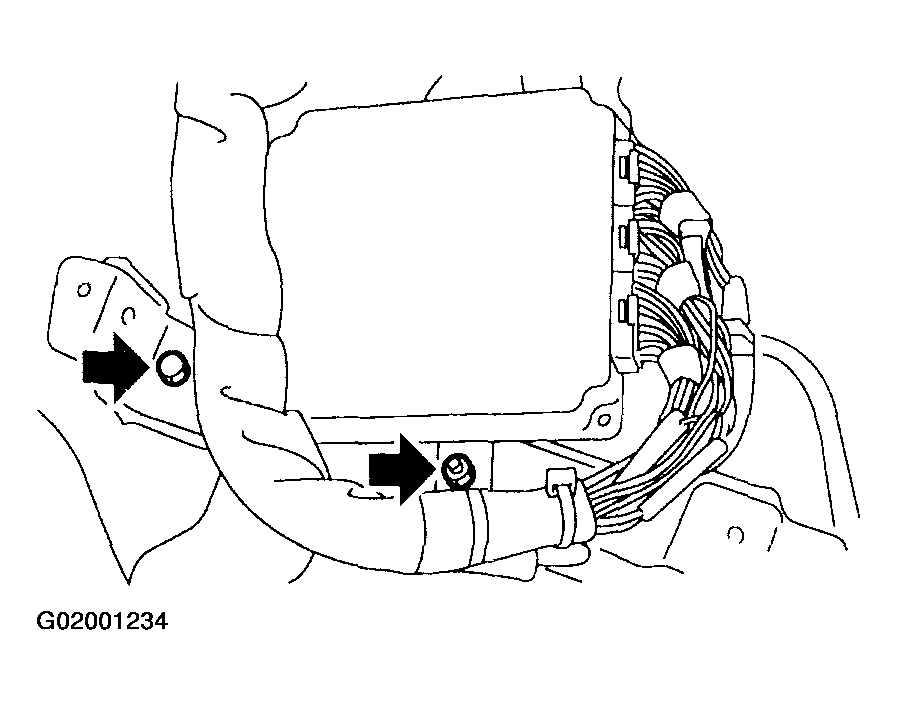

    Fig 5: Removing Nuts Which Hold ECM To Bracket
    G02001234
  6. Remove clip from bracket.

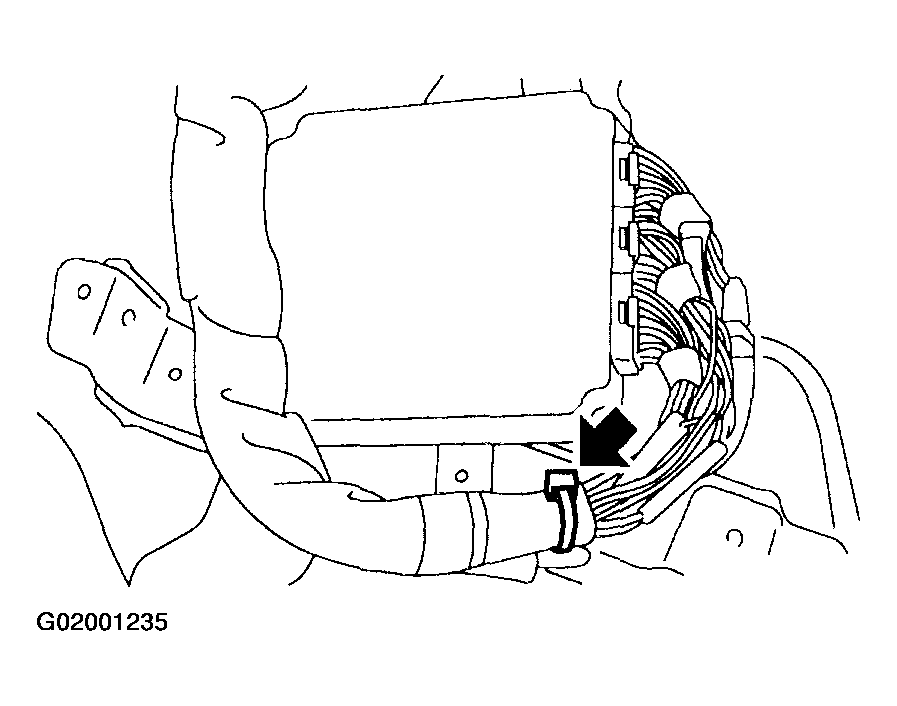

    Fig 6: Removing Clip From Bracket
    G02001235
  7. Disconnect ECM connectors.

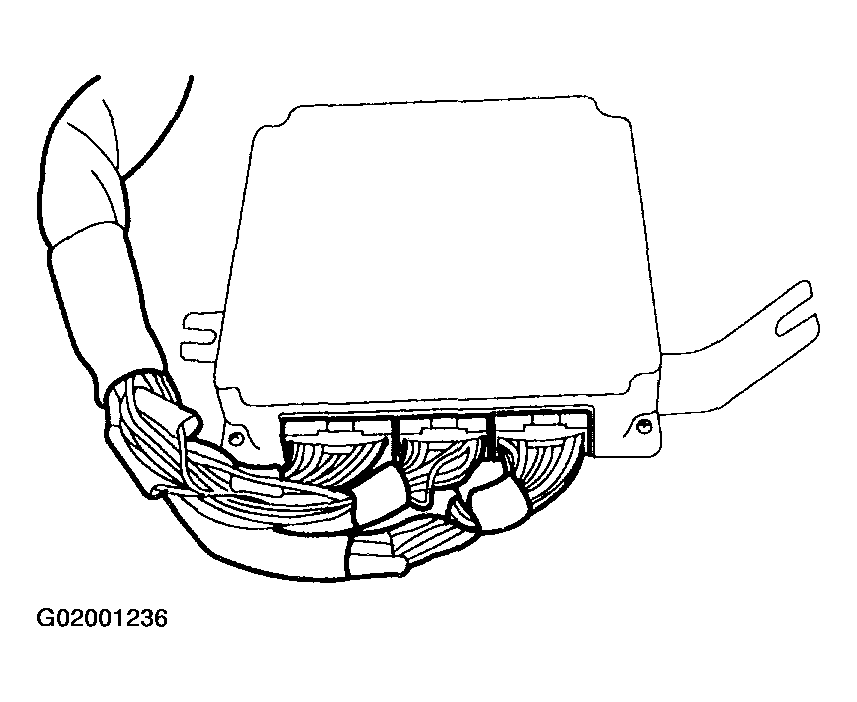

    Fig 7: Disconnecting ECM Connectors
    G02001236
  8. Take out ECM.

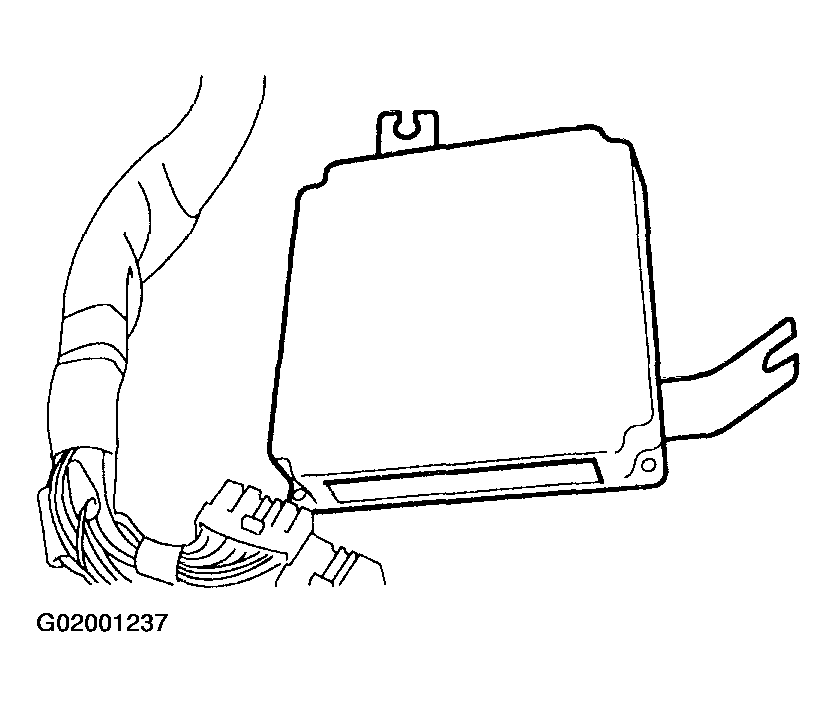

    Fig 8: Removing ECM
    G02001237
  9. Install in the reverse order of removal.
    CAUTION: When replacing ECM, be careful not to use the wrong specification. ECM to avoid any damage to the fuel injection system.
