General Diagnostic Table

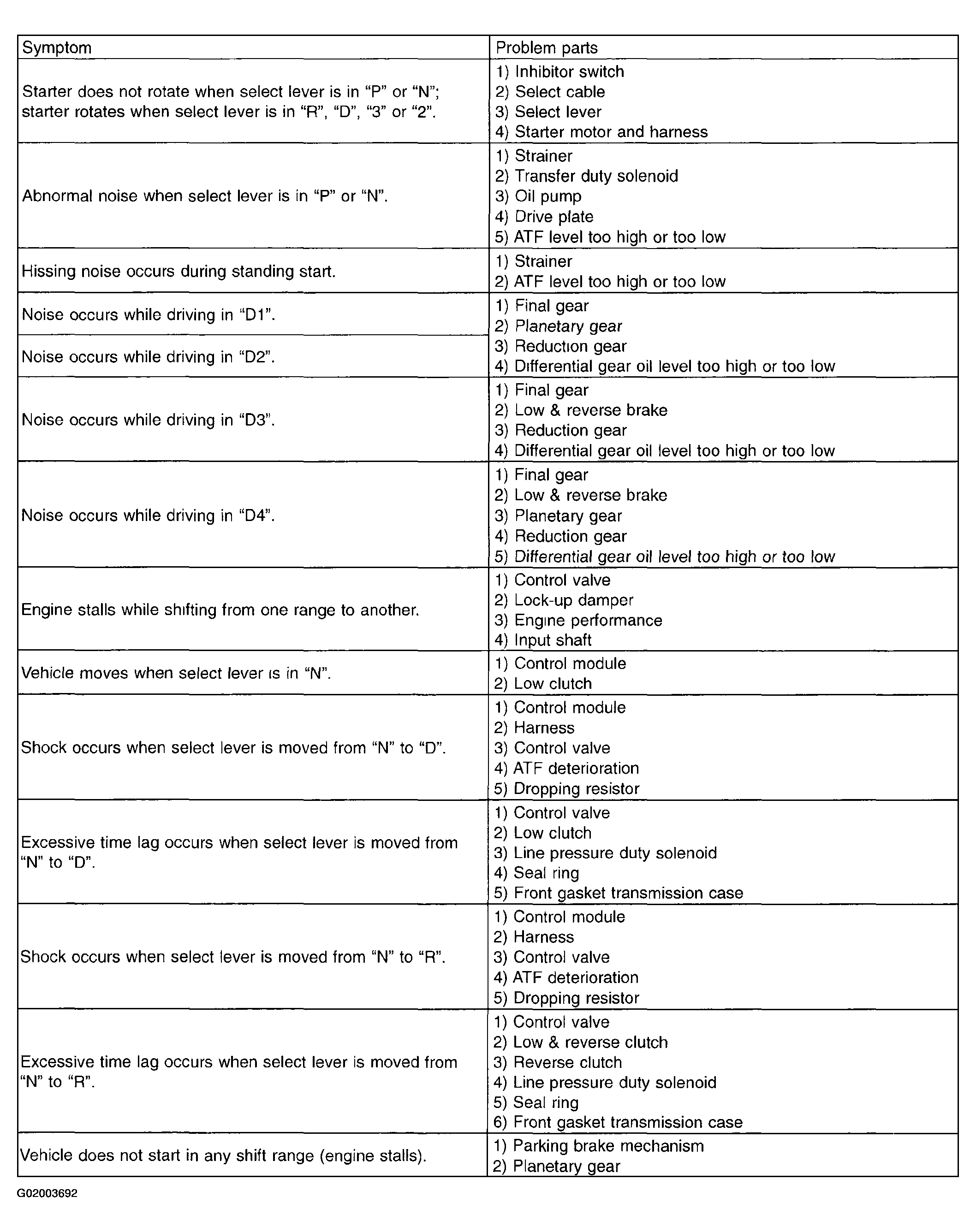

Fig 1: General Diagnostic Table (1 Of 5)

G02003692

Fig 2: General Diagnostic Table (2 Of 5)

G02003693

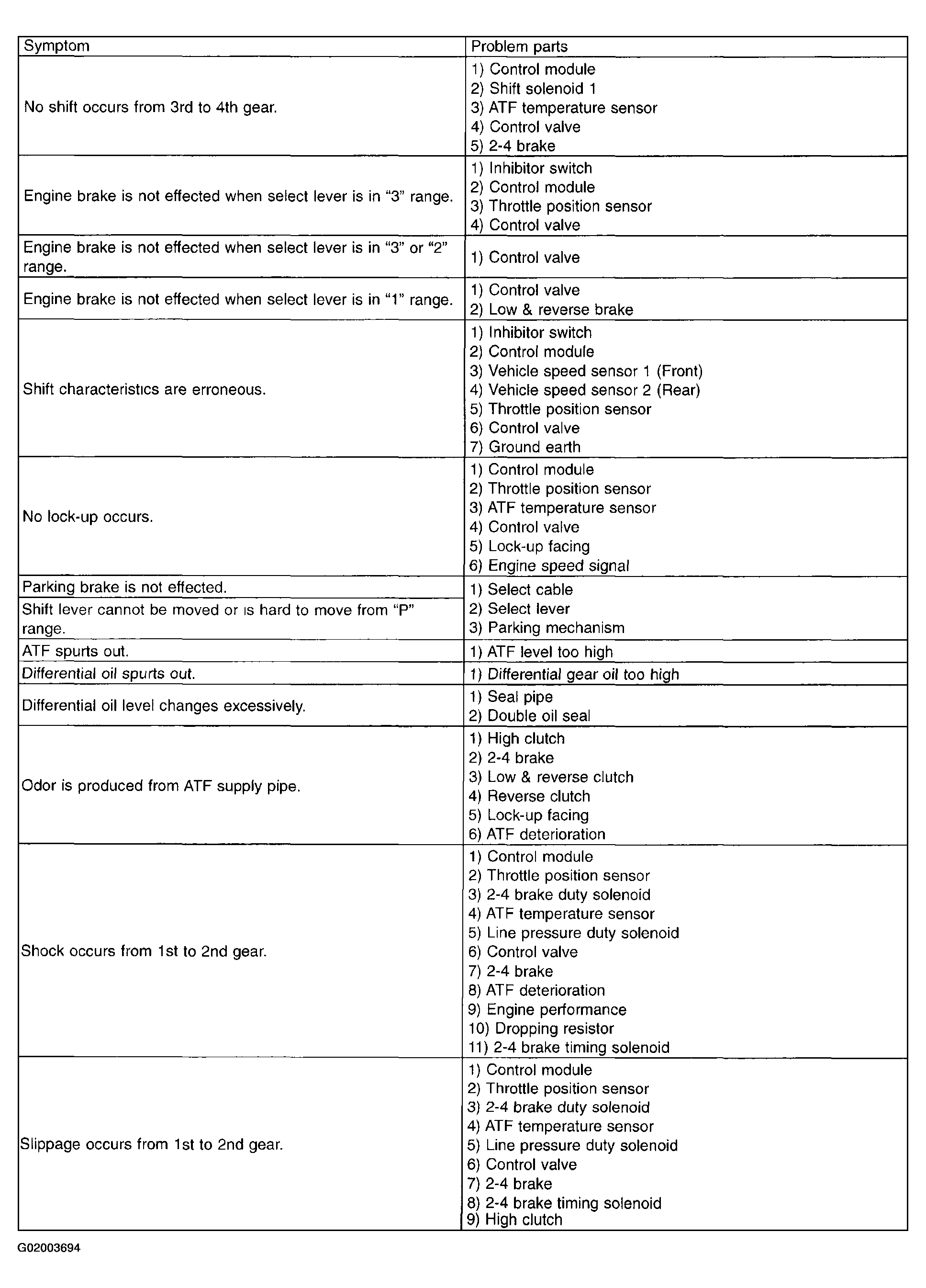

Fig 3: General Diagnostic Table (3 Of 5)

G02003694

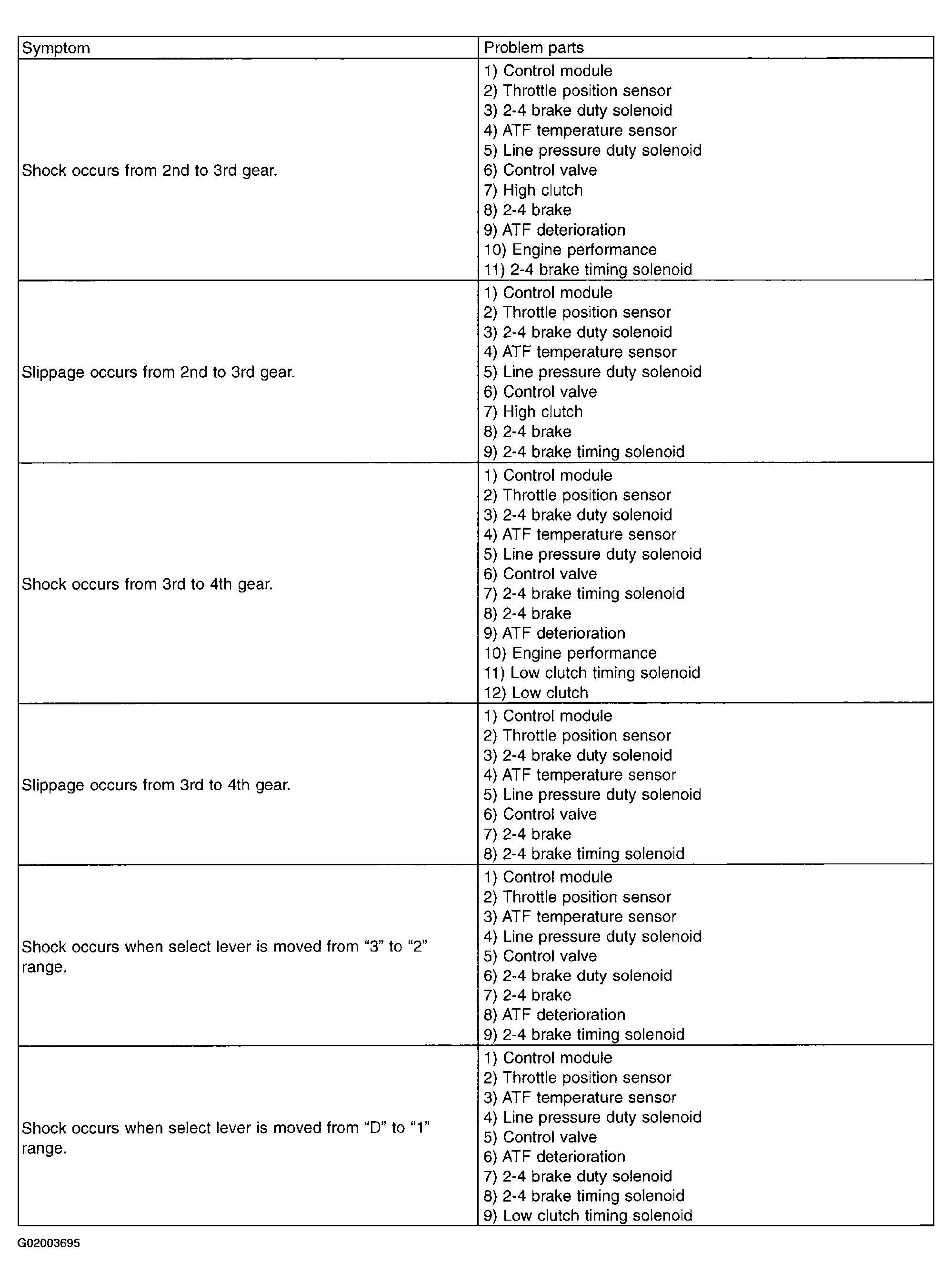

Fig 4: General Diagnostic Table (4 Of 5)

G02003695

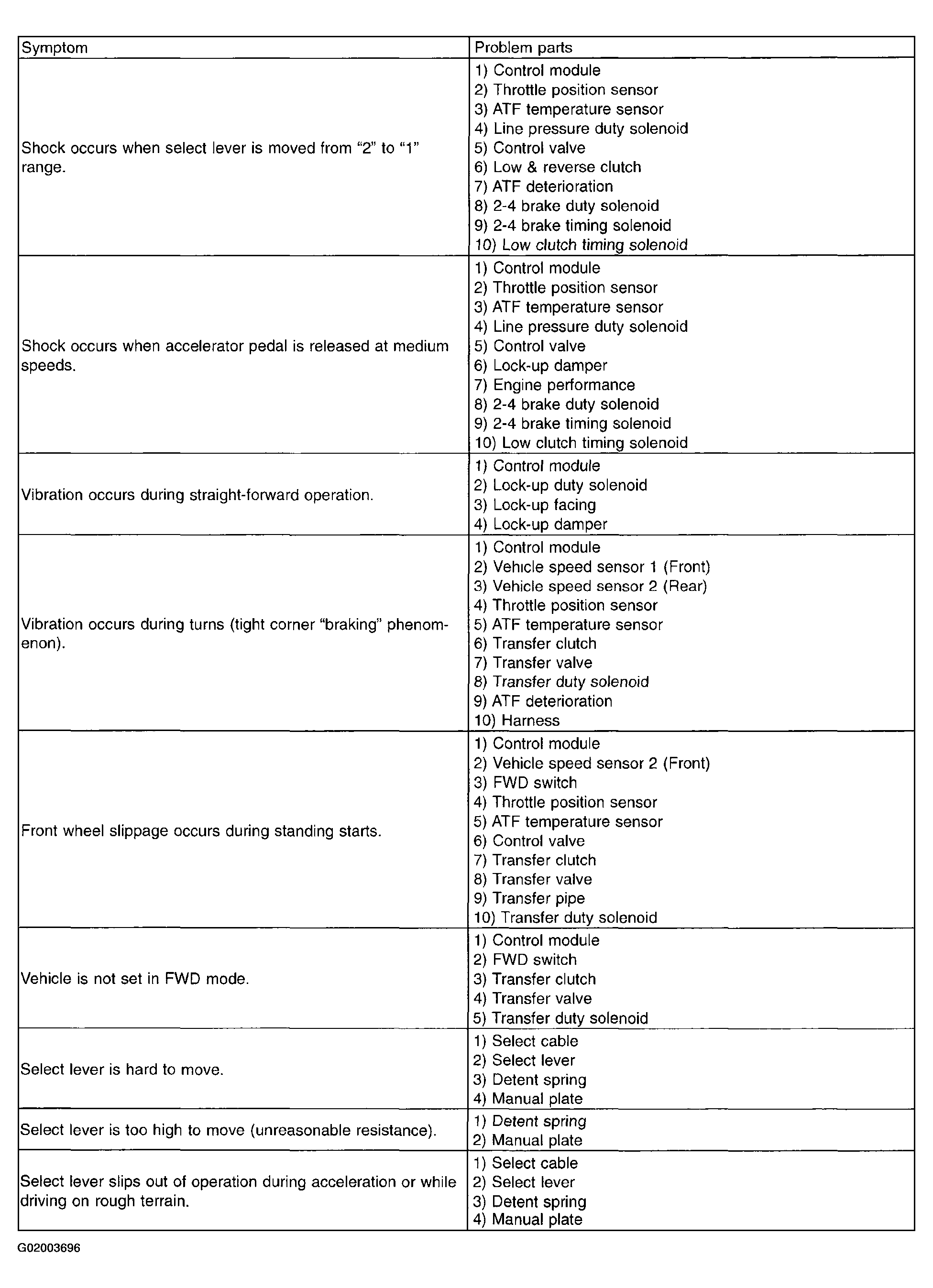

Fig 5: General Diagnostic Table (5 Of 5)

G02003696
