Removal And Installation

Disconnect battery ground cable.

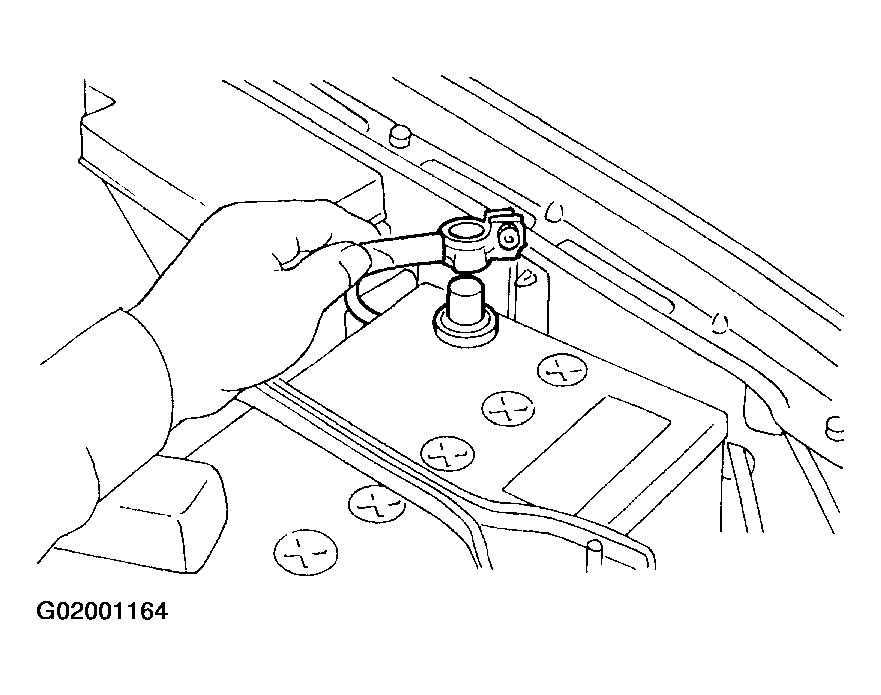

Fig 1: Disconnecting Battery Ground Cable
Disconnect connector from throttle position sensor.

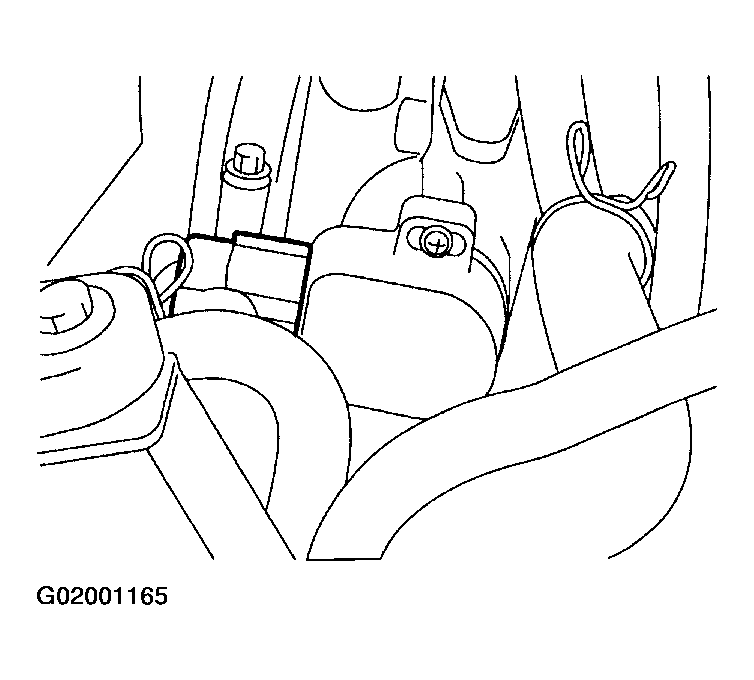

Fig 2: Disconnecting Connector From Throttle Position Sensor
Remove throttle position sensor holding screws, and remove it.

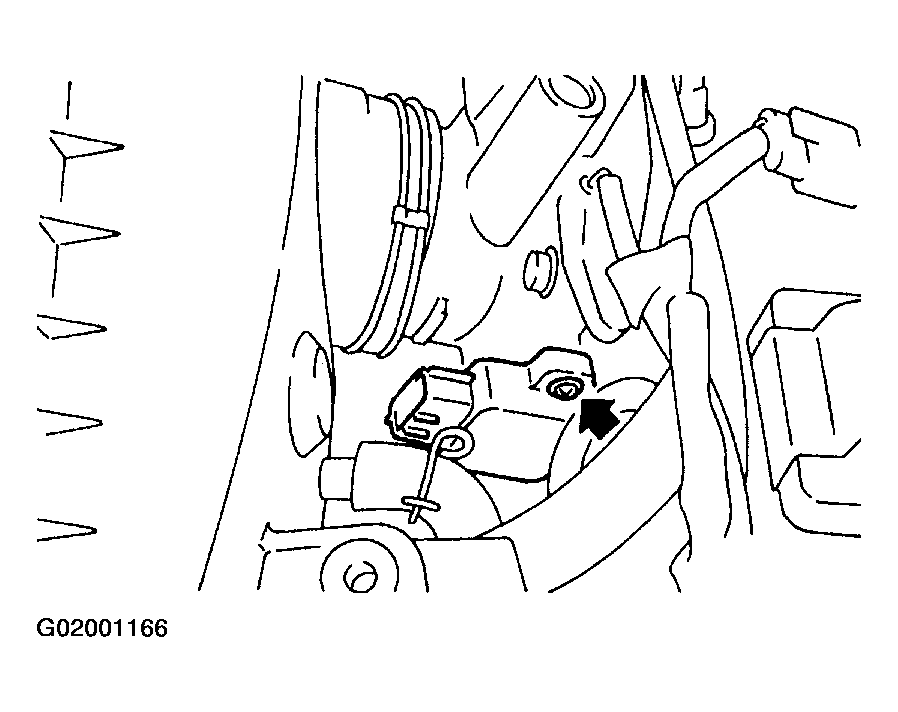

Fig 3: Removing Throttle Position Sensor Holding Screws
Install in the reverse order of removal.
Tightening torque:
1. 2.2+/-0.2 N.m (0.22+/-0.02 kg-m, 1.6+/-0.1 ft-lb)
CAUTION: When installing throttle position sensor, adjust to the specified data.

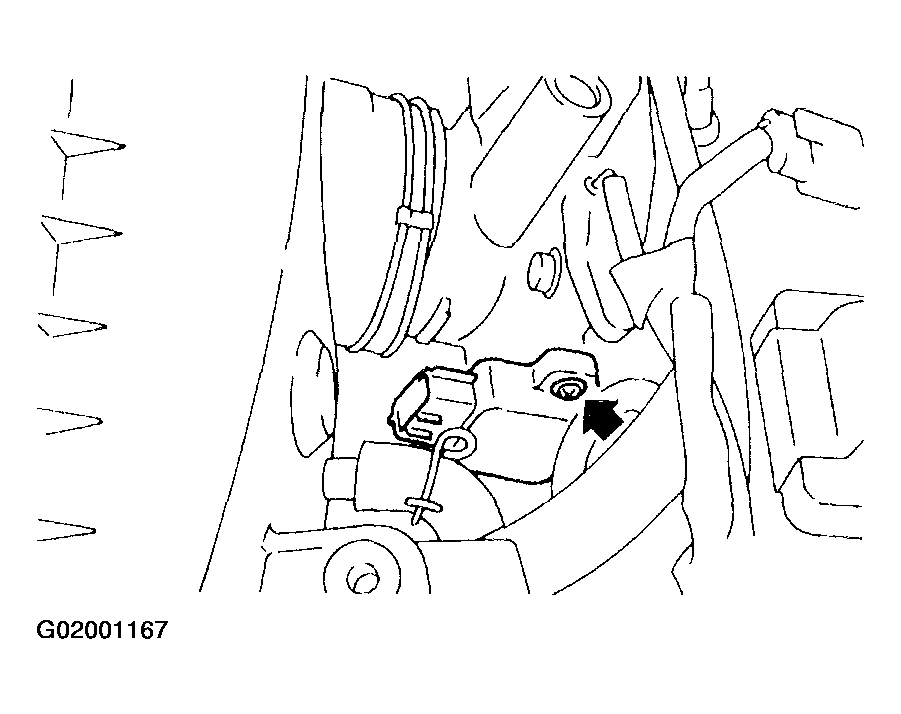

Fig 4: Tightening Fasteners To Specification After Adjustment
