Reduction Gear

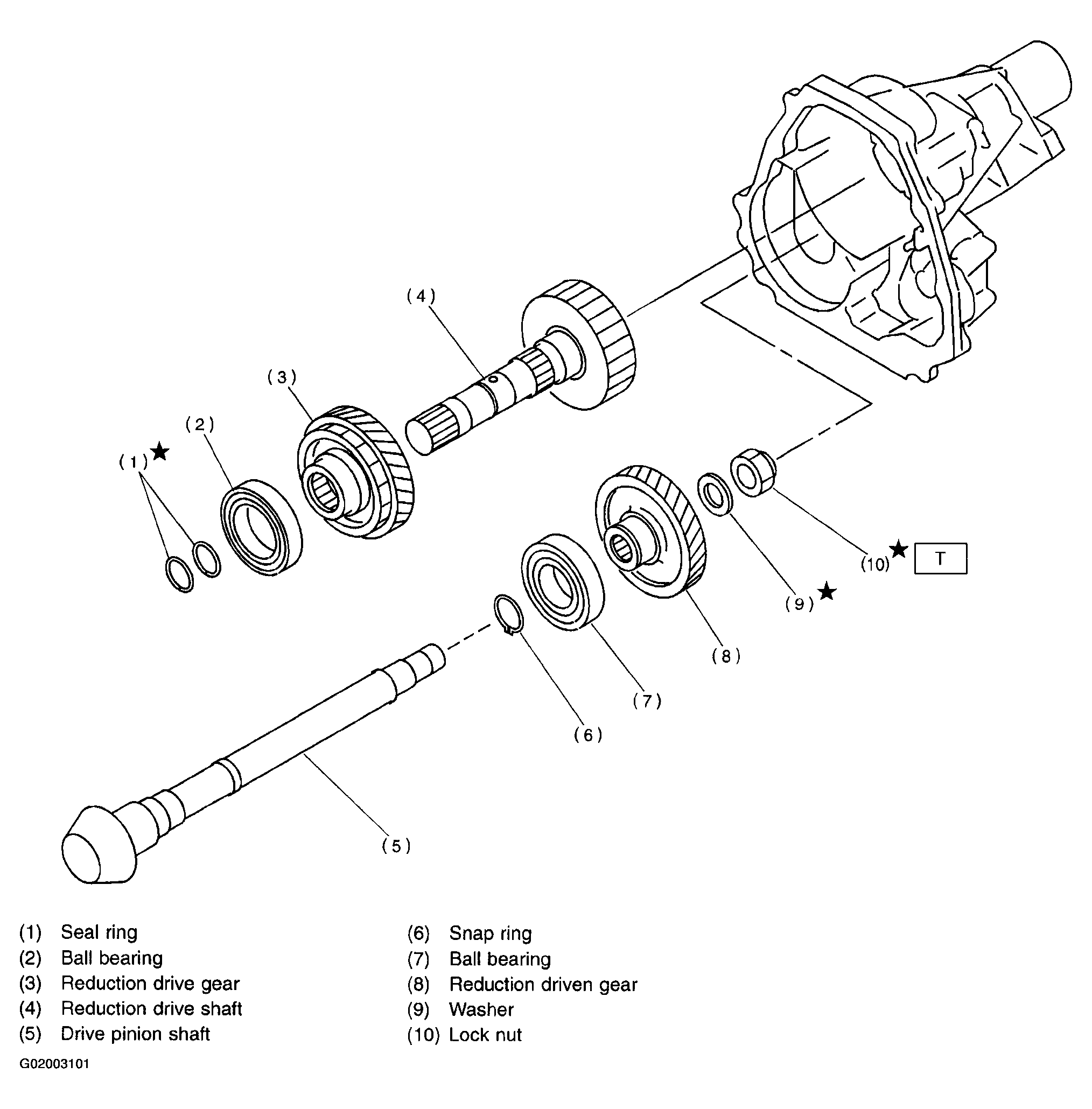

Fig 1: Identifying Reduction Gear Components
Tightening torque: N.m (kg-m, ft-lb)
T:
100+/-5 (10.2+/-0.5, 73.8+/-3.6)
