Transmission Case And Control Device

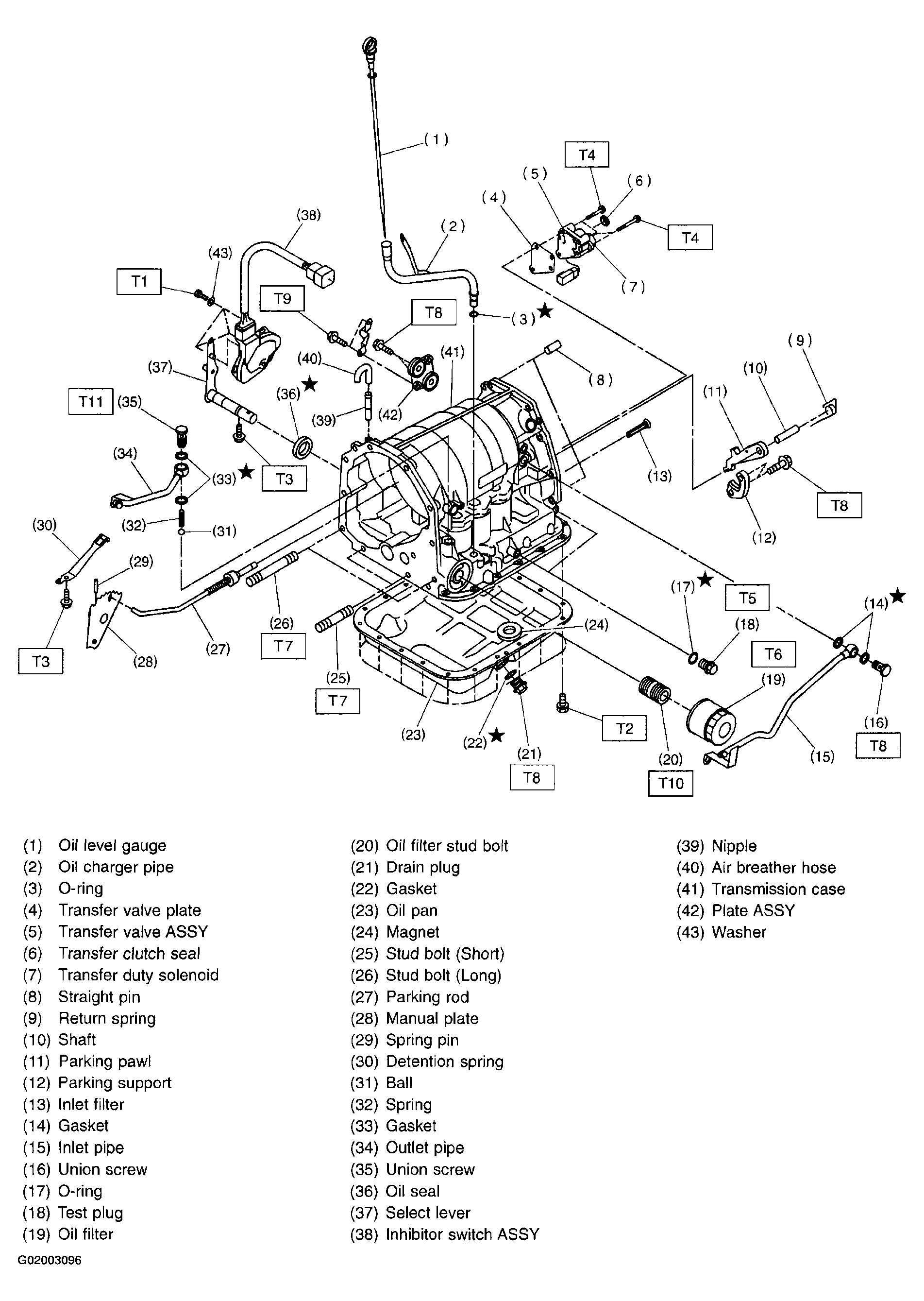

Fig 1: Identifying Transmission Case & Control Device Components

Tightening torque: N.m (kg-m, ft-lb)

T1:  3.4+/-0.5 (0.35+/-0.05, 2.5+/-0.4)

T2:  4.9+/-0.5 (0.50+/-0.05, 3.6+/-0.4)

T3:  6+/-1 (0.6+/-0.1, 4.3+/-0.7)

T4:  8+/-1 (0.8+/-0.1, 5.8+/-0.7)

T5:  13+/-1 (1.3+/-0.1, 9.4+/-0.7)

T6:  13.7+/-2.0 (1.4+/-0.2, 10.1+/-1.4)

T7:  18+/-3 (1.8+/-0.3, 13.0+/-2.2)

T8:  25+/-2 (2.5+/-0.2, 18.1+/-1.4)

T9:  33+/-10 (3.3+/-1.0, 24+/-7)

T10:  24.5+/-2.9 (2.5+/-0.3, 18.1+/-2.2)

T11:  44+/-4 (4.5+/-0.4, 32.5+/-2.9)
