Differential Case Assembly: Disassembly

Using a press and ST, remove the taper roller bearing.
ST 498077000 REMOVER

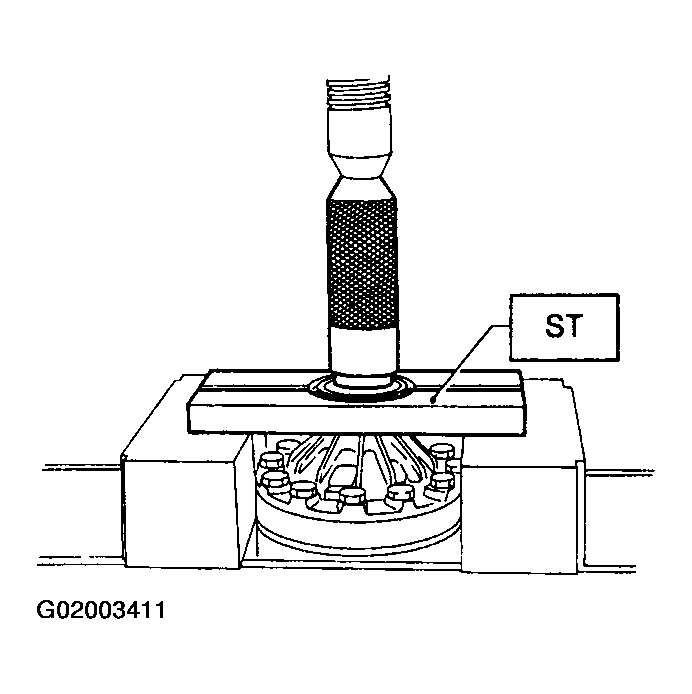

Fig 1: Removing Taper Roller Bearing Using A Press & (ST)
Secure the case in a vise and remove the crown gear tightening bolts, then separate the crown gear, case (RH) and case (LH).

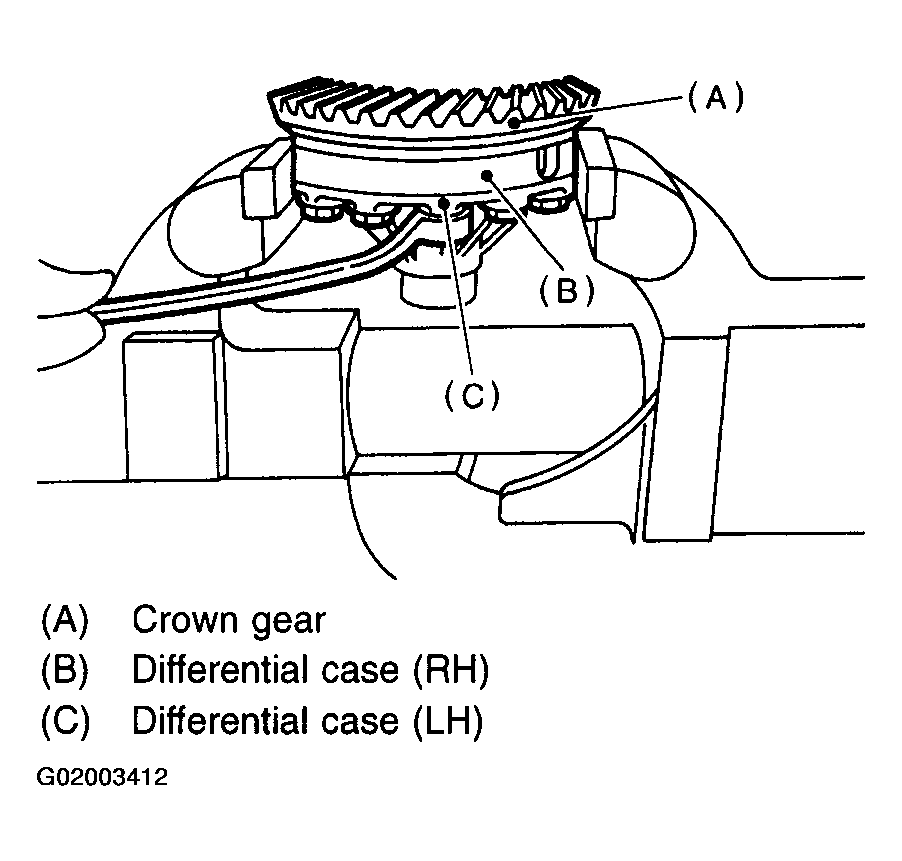

Fig 2: Removing Crown Gear
Pull out the straight pin and shaft, and remove the differential bevel gear, washer, and differential bevel pinion.

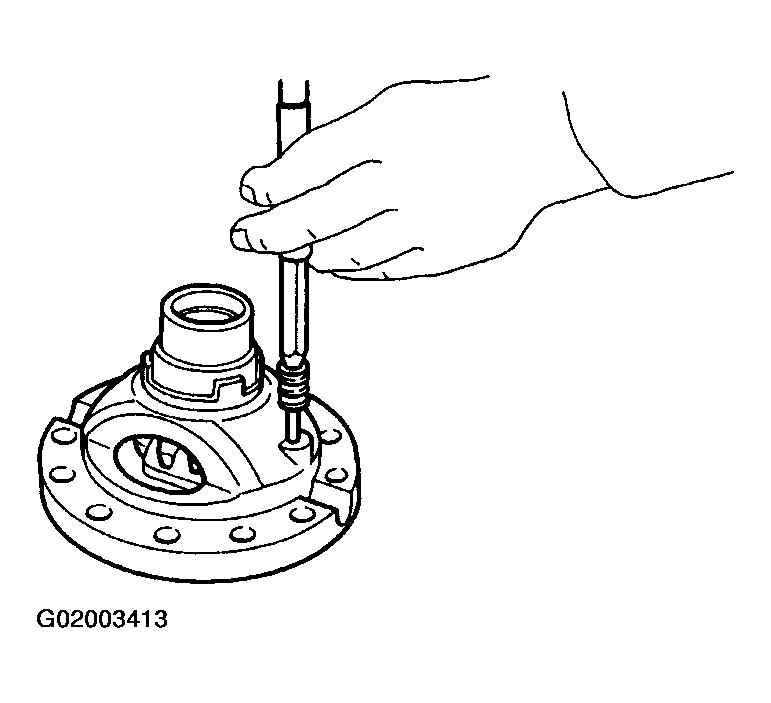

Fig 3: Removing Straight Pin
