Inhibitor Switch: Inspection

When driving condition or starter motor operation is erroneous, first check the shift linkage for improper operation. If the shift linkage is functioning properly, check the inhibitor switch.

1. Disconnect inhibitor switch connector.
2. Check continuity in inhibitor switch circuits with select lever moved to each position.
   CAUTION: Also check that continuity in ignition circuit does not exist when select lever is in R, D, 3, 2 and 1 ranges.
   NOTE: If inhibitor switch is inoperative, check for poor contact of connector on transmission side.

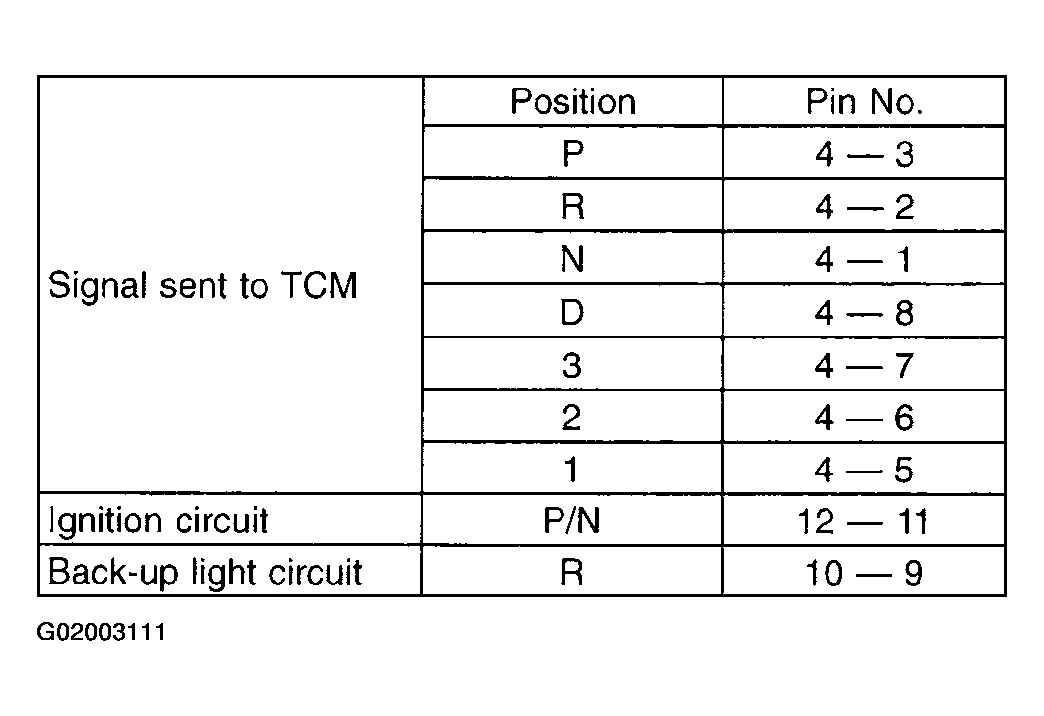

   Fig 1: Identifying Inhibitor Switch Circuits

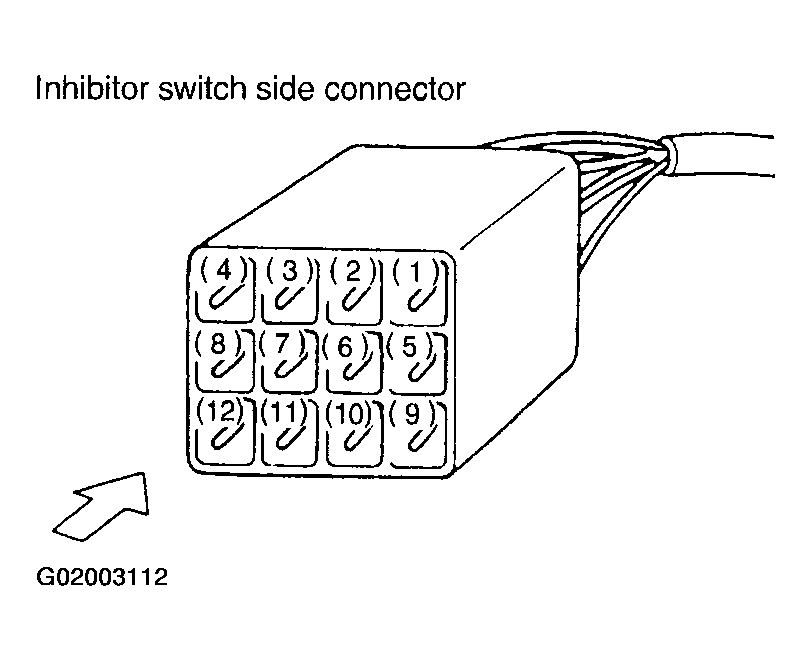

   Fig 2: Identifying Inhibitor Switch Side Connector & Terminals


3. Check if there is continuity at equal points when the select lever is turned 1.5° in both directions from the N range.

   If there is continuity in one direction and the continuity in the other or if there is continuity at unequal points, adjust the select cable. See SELECT CABLE .

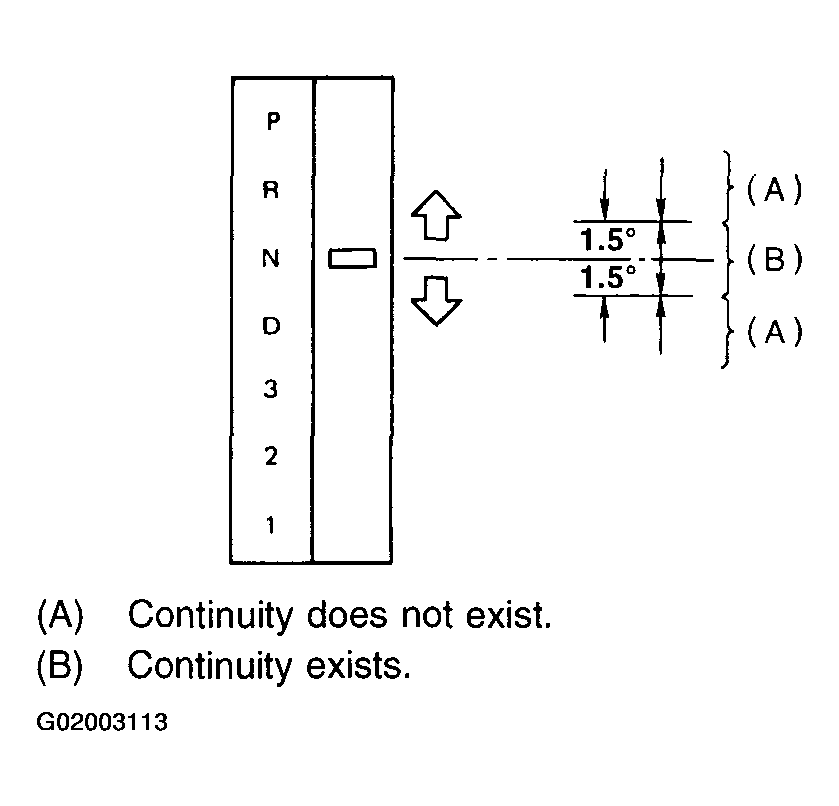

   Fig 3: Checking Continuity At Equal Points


4. Repeat the above checks. If there are any abnormalities, adjust inhibitor switch. See ADJUSTMENT  .
