Inhibitor Switch: Installation

Install inhibitor switch to transmission case.

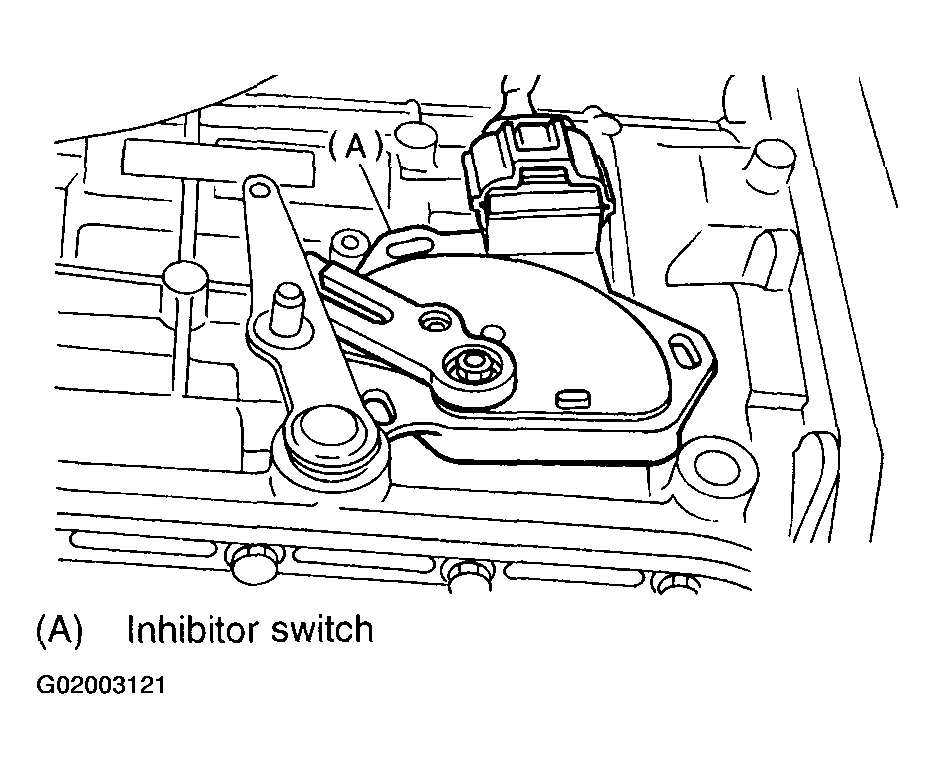

Fig 1: Installing Inhibitor Switch To Transmission Case
Move range select lever to neutral position.
Using ST, tighten bolts of inhibitor switch. See Adjustment .
ST 499267300 STOPPER PIN

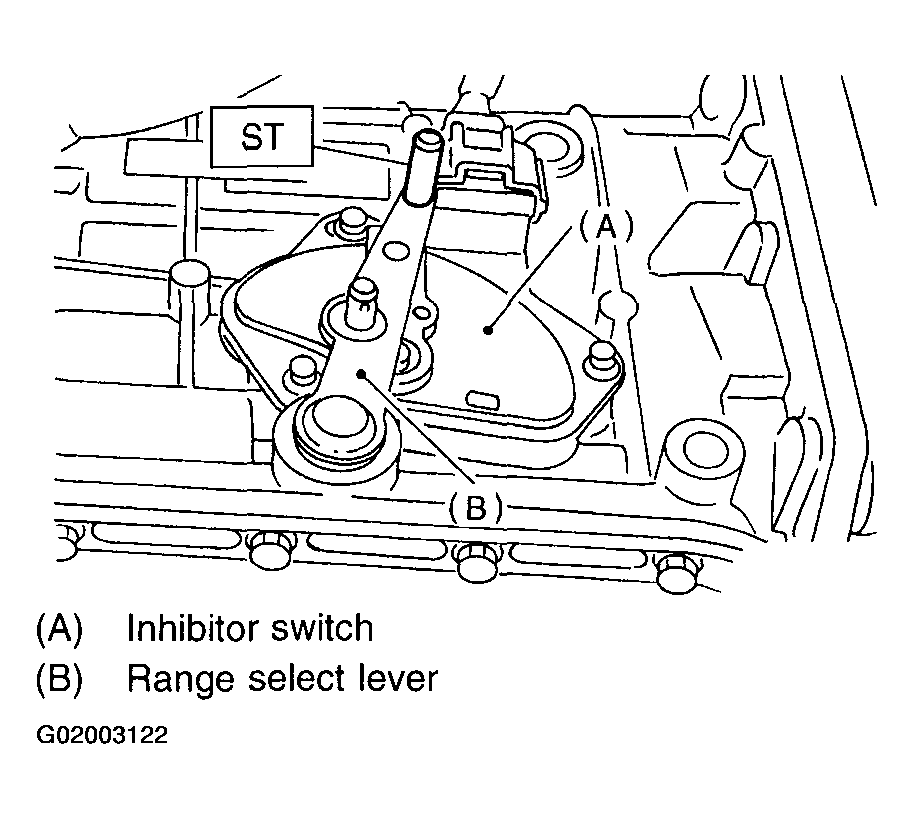

Fig 2: Identifying Inhibitor Switch & Range Select Lever
Install select cable to range select lever.
Install plate assembly to transmission.
Tightening torque:

T: 24.5+/-2.0 N.m (2.5+/-0.2 kg-m, 18.1+/-1.4 ft-lb)

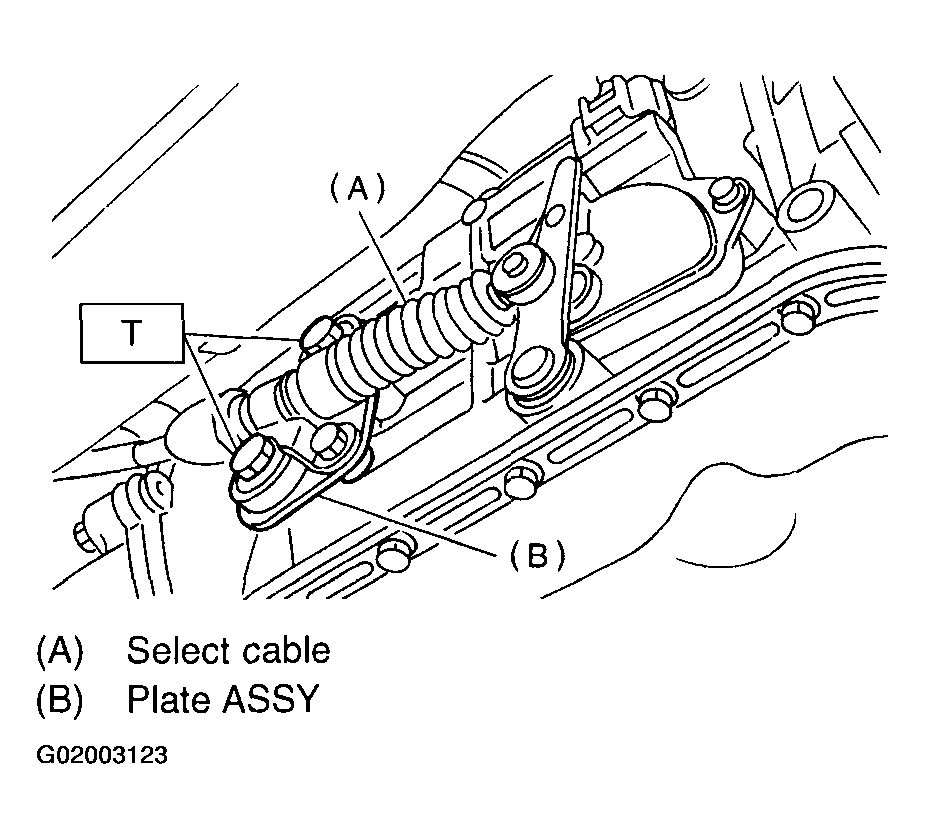

Fig 3: Installing Select Cable To Range Select Lever
Install snap pin to range select lever.

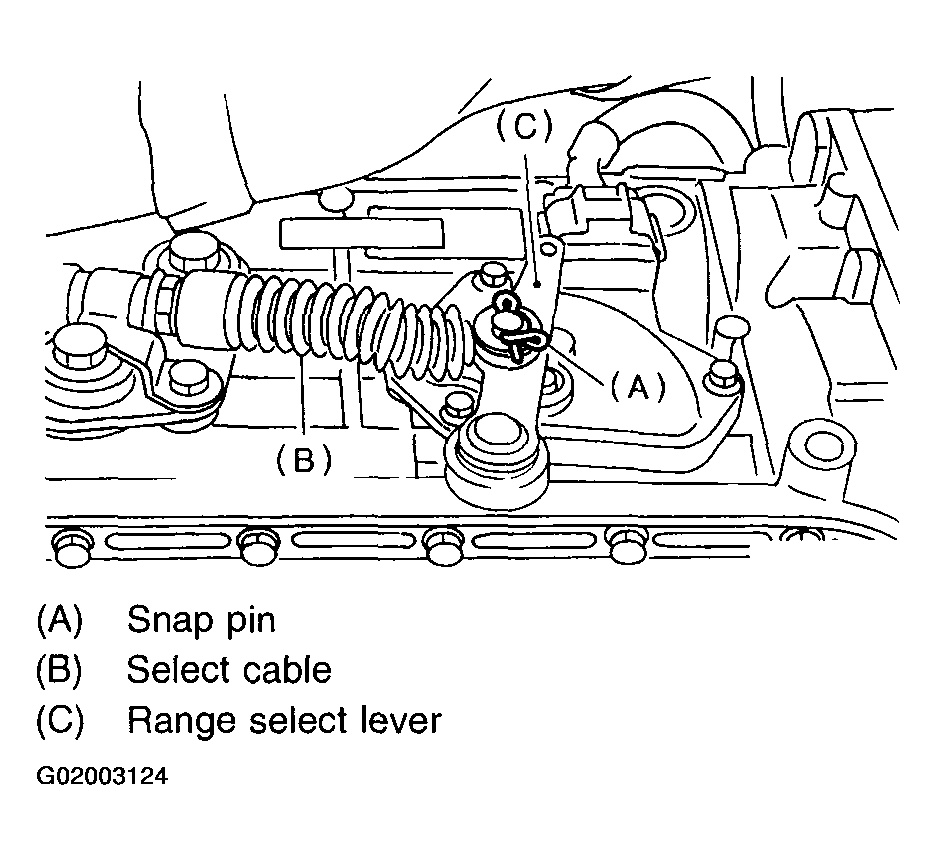

Fig 4: Installing Snap Pin To Range Select Lever
Install front exhaust pipe.
Connect inhibitor switch connector.

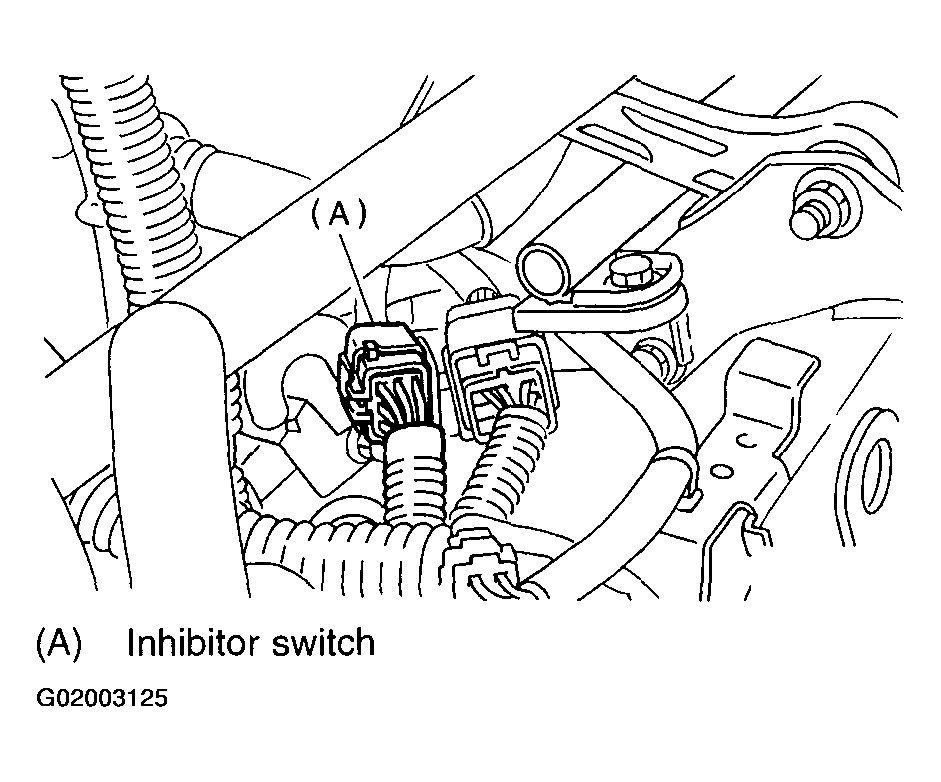

Fig 5: Identifying Inhibitor Switch Connector
Install air cleaner case and duct.
