Inhibitor Switch: Removal

  1. Move select lever to neutral position.
  2. Remove air cleaner case and duct.
  3. Disconnect inhibitor switch connector "A".

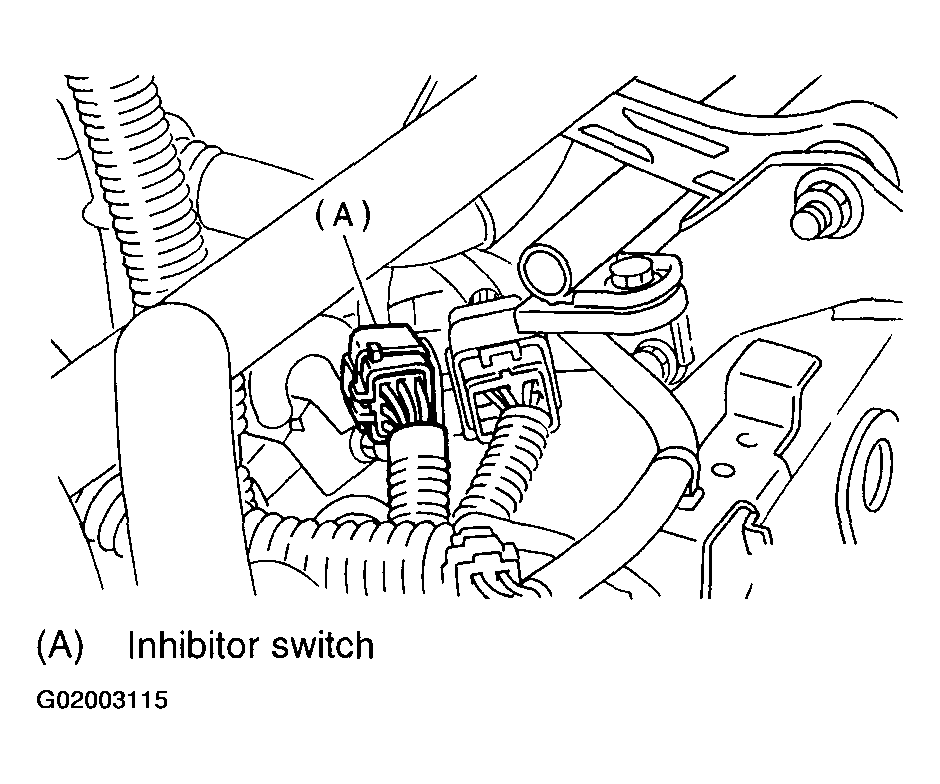

    Fig 1: Identifying Inhibitor Switch Connector "A"
    G02003115
  4. Remove front exhaust pipe.
  5. Remove snap pin from range select lever.
    Fig 2: Removing Snap Pin From Range Select Lever
    G02003116
  6. Remove plate assembly from transmission case.

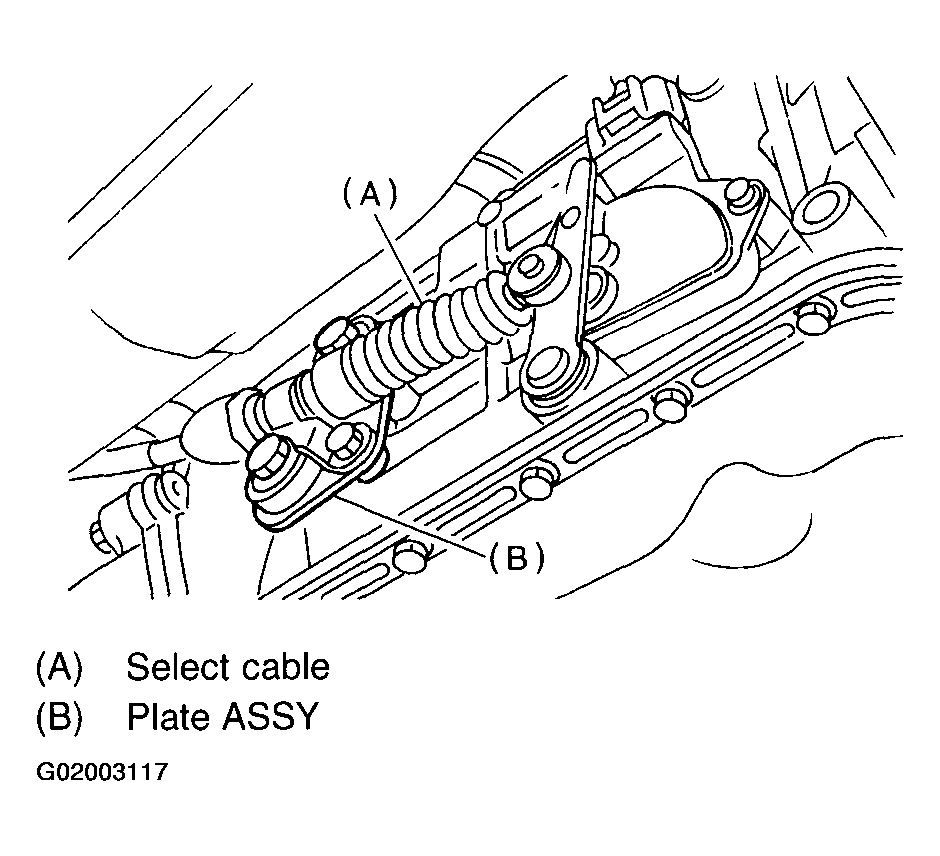

    Fig 3: Removing Plate Assembly From Transmission Case
    G02003117
  7. Remove bolts.

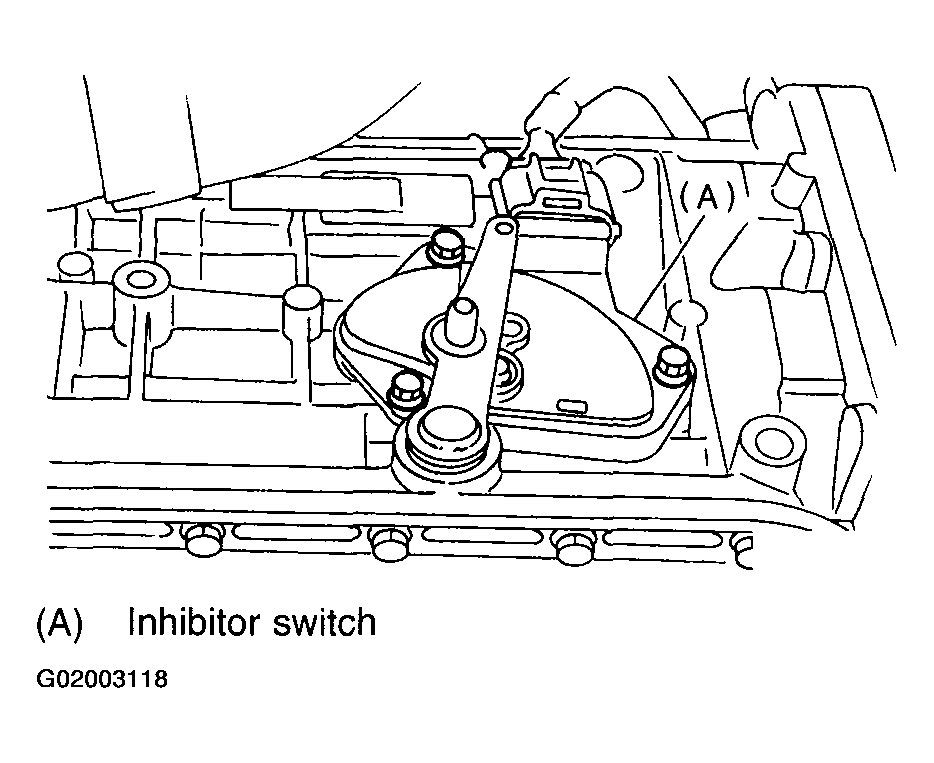

    Fig 4: Removing Bolts
    G02003118
  8. Move range select lever to parking position (left side).

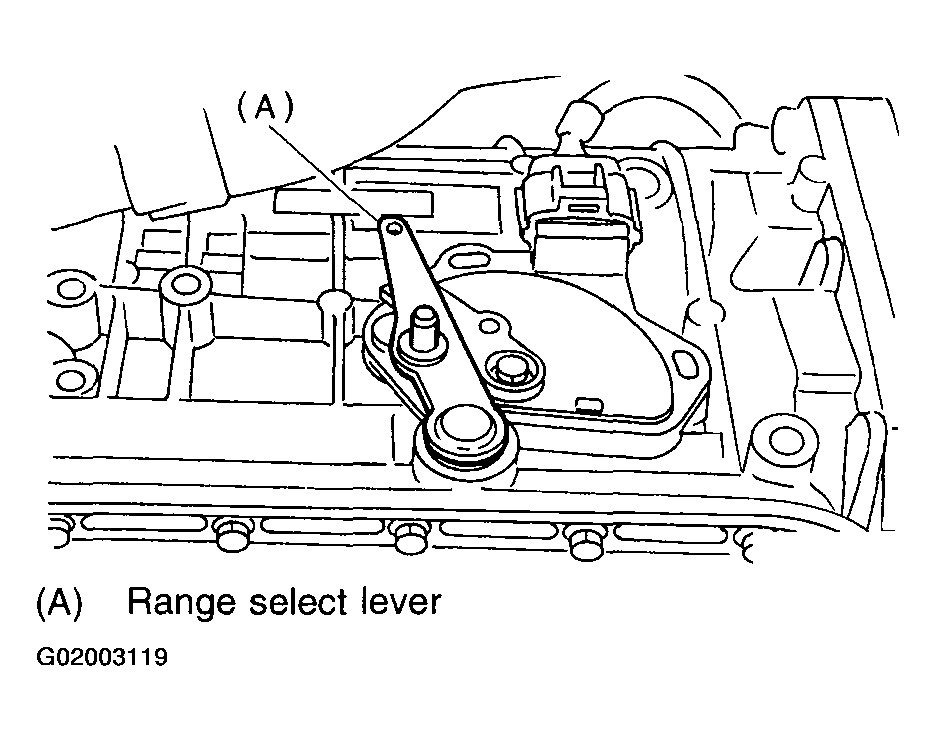

    Fig 5: Moving Range Select Lever To Parking Position (Left Side)
    G02003119
  9. Remove inhibitor switch from transmission.

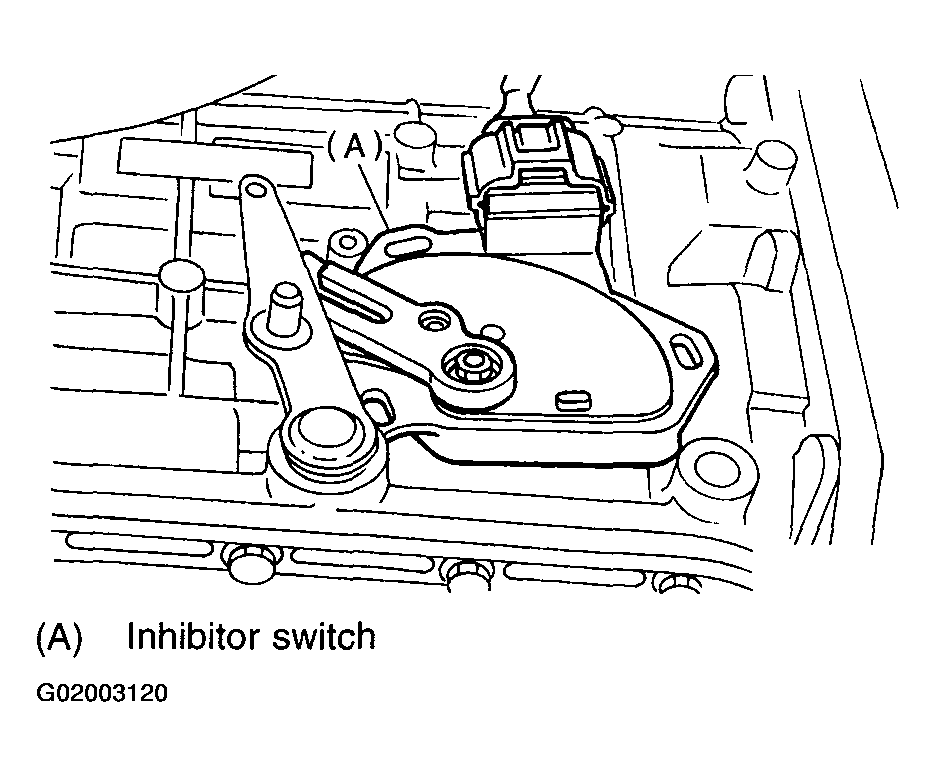

    Fig 6: Removing Inhibitor Switch From Transmission
    G02003120
